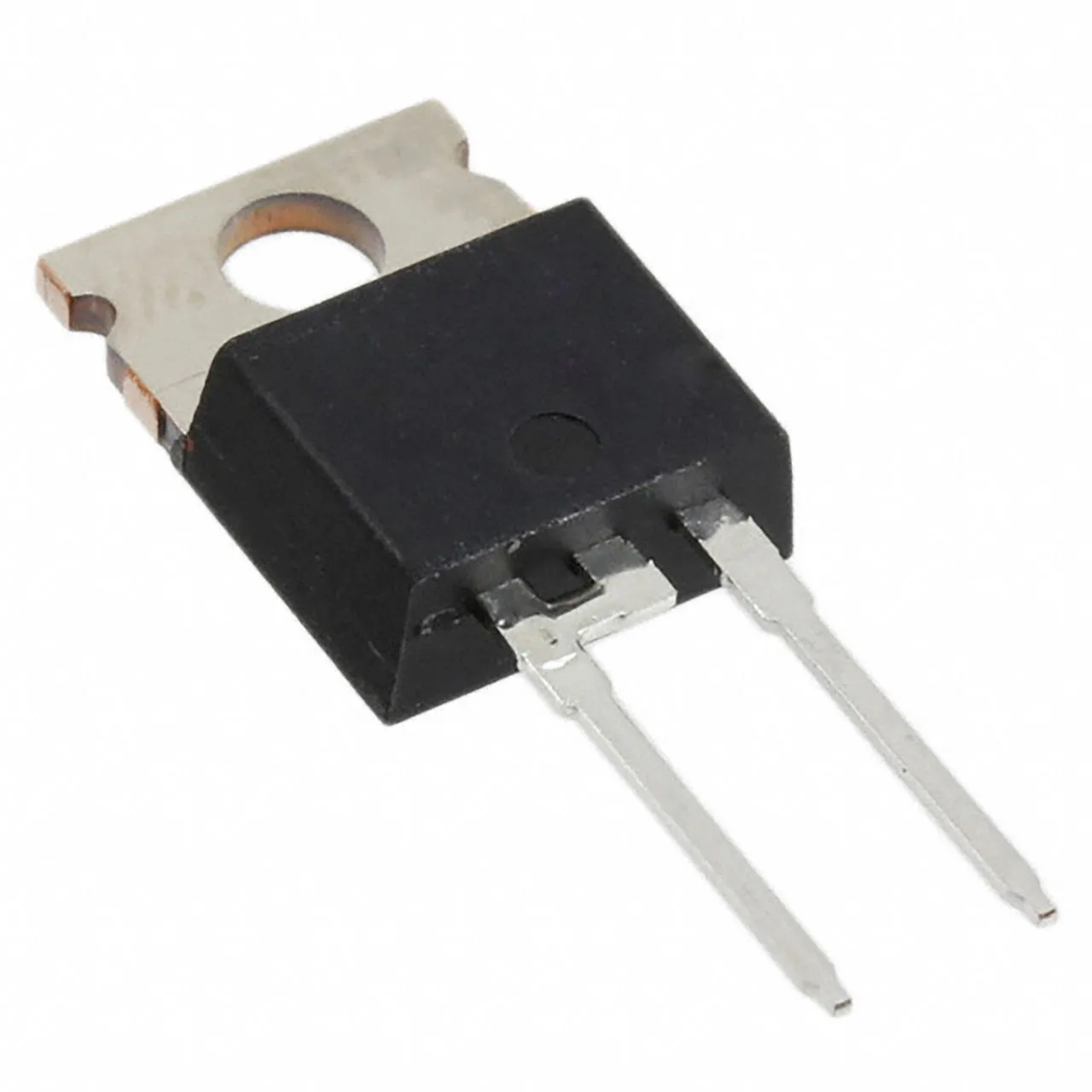

Schottky Diode 45V 10A Through Hole TO-220AC
Specifications
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io): 10 A
- Voltage - Forward (Vf) (Max) @ If: 570 mV @ 10 A
- Speed: Fast Recovery =< 500 ns, > 200 mA (Io)
- Reverse Recovery Time (trr): N/A
- Current - Reverse Leakage @ Vr: 100 µA @ 45 V
- Capacitance @ Vr, F: N/A
- Mounting Type: Through Hole
- Package: TO-220-2, TO-220AC
- Operating Temperature - Junction: -65°C to 150°C
- Base Number: MBR10
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io): 10 A
- Voltage - Forward (Vf) (Max) @ If: 570 mV @ 10 A
- Speed: Fast Recovery =< 500 ns, > 200 mA (Io)
- Reverse Recovery Time (trr): N/A
- Current - Reverse Leakage @ Vr: 100 µA @ 45 V
- Capacitance @ Vr, F: N/A
- Mounting Type: Through Hole
- Package: TO-220-2, TO-220AC
- Operating Temperature - Junction: -65°C to 150°C
- Base Number: MBR10
Product Identification
Family:MBR1060
Dimensions & Appearance
Mounting:Through Hole
Width:10.67 mm
Length:16.51 mm
Height:4.83 mm
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bag
Package:TO-220AC
Output
Average Rectified Output Current:10A
Features
Pins:2
Maximum Reverse Current:0.1mA
Repetitive Peak Reverse Voltage:45 V
Maximum Forward Voltage:0.57 V @ 10 A
Peak Non-Repetitive Surge Current:150A
Configuration:Single
Application:Schottky Diode
