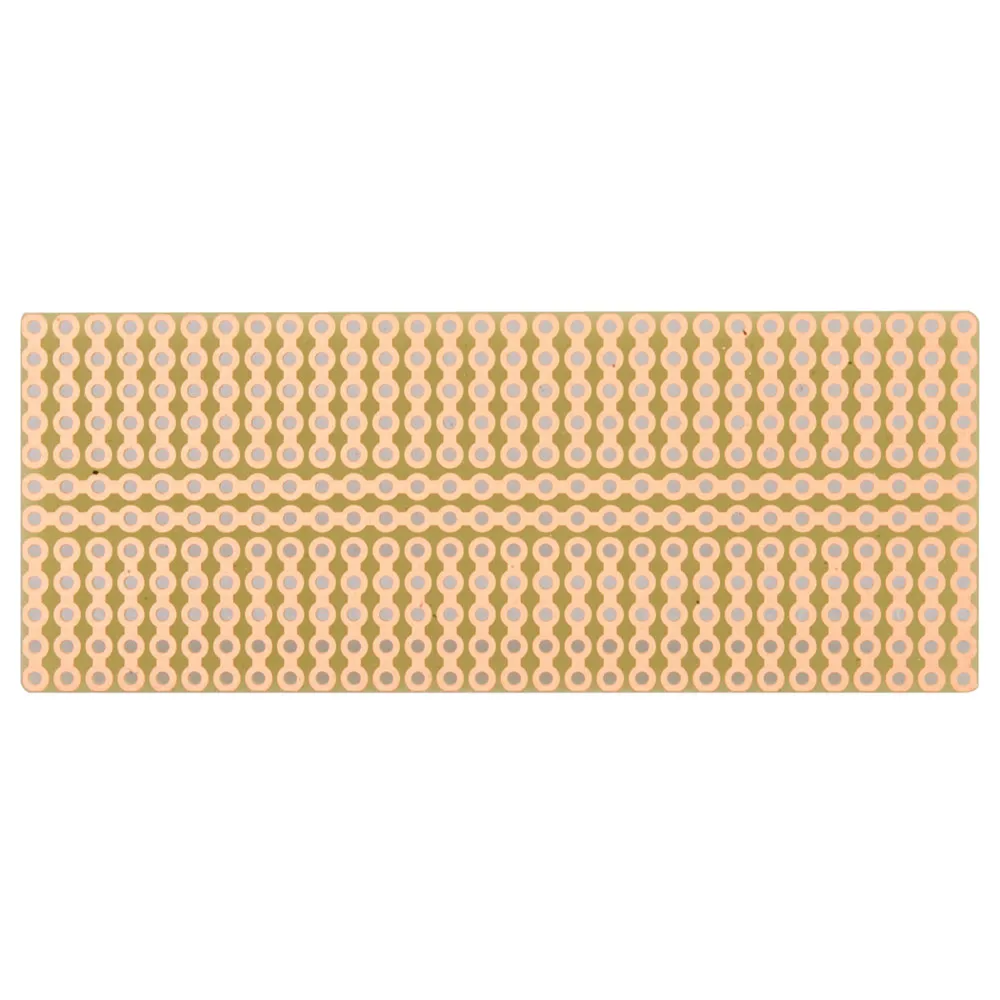

The SB300 Solderable PC BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout. The SB300 has the same pattern and spacing as a standard 300 connection point solderless plug-in breadboard. It has a standard 5-hole strip for each IC pin, just like solderless breadboards. However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts.

The SB300 has two power rails along the centerline.

BPS prototyping boards use high-quality FR4 glass epoxy PCBs for long life, with an anti-tarnish protective coating for easy soldering. BPS boards are lead-free and RoHS compatible.

Features:

• Same pattern and spacing as a standard 300 connection point solderless plug-in breadboard.
• Single-sided high-quality FR4 glass-epoxy circuit board.
• 1oz/ft² copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
• 360 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers.
• 1.20" tall, 3.00" long, 1/16" thick (31 x 76 x 1.6mm)
• Circuit pattern matches BB300 solderless breadboard
