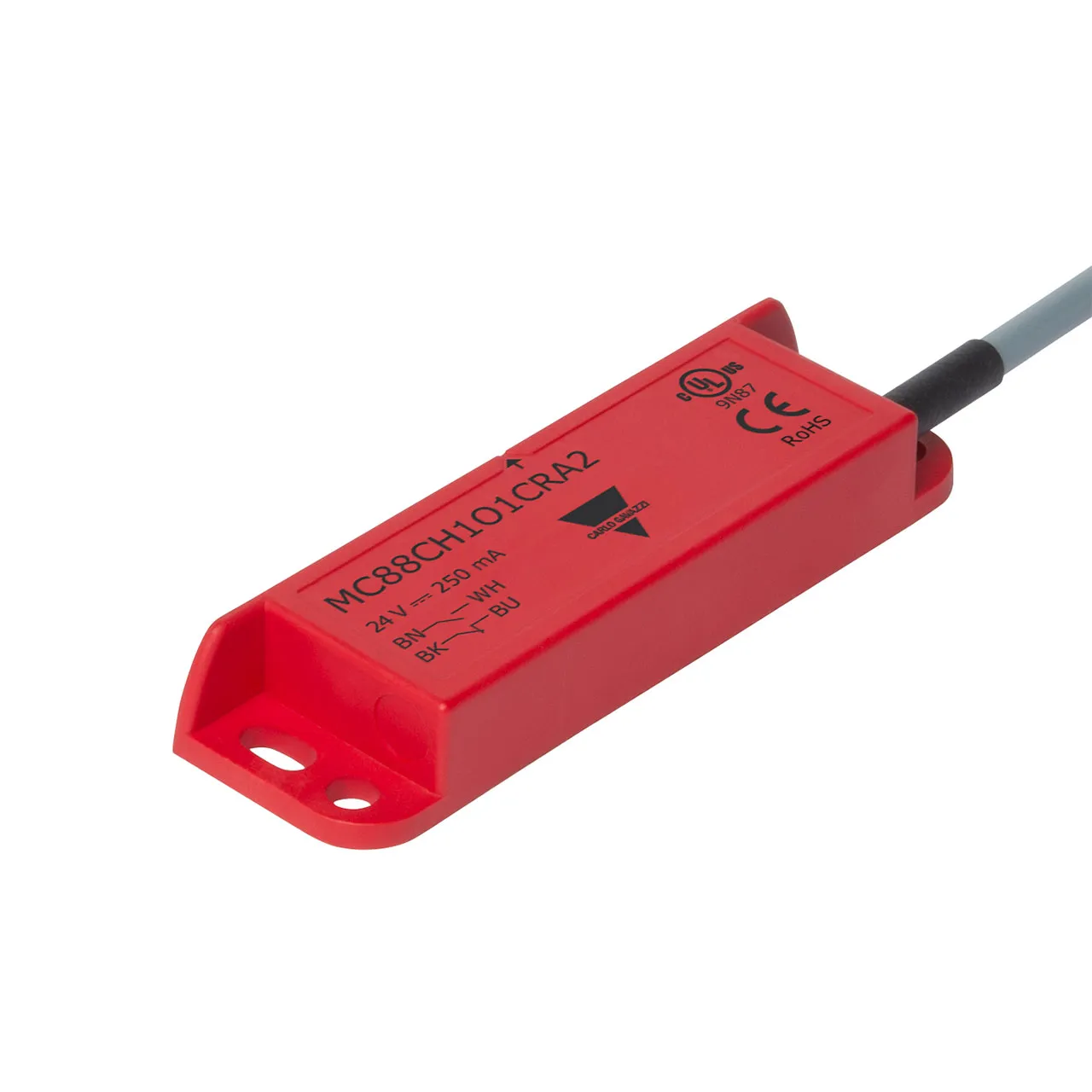

Safety Magnetic Sensor Rectangular Plastic Housing 1NO+1NC Reed Contacts 12/24VAC/VDC 2m PVC Cable Right Exit IP67

Features

  • Product Type: Magnetic and Safety Switches
  • Series: 550
  • Dimensions: 90 x 25 x 35 mm (LxWxH)
  • Harmonized Code: 85365080
  • ECCN: EAR99
  • Note: Replaces SMS01, SMSAP11AA02M, SMS02, SMSAP11AB02M, SMS02S1 with sensing range dependent on selected magnet

Overview

Safety Magnetic Sensor, Rectangular Plastic Housing, 2m Cable, Right Exit, 1NO+1NC Output Reed Contacts, Max SwitchIng Voltage 12/24 Vac/dc, Max SwitchIng Current 250mA, Max SwitchIng Power 6W, OperatIng Temperature -25...+80 C, IP67

,
