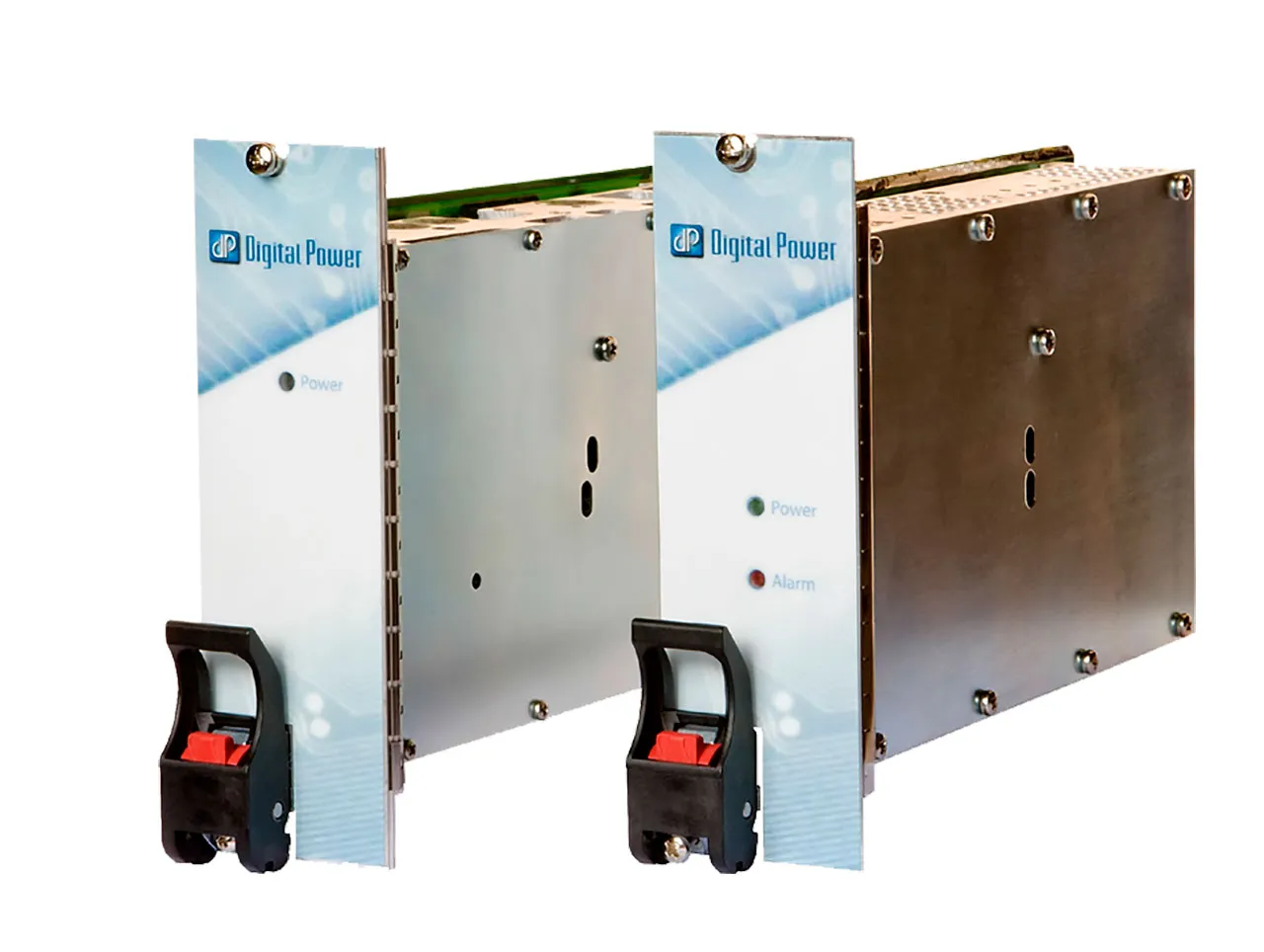

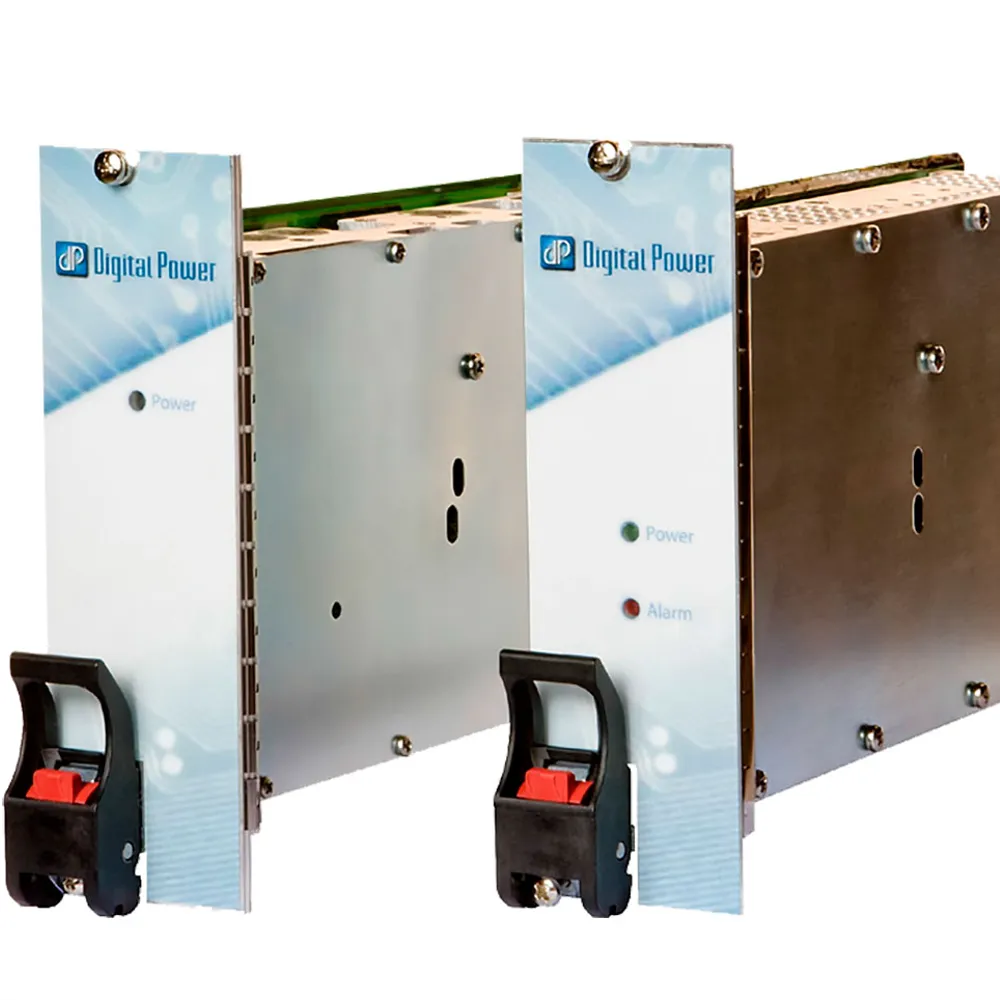

Ruggedized 300W Compact PCI Power Supply Quad Output 3U AC Input

Features

  • Universal AC Input: 85 VAC to 264 VAC; 47-63 Hz
  • 3U cabinet
  • Environmentally Rugged
  • High current 3.3V and 5V outputs
  • Accurate current sharing
  • Internal Oring FETs for redundant applications
  • PICMG 2.11 compliant
  • UL/cUL 60950-1, IEC/EN60950-1 Approved (AC Input and 48 VDC Input)
  • EN55022 Level B Emissions (with external filter)

Overview

The CPCI 3U Series of power supplies offer industry leading performance with up to 300 Watts in a 3U package. A full range of AC Input, 24/28VDC Input and 48VDC Input products is available and all products are compliant to the PICMG 2.11 power interface specification. These CPCI products are ruggedized and excel in defense and harsh industrial applications.

Specifications

  • Output Power: 300 W
  • V1 Outp

,
