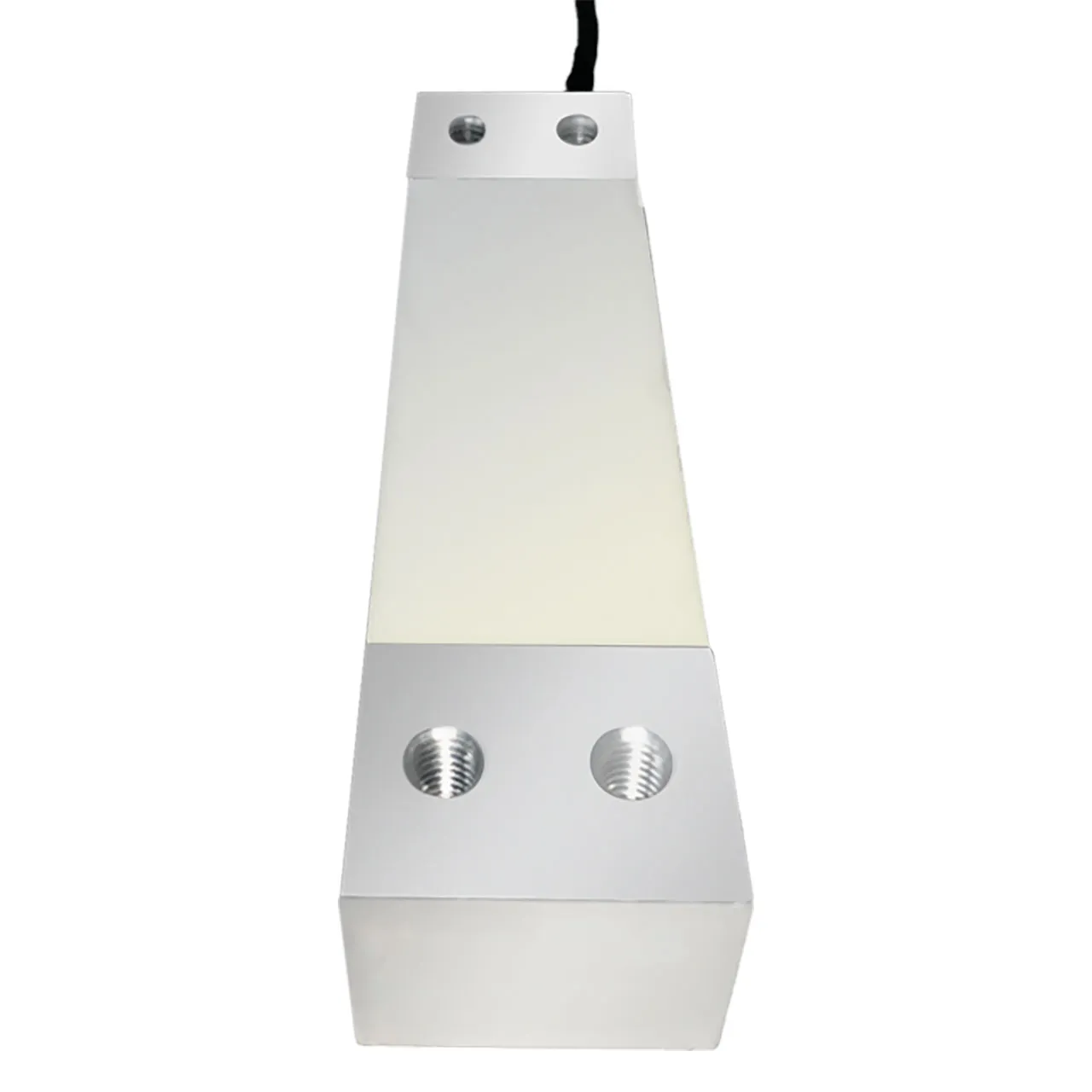

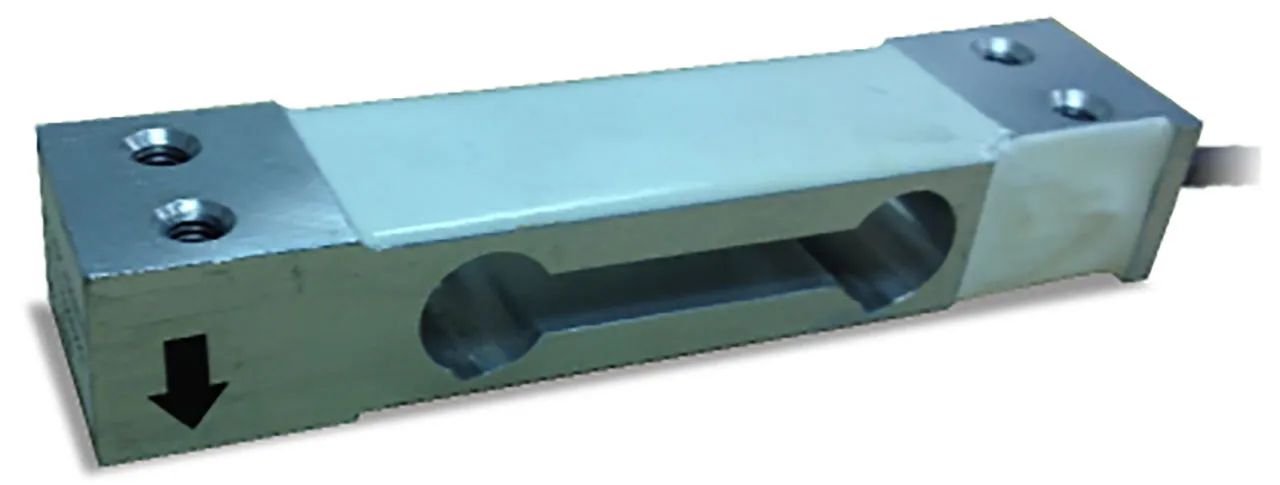

RSP1 Single Point Load Cell, Sensor Only, 5 KG Capacity, Calibrated in mV/V in Universal

Features

  • Single Point load cells can be used for Compression, Tension or Universal (both Compressions and Tension) measurements
  • Excellent off-center loading compensation hence ideal for smaller scales up to12" x 12" in size
  • Threaded holes one each end can be used to fasten the load cell to the fixed surface on one end and the load has to be applied to the other end
  • Capacity: 5 KG
  • Includes: Sensor, mV/V Calibration & Certificate

Overview

Single point load cells that are one of the most accurate and versatile load cells. These load cells are ideal for building scales of up to 12" x 12"  because of their unique ability to withstand off axis and off center loading. Visit Loadstar Sensors for additional information.

Resources & Downloads

Product Identification

Additional Feature:Load Cell Only, Calibrated in mV/V in Universal
Product Type:Single Point Load Cell

Dimensions & Appearance

Dimensions:130x30x22 mm

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Voltage:5V to 10V

Output

Output:mV/V

Features

Accuracy:0.015%
Option:Compression, Tension, Universal
Number of Wires:4
Sensor Type:Force
Capacity:5 KG
Technology:Resistive
Thread Size:M6
Connector Type:Pigtail
Material:Aluminum
,
