RSP1 Single Point Load Cell PC Kit, 20 KG Capacity, DI-100U USB Interface, LoadVUE Pro Software, Calibrated in Tension
Features
- Single Point load cells can be used for Compression, Tension or Universal (both Compressions and Tension) measurements
- Excellent off-center loading compensation hence ideal for smaller scales up to12" x 12" in size
- Threaded holes one each end can be used to fasten the load cell to the fixed surface on one end and the load has to be applied to the other end
- Capacity: 20 KG
- Output Type: UART/USB

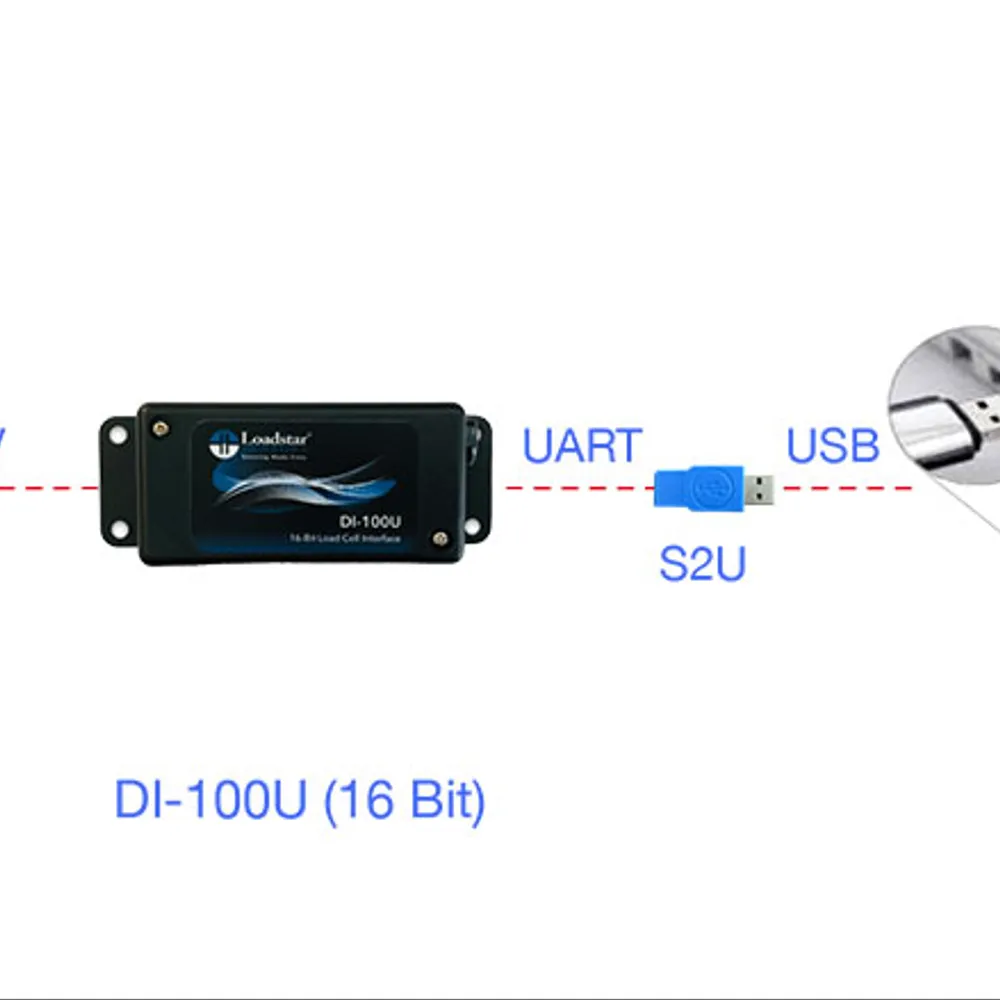

- PC Kit Includes: Sensor, Interface, Output Cable, USB Dongle (if DI-100U), LoadVUE Pro, Calibration Certificate
Overview
Single point load cells that are one of the most accurate and versatile load cells. These load cells are ideal for building scales of up to 12" x 12" because of their unique ability to withstand off axis and off center loading. Visit Loadstar Sensors for additional information.
Click to Enlarge
Resources & Downloads
Product Identification
Additional Feature:Load Cell PC Kit, DI-100U USB Interface, LoadVUE Pro Software, Calibrated in Tension
Product Type:Single Point Load Cell
Dimensions & Appearance
Dimensions:130x30x22 mm
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Voltage:5V to 10V
Output
Output:UART/USB
Features
Accuracy:0.015%
Option:Compression, Tension, Universal
Number of Wires:4
Sensor Type:Force
Technology:Resistive
Capacity:20 KG
Thread Size:M6
Connector Type:Pigtail
Material:Aluminum
