RSB6 Pancake Load Cell with Through Hole PLC Kit, 2500 KG Capacity, AI-1000 Analog 0.5V to 4.5V DC Interface, Calibrated in Tension

Features

• Low-profile, through-hole pancake load cell
• Rugged alloy steel construction. Mechanically robust design. Ideal for tank weighing, hopper weighing, center of gravity and cable/wire testing applications.
• Can be used for Compression applications (Push force measurement). When used with adapters, it can also be used for measuring Tension or Pull Forces
• Capacity: 2500 KG
• Output Type: 0.5 to 4.5 VDC

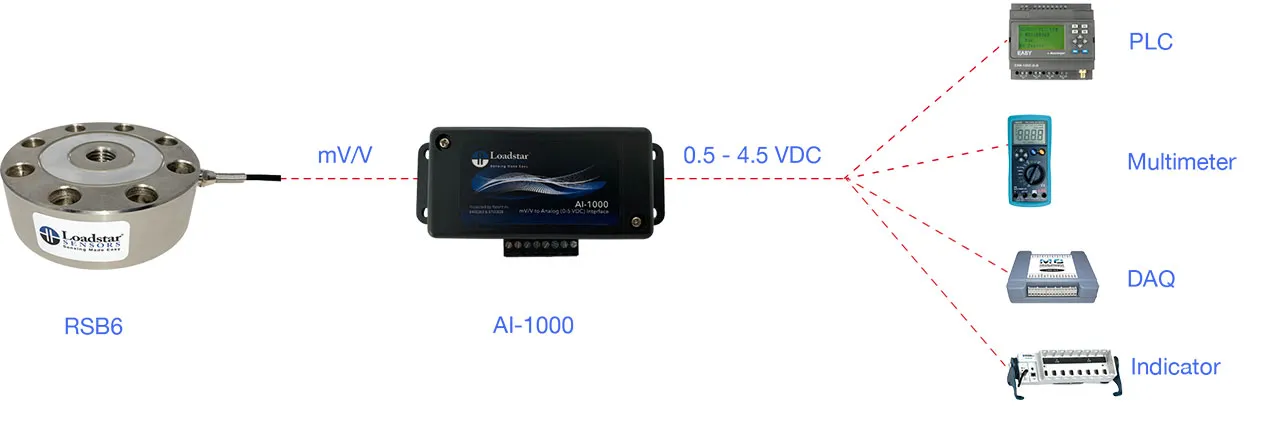

• PLC Kit Includes: Sensor, Interface, Power Supply, Calibration Certificate

Overview

The low profile through hole load cells offer an all in one solution for push or pull force measurements. The RSB6 is made from special high grade heat treated alloy steel and is available in 250 kg, 500 kg, 1000 kg, 2500 kg or 5000 kg capacities. The sensor has a threaded through holes at the center of the load cell to apply forces as well as six or eight through holes to easily mount it and firmly hold it in place in your application. Visit Loadstar Sensors for additional information.

Click to Enlarge

Resources & Downloads

• Specsheet (PDF)
• PLC Kit Interface Specsheet (PDF)
• CAD (offsite)
