RSB6 5000KG Alloy Steel Pancake Load Cell with Through Hole - Uncalibrated with Nominal mV/V value only

Features

• Low-profile, through-hole pancake load cell
• Rugged alloy steel construction. Mechanically robust design. Ideal for tank weighing, hopper weighing, center of gravity and cable/wire testing applications.
• Can be used for Compression applications (Push force measurement). When used with adapters, it can also be used for measuring Tension or Pull Forces
• Pancake Load Cell with Through Hole
• Load cell only Uncalibrated
• Capacity: 5000 KG
• Calibration Options: Compression,Tension,Universal
• Sensor Only Includes: Uncalibrated Sensor, Nominal mV/V

Overview

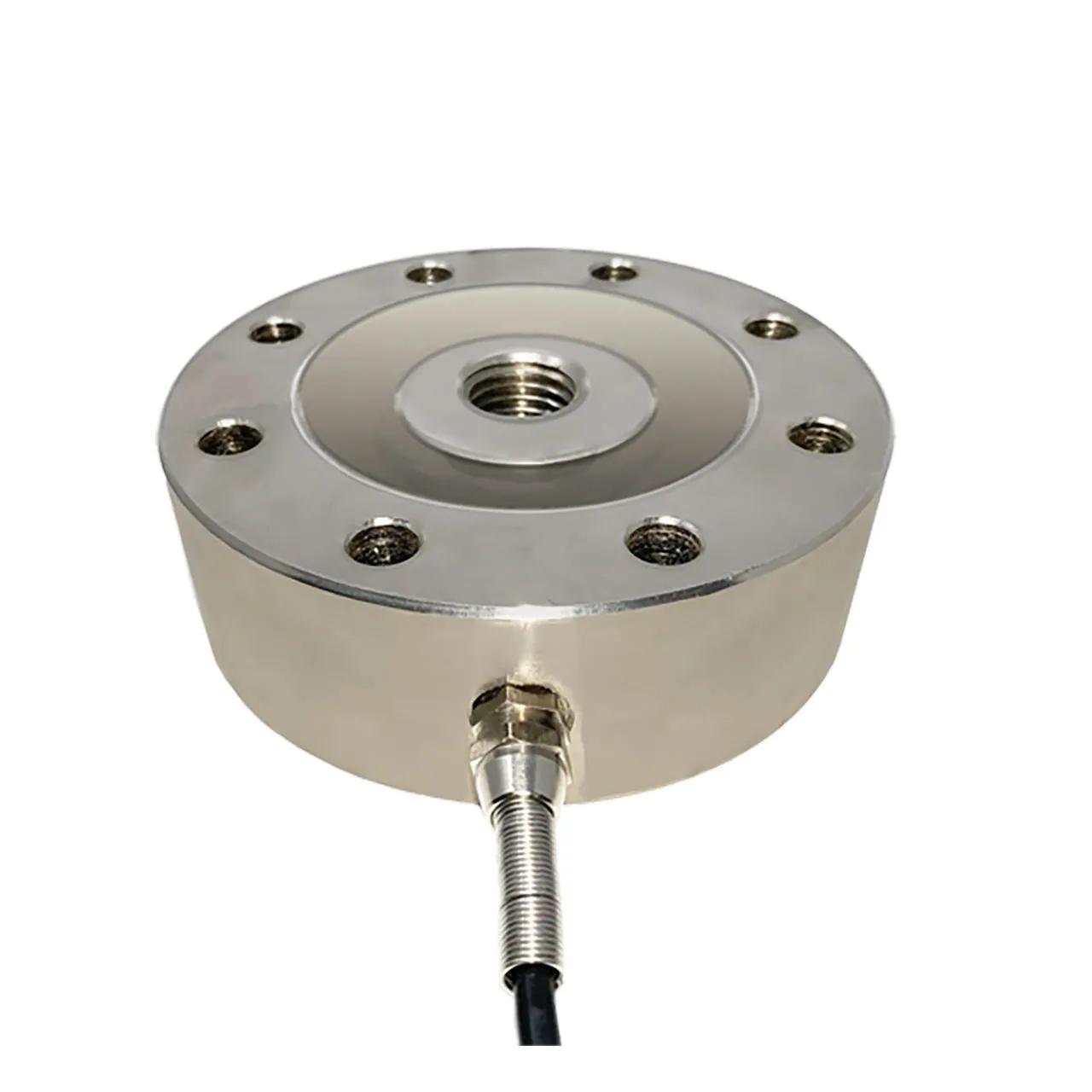

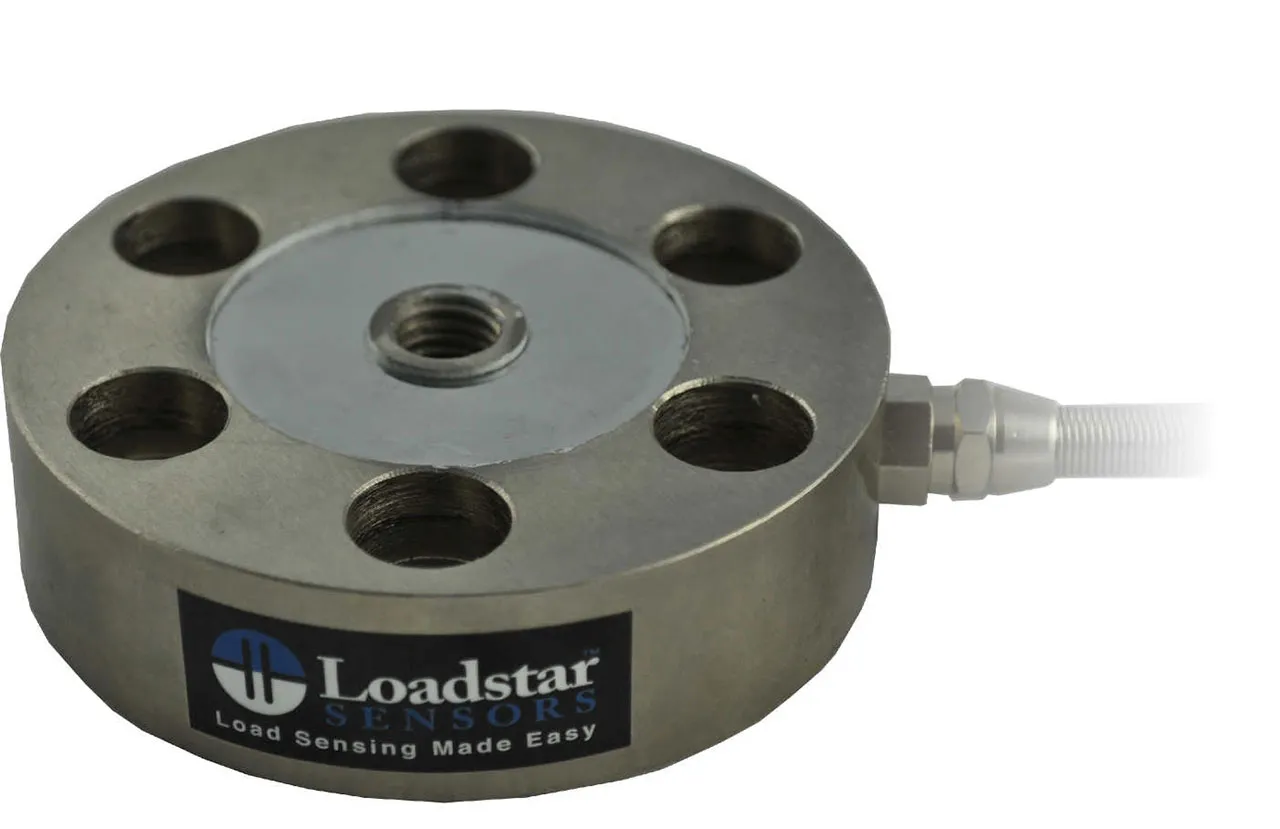

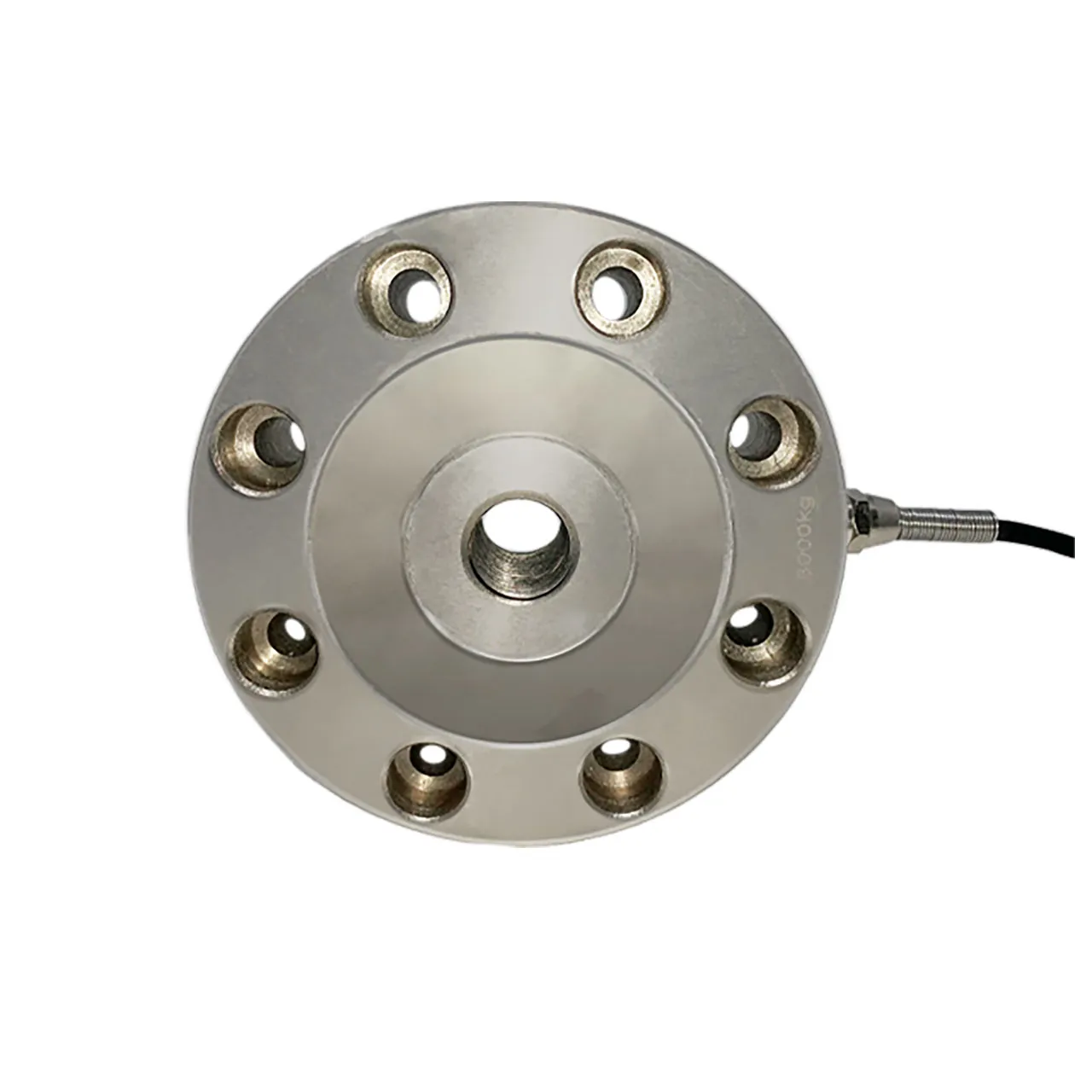

The low profile through hole load cells offer an all in one solution for push or pull force measurements. The RSB6 is made from special high grade heat treated alloy steel and is available in 250 kg, 500 kg, 1000 kg, 2500 kg or 5000 kg capacities. The sensor has a threaded through holes at the center of the load cell to apply forces as well as six or eight through holes to easily mount it and firmly hold it in place in your application. Visit Loadstar Sensors for additional information.

Resources & Downloads

• Spec Sheet (PDF)
