RSB3 Button Load Cell with Threaded Stud Wireless PC Kit, 50 KG Capacity, DI-1000ZP Wireless & USB Interface, LoadVUE Pro Software, Calibrated in Tension

Features

• Button load cells can be used for Compression, Tension or Universal measurements
• Threaded stud on top and threaded holes on bottom for easy mounting. Rugged strain relief provided on cable for improved reliability
• Tension adapter available that fits on base and provided in line threaded rods on both ends for tension or universal applications
• Capacity: 50 KG
• Output Type: USB/XBee Wireless

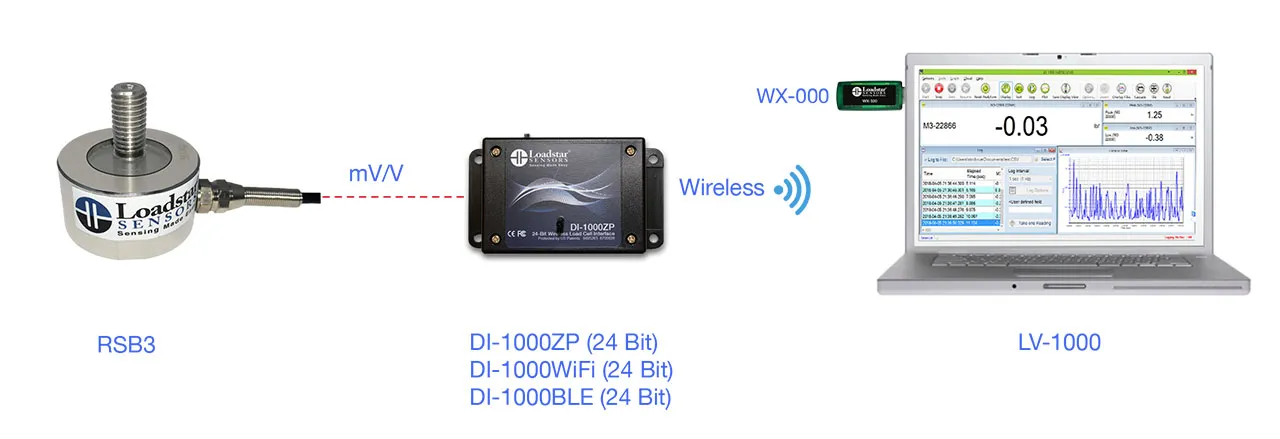

• Wireless Kit Includes: Sensor, Wireless Interface, USB Output Cable, USB Wireless Dongle (if DI-1000ZP), Power Supply, LoadVUE Pro, Calibration Certificate

Overview

Button style load cells with a male threaded stud, only 2 inches in diameter but can be used to measure forces as high as 500 kg. or 1100 lb. They have excellent accuracies and convenient threaded mounting holes or studs on both sides of the load cell. Visit Loadstar Sensors for additional information.

Click to Enlarge

Resources & Downloads

• Specsheet (PDF)
• Wireless Kit Interface (DI-1000ZP) Specsheet (PDF)
• Wireless Kit Software (LoadVUEPro) Specsheet (PDF)
• CAD (offsite)
