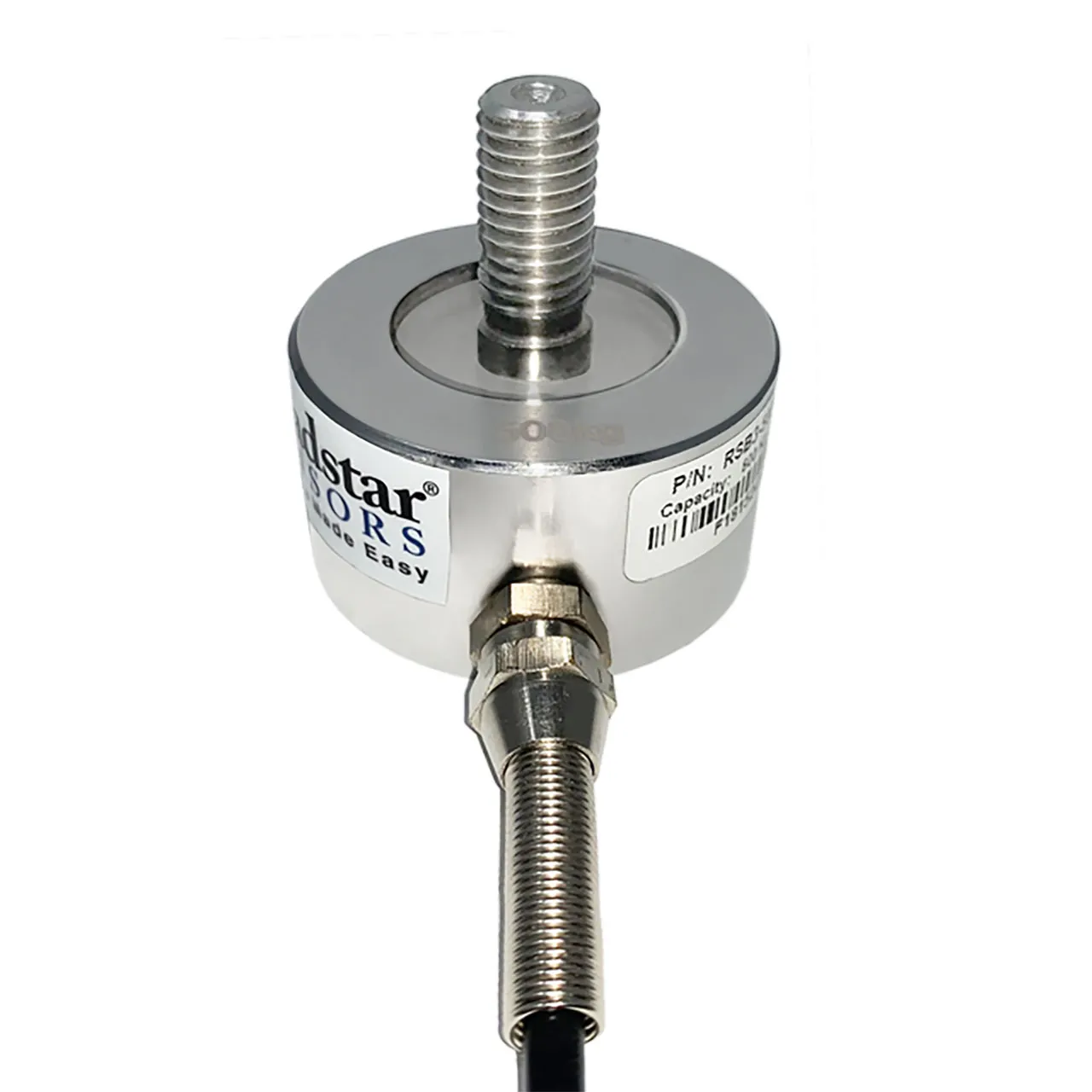

RSB3 Button Load Cell with Threaded Stud, Sensor Only, 200 KG Capacity, Calibrated in mV/V in Compression

Features

• Button load cells can be used for Compression, Tension or Universal measurements

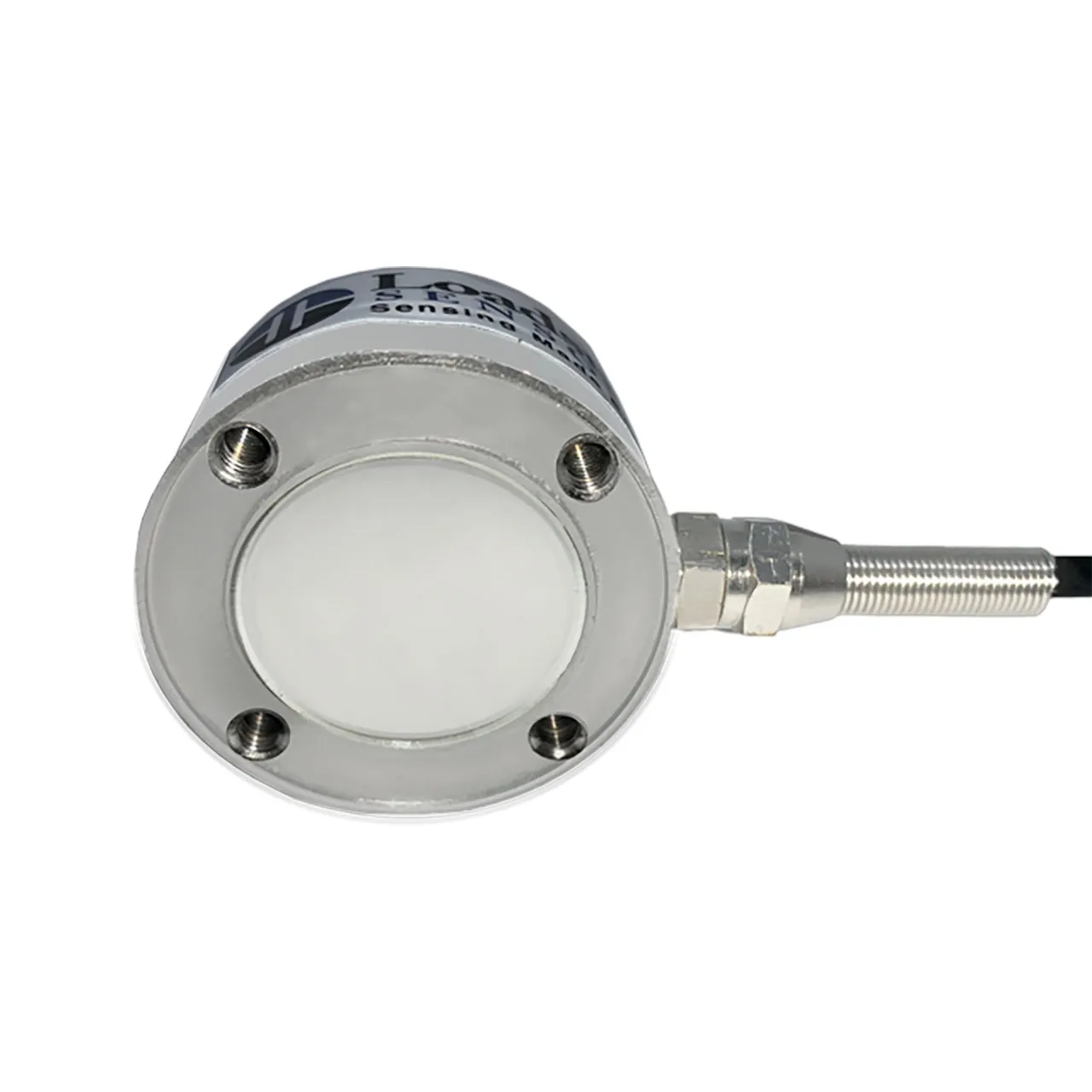

• Threaded stud on top and threaded holes on bottom for easy mounting. Rugged strain relief provided on cable for improved reliability
• Tension adapter available that fits on base and provided in line threaded rods on both ends for tension or universal applications
• Capacity: 200 KG
• Includes: Sensor, mV/V Calibration & Certificate

Overview

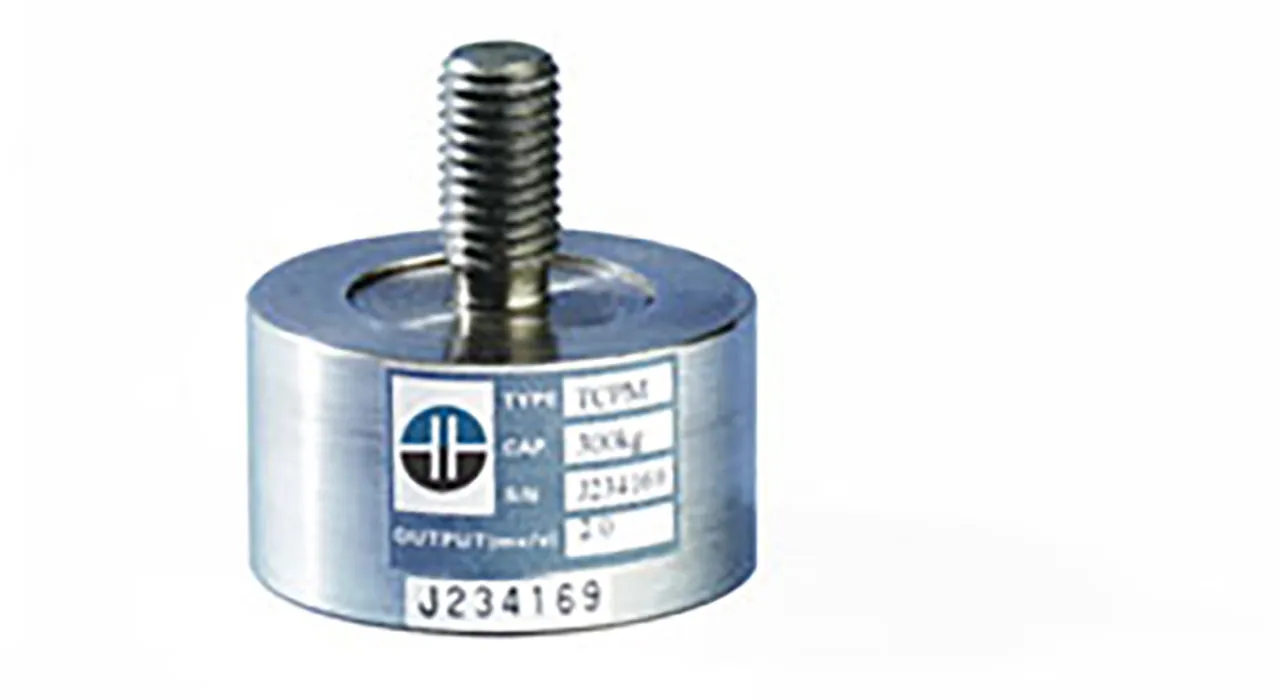

Button style load cells with a male threaded stud, only 2 inches in diameter but can be used to measure forces as high as 500 kg. or 1100 lb. They have excellent accuracies and convenient threaded mounting holes or studs on both sides of the load cell. Visit Loadstar Sensors for additional information.

Resources & Downloads

• Datasheet (PDF)
• CAD (offsite)
