RSB3 Button Load Cell with Threaded Stud PC Kit, 50 KG Capacity, DI-100U USB Interface, LoadVUE Pro Software, Calibrated in Compression
Features
- Button load cells can be used for Compression, Tension or Universal measurements
- Threaded stud on top and threaded holes on bottom for easy mounting. Rugged strain relief provided on cable for improved reliability
- Tension adapter available that fits on base and provided in line threaded rods on both ends for tension or universal applications
- Capacity: 50 KG
- Output Type: UART/USB

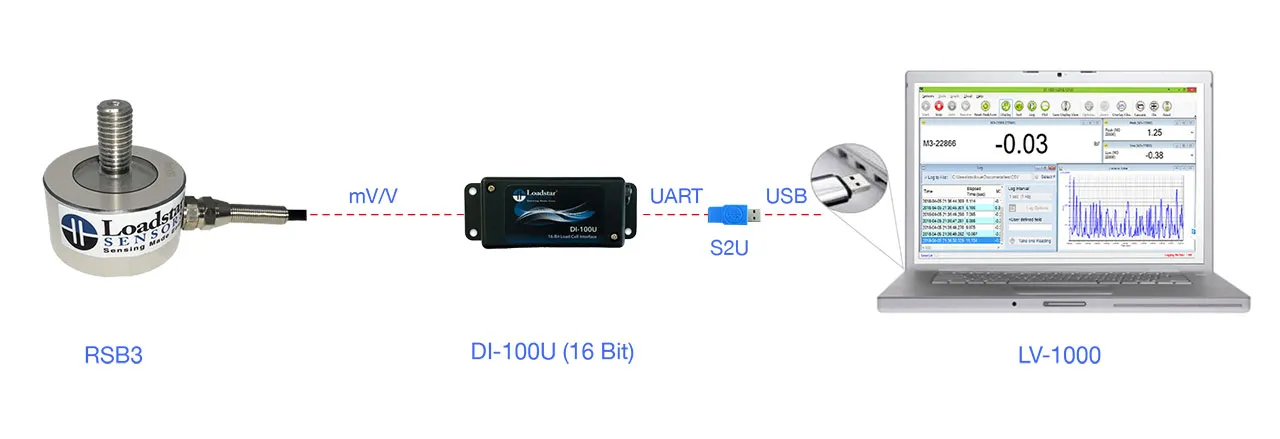

- PC Kit Includes: Sensor, Interface, Output Cable, USB Dongle (if DI-100U), LoadVUE Pro, Calibration Certificate
Overview
Button style load cells with a male threaded stud, only 2 inches in diameter but can be used to measure forces as high as 500 kg. or 1100 lb. They have excellent accuracies and convenient threaded mounting holes or studs on both sides of the load cell. Visit Loadstar Sensors for additional information.
Click to Enlarge
Resources & Downloads
Product Identification
Additional Feature:Load Cell PC Kit, DI-100U USB Interface, LoadVUE Pro Software, Calibrated in Compression
Product Type:Button Load Cell with Threaded Stud
Dimensions & Appearance
Dimensions:50x51 mm
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Voltage:5V to 10V
Output
Output:UART/USB
Features
Option:Compression, Tension, Universal
Number of Wires:4
Accuracy:0.5%
Sensor Type:Force
Technology:Resistive
Capacity:50 KG
Connector Type:Pigtail
Material:Alloy Steel
Thread Size:M12x1.75
