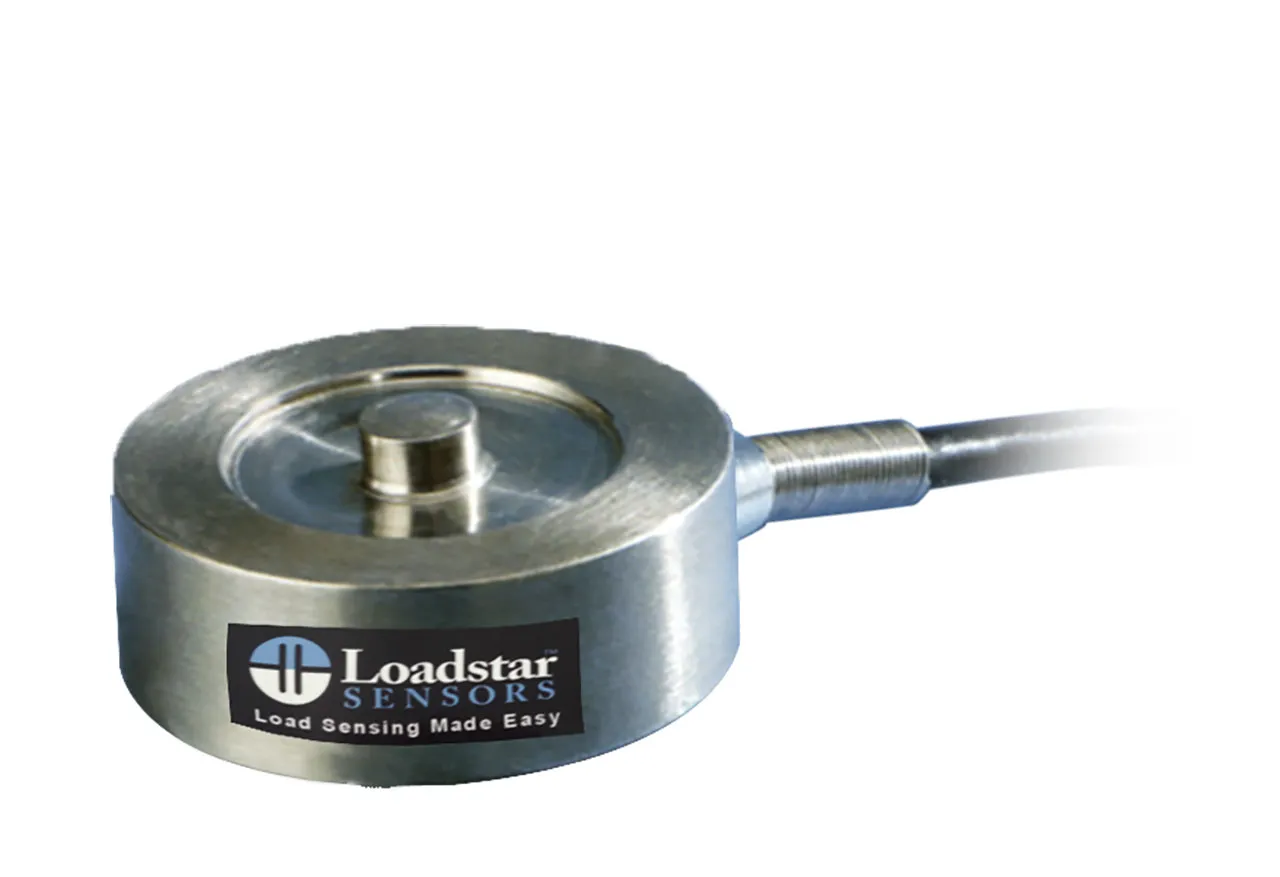

RSB2 250KG Alloy Steel Button Load Cell - Uncalibrated with Nominal mV/V value only

Features

• Button load cell that is excellent for measuring compression loads or push forces with very high accuracy and stability with time and temperature

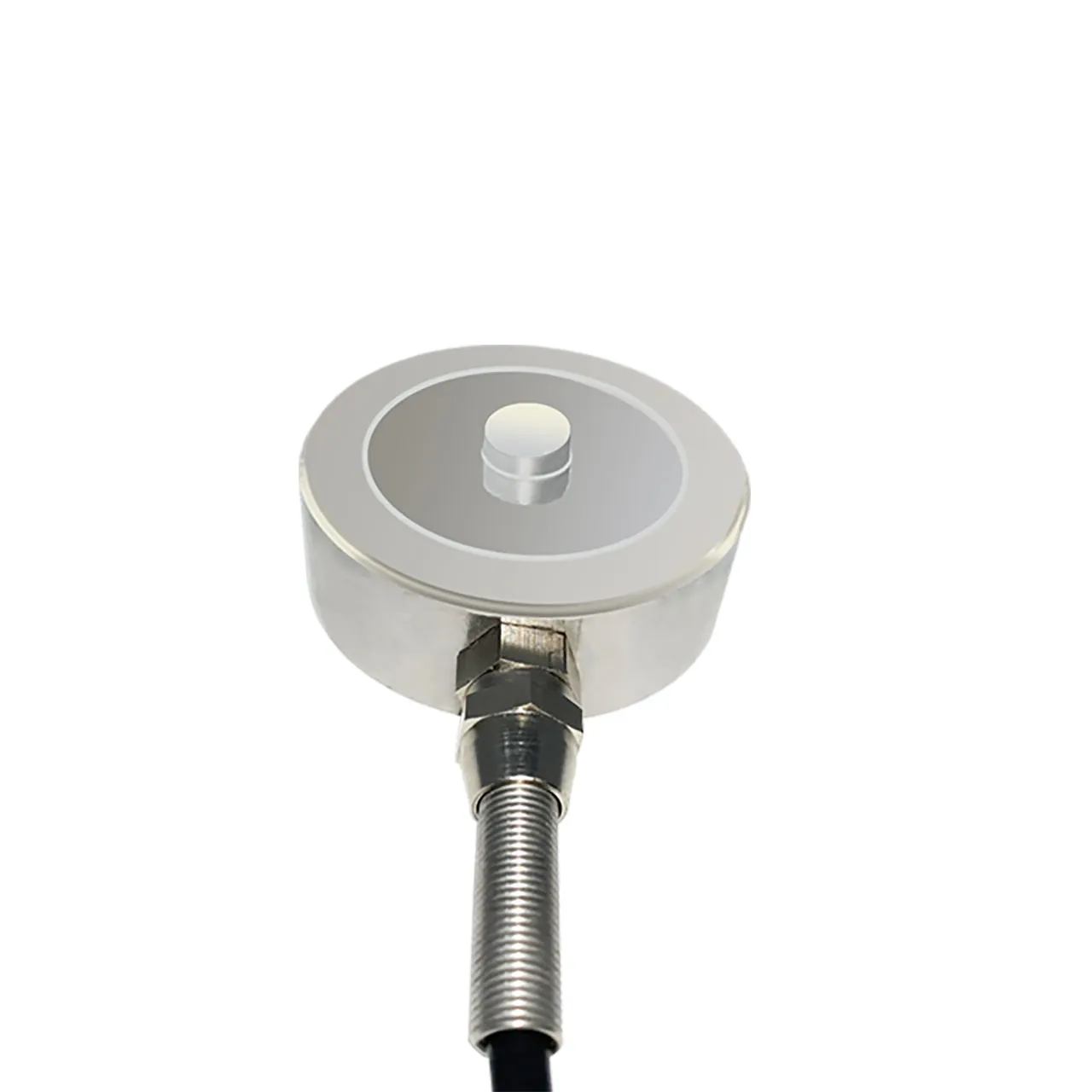

• Raised boss at center for applying compressive loads. Rugged strain relief provided on cable egress for improved reliability

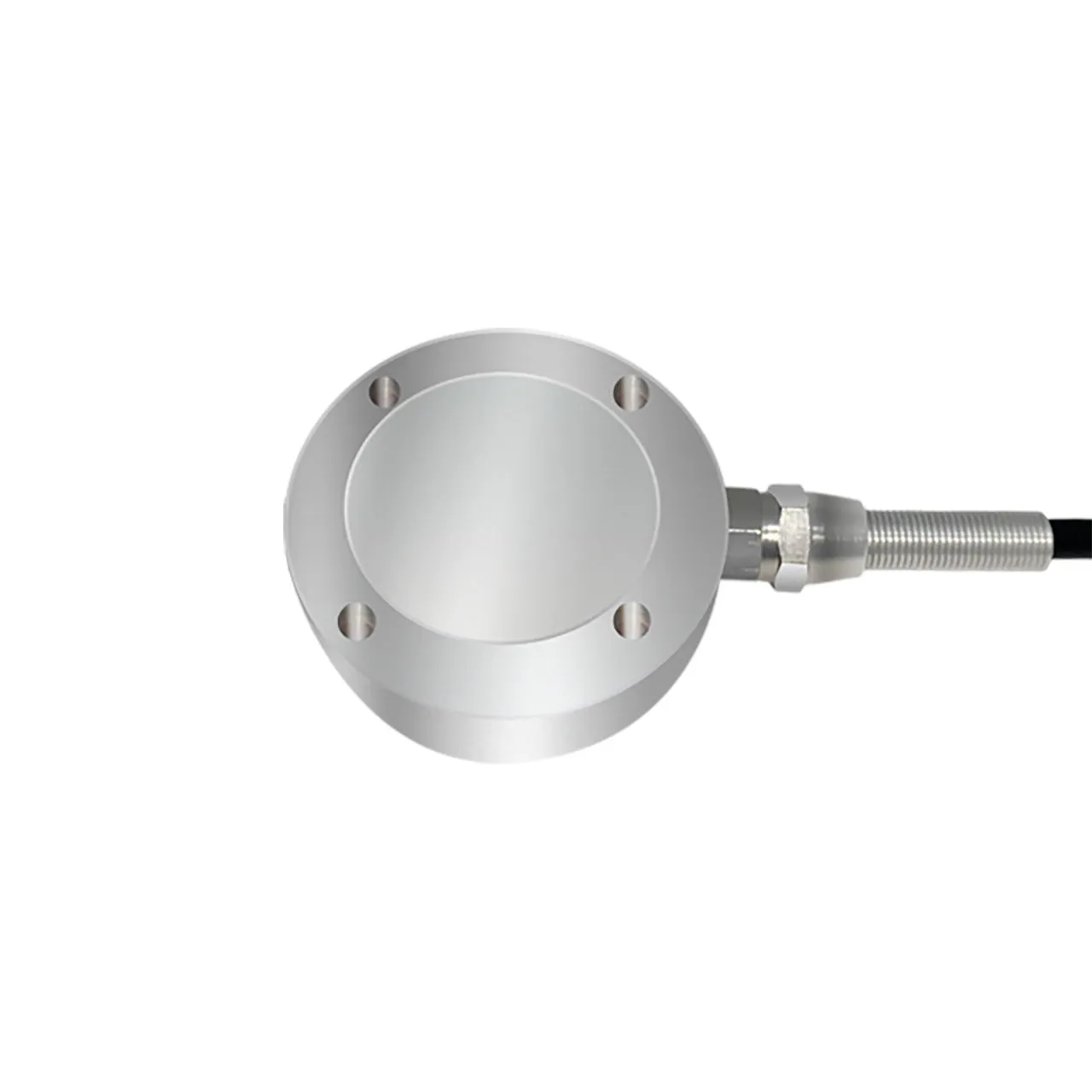

• Four threaded mounting holes on the base to make it easy to attach it to your particular assembly
• Button Load Cell
• Load cell only Uncalibrated
• Capacity: 250 KG
• Calibration Options: Compression
• Sensor Only Includes: Uncalibrated Sensor, Nominal mV/V

Overview

Button load cells, so named for the distinctive button on top of the round cylindrical load cell, are one of the most versatile load cells available in the market and offer the best solution for applications that need compression force measurement. The RSB2 is made from special high grade heat treated alloy steel and is available in capacities from as little as 25 kg up to 1,000 kg. The sensor has threaded holes on the bottom of the load cell to easily mount it and firmly hold it in place in your application. Visit Loadstar Sensors for additional information.

Resources & Downloads

• Spec Sheet (PDF)
