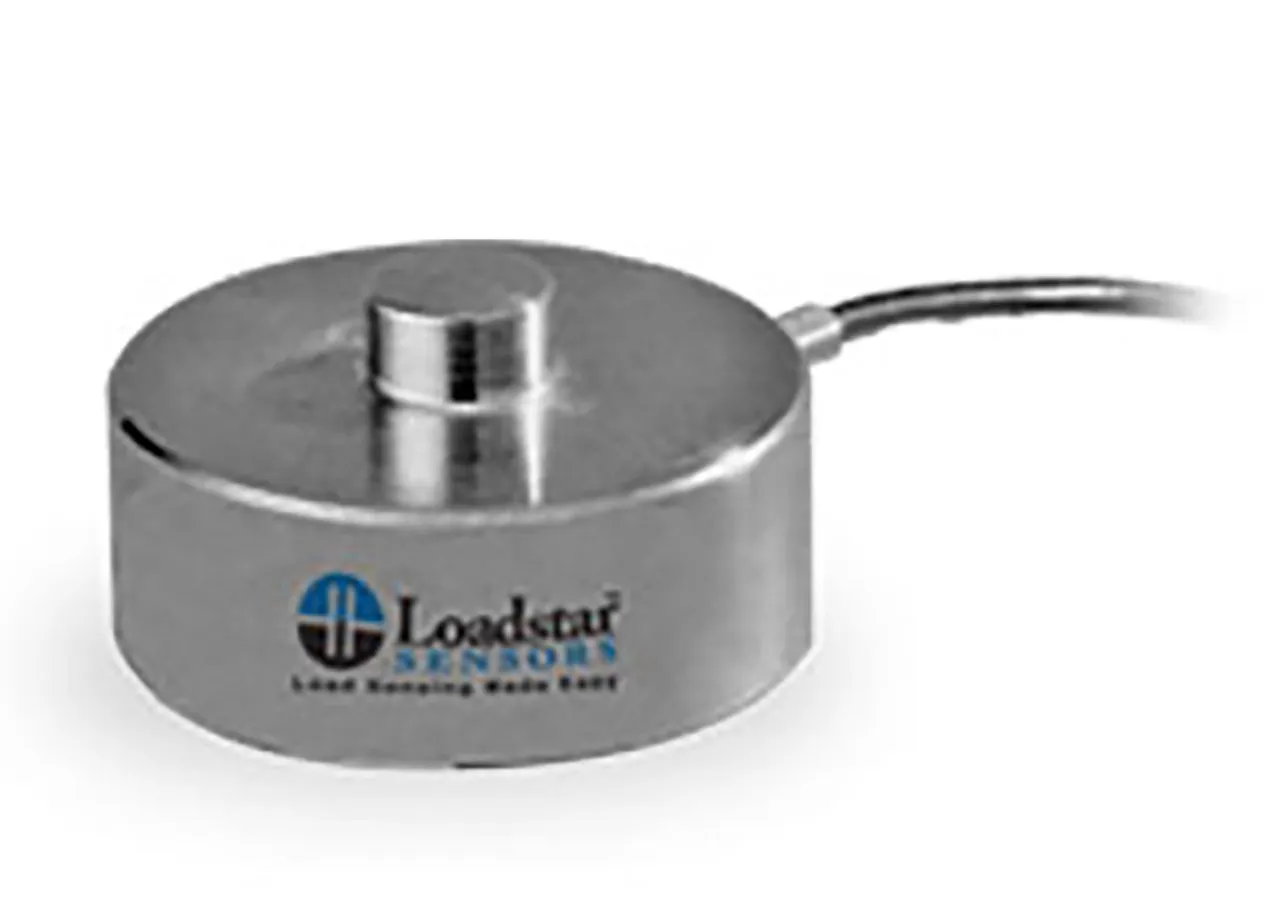

RSB1 Button Load Cell, Sensor Only, 5000 KG Capacity, Calibrated in mV/V in Compression
Features
- Button load cells can be used only for Compression measurements
- Built-in raised surface with curvature for applying compressive loads. Rugged strain relief provided on cable egress for improved reliability
- Have four mounting holes on the base and can be used in any orientation to measure a "push force" or "compressive force"
- Capacity: 5000 KG
- Includes: Sensor, mV/V Calibration & Certificate
Overview
Button load cells with a raised extrusion that looks like a button on which a compressive force can be applied. Visit Loadstar Sensors for additional information.
Resources & Downloads
Product Identification
Product Type:Button Load Cell
Additional Feature:Load Cell Only, Calibrated in mV/V in Compression
Dimensions & Appearance
Dimensions:82x44 mm
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Voltage:5V to 10V
Output
Output:mV/V
Features
Option:Compression
Accuracy:0.02%
Number of Wires:4
Sensor Type:Force
Technology:Resistive
Connector Type:Pigtail
Material:Alloy Steel
Capacity:5000 KG
