RSB1 2000KG Alloy Steel Button Load Cell - Uncalibrated with Nominal mV/V value only

Features

• Button load cells can be used only for Compression measurements
• Built-in raised surface with curvature for applying compressive loads. Rugged strain relief provided on cable egress for improved reliability

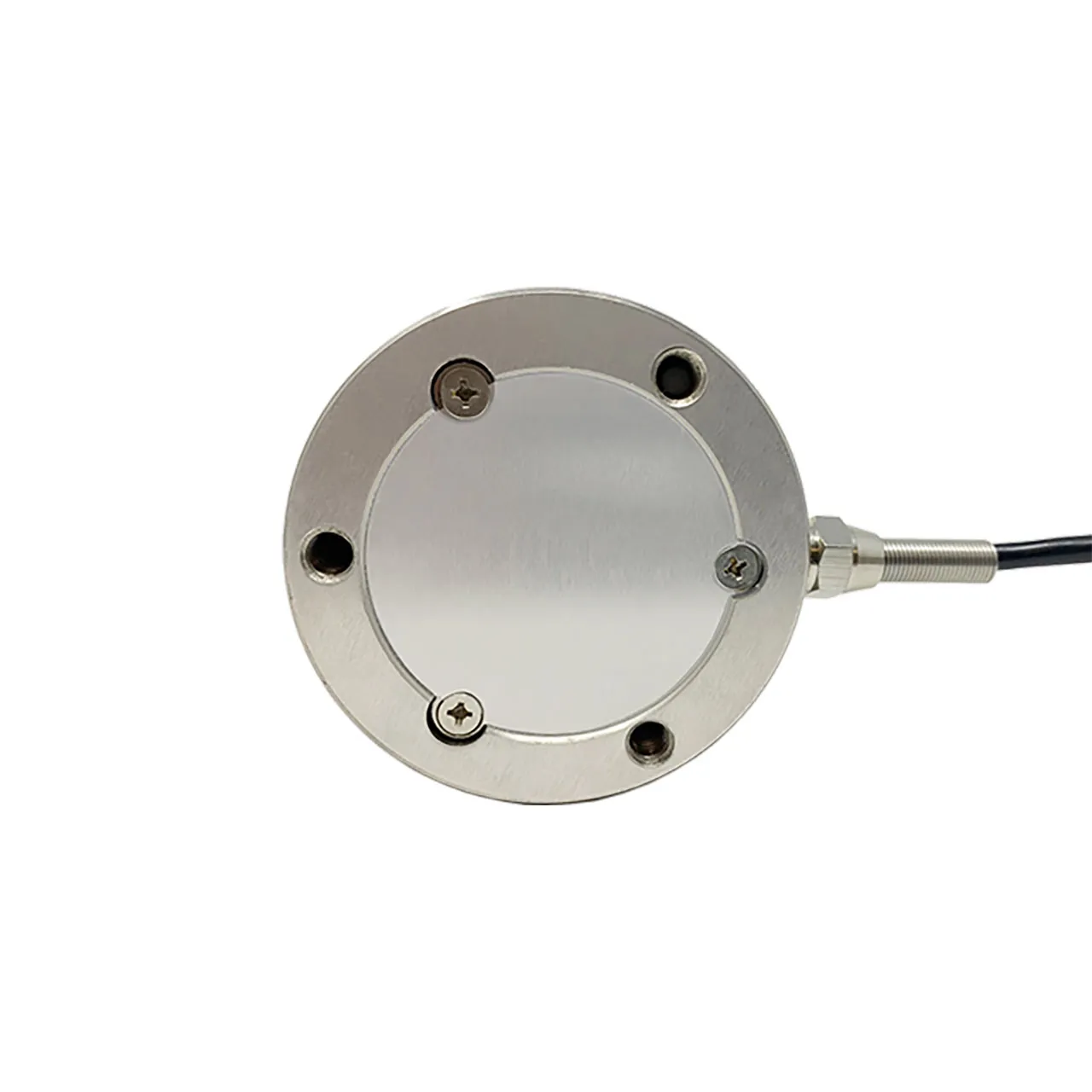

• Have four mounting holes on the base and can be used in any orientation to measure a "push force" or "compressive force"
• Button Load Cell
• Load cell only Uncalibrated
• Capacity: 2000 KG
• Calibration Options: Compression
• Sensor Only Includes: Uncalibrated Sensor, Nominal mV/V

Overview

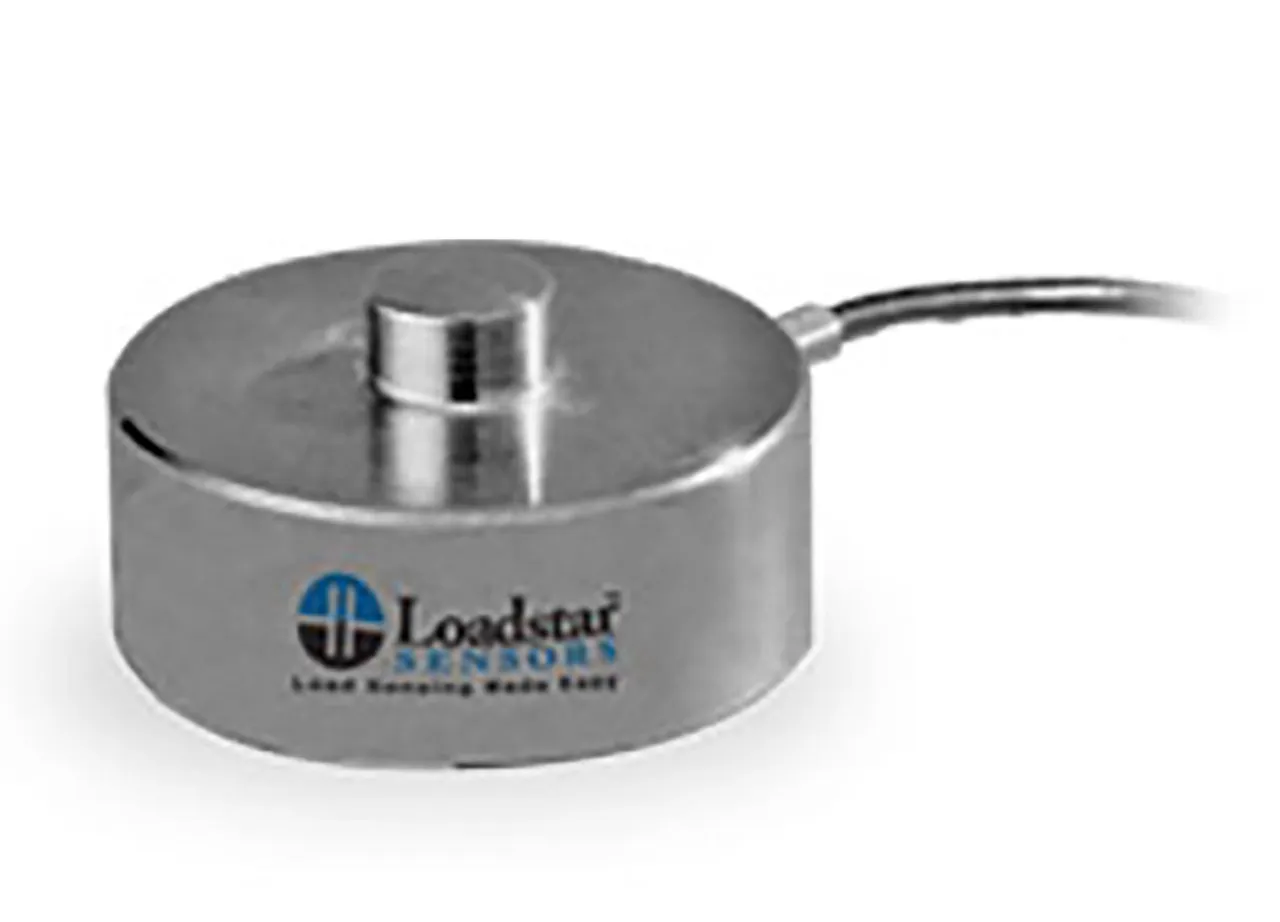

Button load cells with a raised extrusion that looks like a button on which a compressive force can be applied. Visit Loadstar Sensors for additional information.

Resources & Downloads

• Spec Sheet (PDF)
