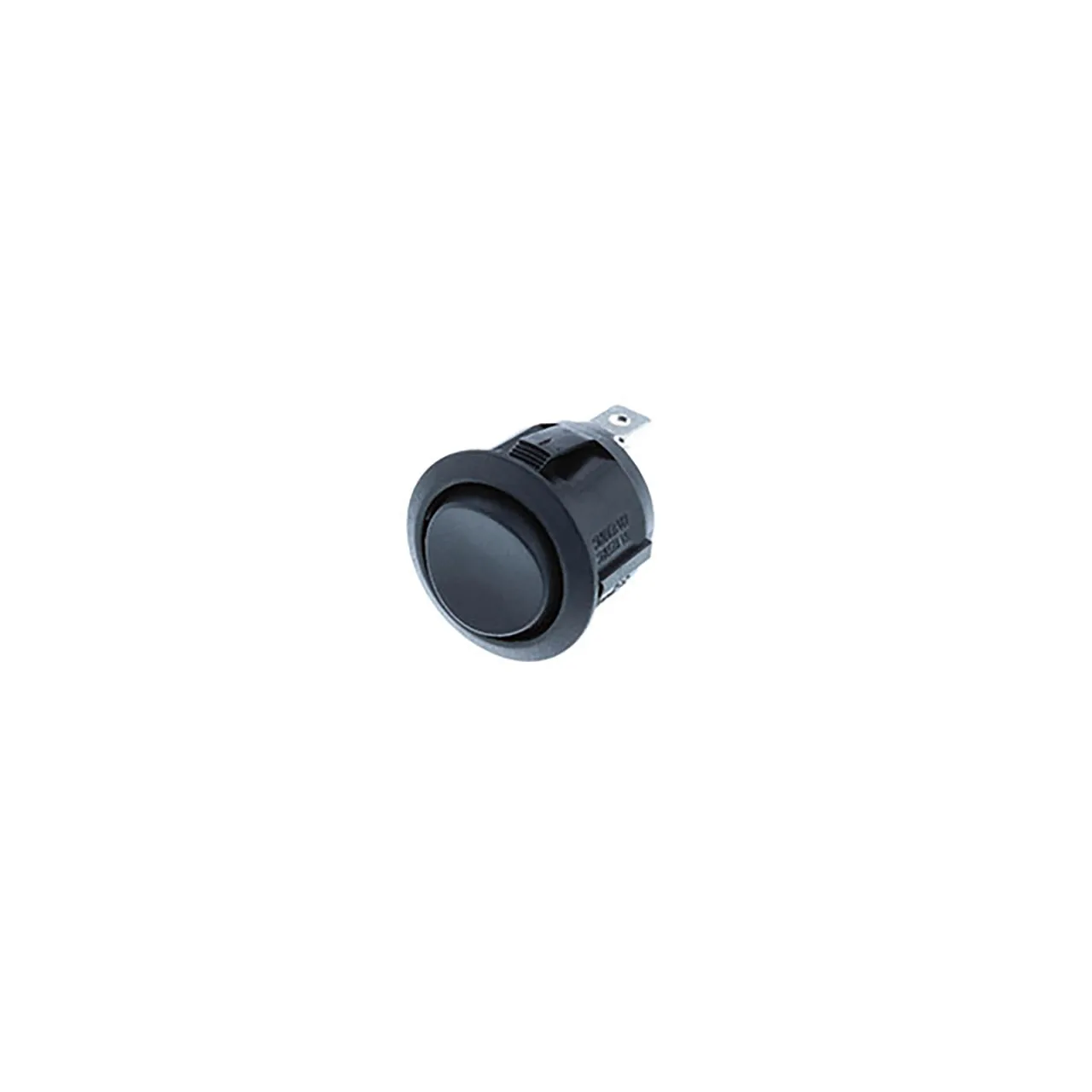

Round Rocker - 3P SPDT ON-OFF-ON
Features
- Series: RA1
- Mounting Type: Panel Mount, Snap-In
- Circuit: SPDT
- Switch FunctiON: ON-OFF-ON
- Current Rating (Amps): 16 (AC), 20 (DC)
- Voltage Rating - AC: 125 V
- Voltage Rating - DC: 14 V
- Actuator Type: Round
- Color - Actuator/Cap: Black
- Actuator Marking: No Marking
- Termination Style: Quick Connect - 0.187" (4.7mm)
- Panel Cutout Dimensions: Circular - 20.20mm Dia
- Operating Temperature: -25°C to 85°C
- Approval Agency: cURus, ENEC
- Product Type: Rocker Switch
- Harmonized Code: 8536.50.4000
- ECCN: EAR99
- 360 Animation Download (.zip)
Overview
Round Rocker - 3P SPDT ON-OFF-ON.
Product Identification
Product Type:Rocker Switch
Compliance
RoHS Status:ROHS Compliant
Dimensions & Appearance
Mounting Style:Panel Mount, Snap-In
Features
Pins:3
Termination Style:Quick Connect - 0.187" (4.7mm)
Color - Actuator/Cap:Black (No Marking)
Switch Function:ON-OFF-ON
Contact Form:SPDT
Actuator Type:Round
Current Rating:20A @ 14VDC, 10A @ 28VDC, 16A @ 125VAC, 10A @ 250VAC
