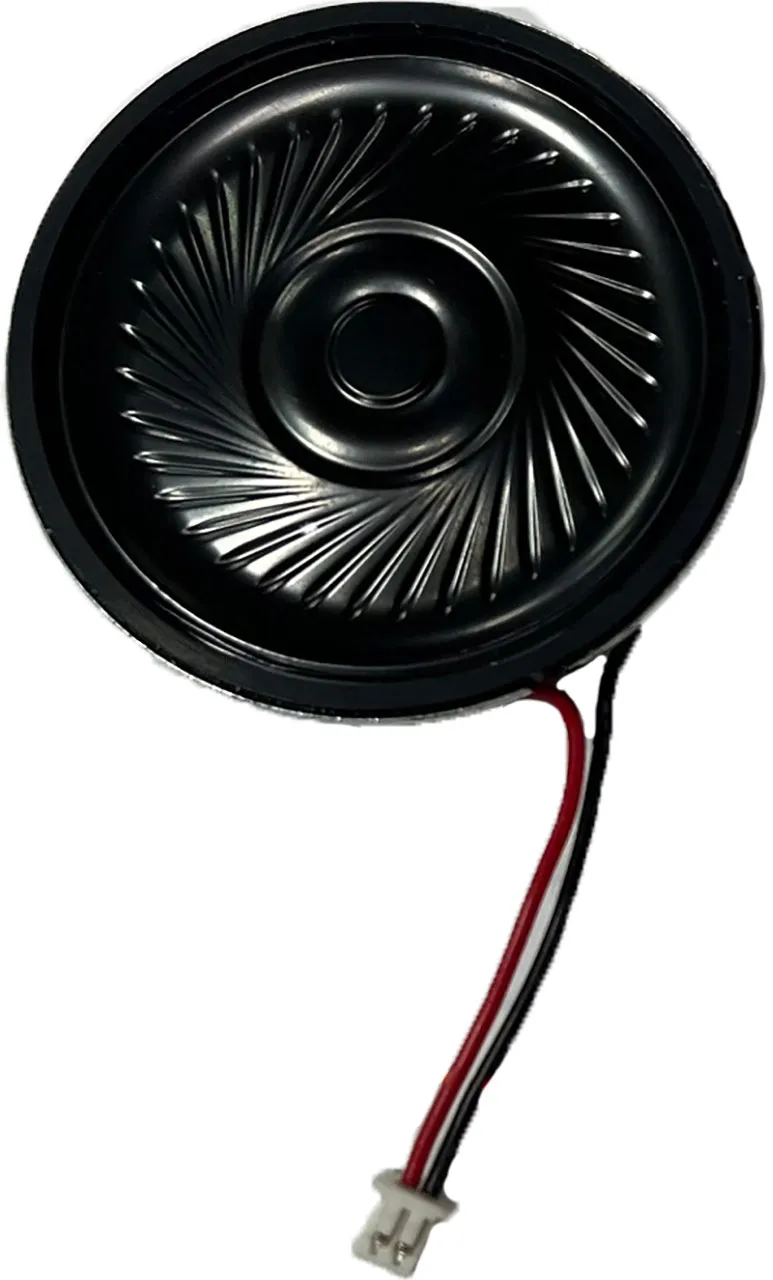

Round 40mm Diameter 8 Ohm Speaker with 2.36 Inch Wires 1-2W 90dB 5kHz

Features

  • Nominal Impedance: 8 ohm ±15%
  • Resonance Frequency: 500 Hz ±20%
  • Frequency Range: 0 to 5 kHz
  • Output S.P.L.: 90 dB ±3dB (1W/1m)
  • Rated Input Power: 1 W
  • Max. Input Power: 2 W
  • Diameter: 40 mm
  • Thickness: 5 mm

Dimensions & Appearance

Depth:0.20 in.
Diameter:1.57 in.

Input

Nominal Input Power (W):1
Input Power (max) (W):2

Output

Output:90 dB

Features

Impedance:8 Ohm
Frequency Range:0 Hz to 5000 Hz
Magnet Size (Diameter x H) (inches):0.63 x 0.11
Termination Style:Wires, 2 in.
,
