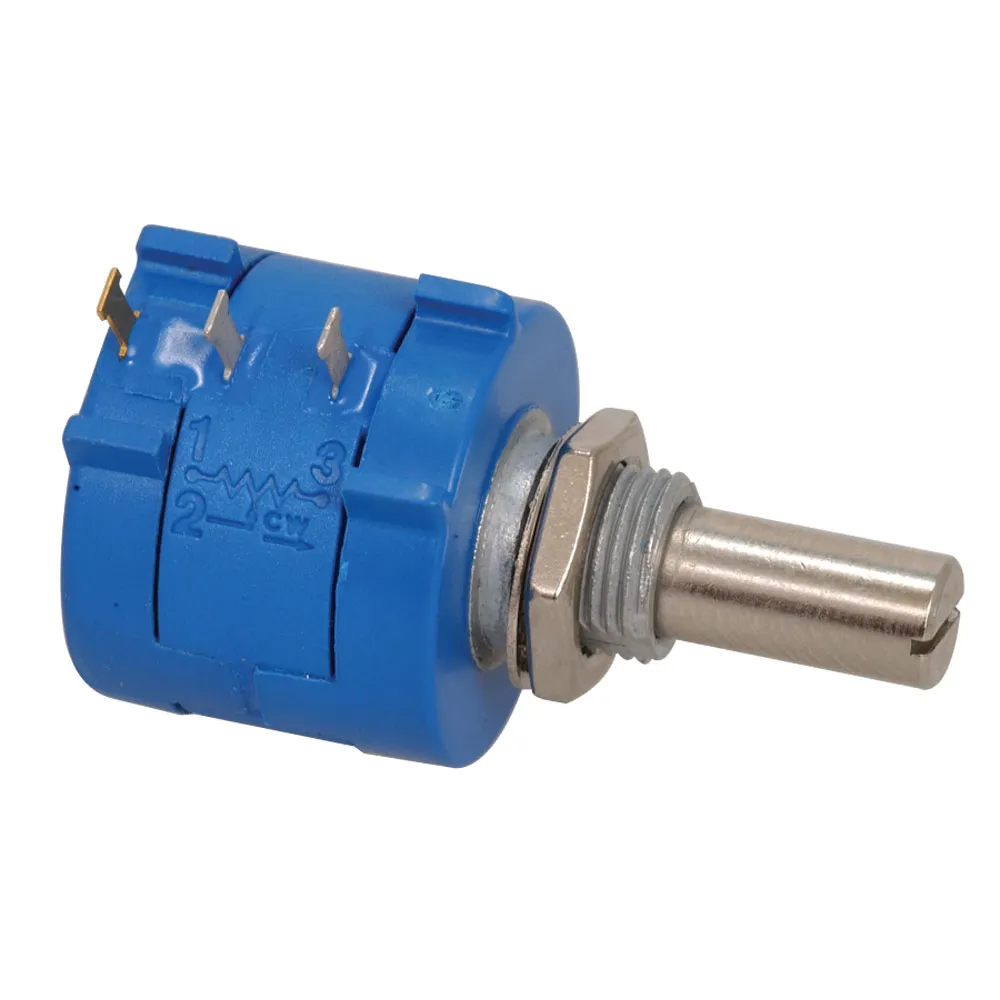

Rotary Metal Wirewound Potentiometer 5k Ohm 5% 2 Watt 6.34mm Panel Mount | Jameco.com

Rotary Metal Wirewound Potentiometer 5k Ohm 5% 2 Watt 6.34mm Panel Mount

Jameco Part #:

Manufacturer #:

Product Price:

$10.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$10.950	-	-
5+	$9.950	1.00	9.13%
25+	$9.490	1.46	13.33%
100+	$8.390	2.56	23.38%

Rotary Metal Wirewound Potentiometer 5K Ohm 5% 2 Watt 6.34mm Solder Lug Panel Mount

Type:Rotary Metal

Manufacturer Series:3590S

Product Type:Precision

Body Diameter:0.875 in., 22.23 mm

Mounting:Panel

Shaft Length:0.812 in., 20.62 mm

Shaft Diameter:6.29mm

Height:39.22mm

Maximum Operating Temperature:125°C

Minimum Operating Temperature:-40°C

Ganging Number:1

Taper:Linear

Number of Turns:10

Resistive Element Material:Wirewound

Tolerance:5%

Temperature Coefficient:50 ppm/°C

Resistance (Ohm):5000

Resistance:5 KOhm

Termination Style:Solder Lug, Panel Mount

Power Rating:2 W

Actuator Type:Slotted Shaft
