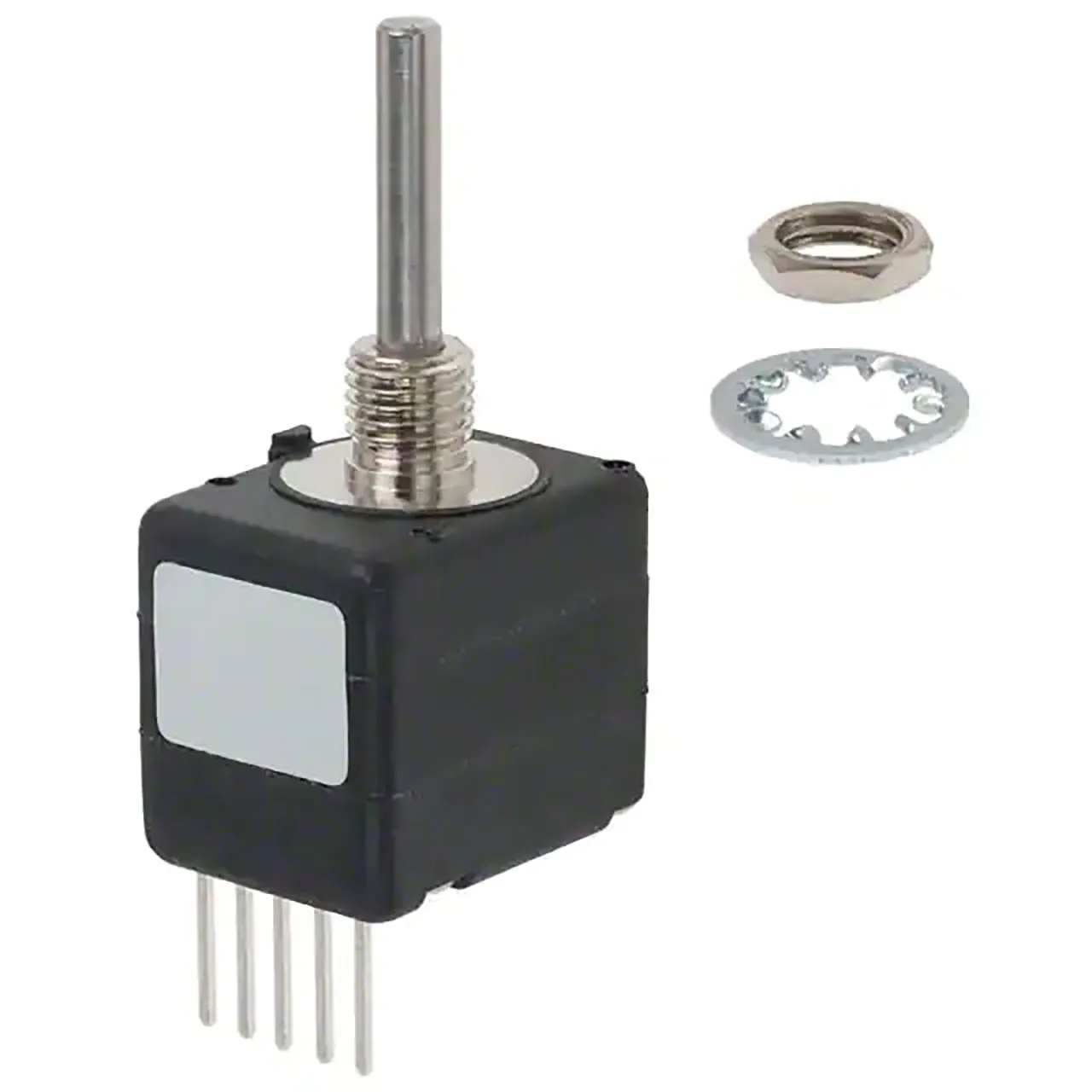

Rotary Encoder Optical 128 Cycles per Revolution 1/8" Round Shaft

The self-contained rotary optical encoder produces a 2-bit quadrature signal which is suitable for digital systems where both magnitude and direction of adjustment must be provided. This encoder is ideal for use as a digital panel control or as a position sensing device in applications where long life, reliability, high resolution and precise linearity are critical.

The encoder converts rotary input into electrical signals which can be used by microprocessors without ADC. The output signals are square wave digital pulses which do not require debounce circuitry.

Specifications

  • Encoder Type: Optical
  • Output Type: Quadrature (Incremental)
  • Pulses per Revolution: 128
  • Voltage - Supply: 5V
  • Actuator Type: 1/8" Dia. Round End
  • Shaft Length: 7/8"
  • Detent: No
  • Built in Switch: No
  • Mounting Type: Panel, PCB Through Hole
  • Orientation: Vertical
  • Termination Style: PC Pin
  • Terminal Configuration: Axial, Multi-Purpose Pin
  • Rotational Life (Cycles Min): 10M
  • Base Number: ENC1D

Product Identification

Product Type:Rotary Optical Encoder
Family:EN

Dimensions & Appearance

Depth:18.50 mm
Height:15.88 mm
Length:21.21mm
Shaft Diameter:1/8 in, 0.125 in, 3.18 mm
Shaft Style:Round
Mounting:Panel Mount, PCB
Body Orientation:Vertical

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:75°C

Input

Input Voltage:5 VDC

Output

Index output:Not Indexed
Output Type:Quadrature (2-Bit), Channel A leads Channel B by 90°

Features

Mechanical Life:10M Cycles
Built In Switch:No
Detents:No
Encoder Code:Optical
Encoder Reading:Square Wave
Maximum Operating Torque:1.5oz-in
Motion:Rotary
Programmable:No
Pulses per Revolution:128
Termination Style:PC Pins
Speed:N/A
,
