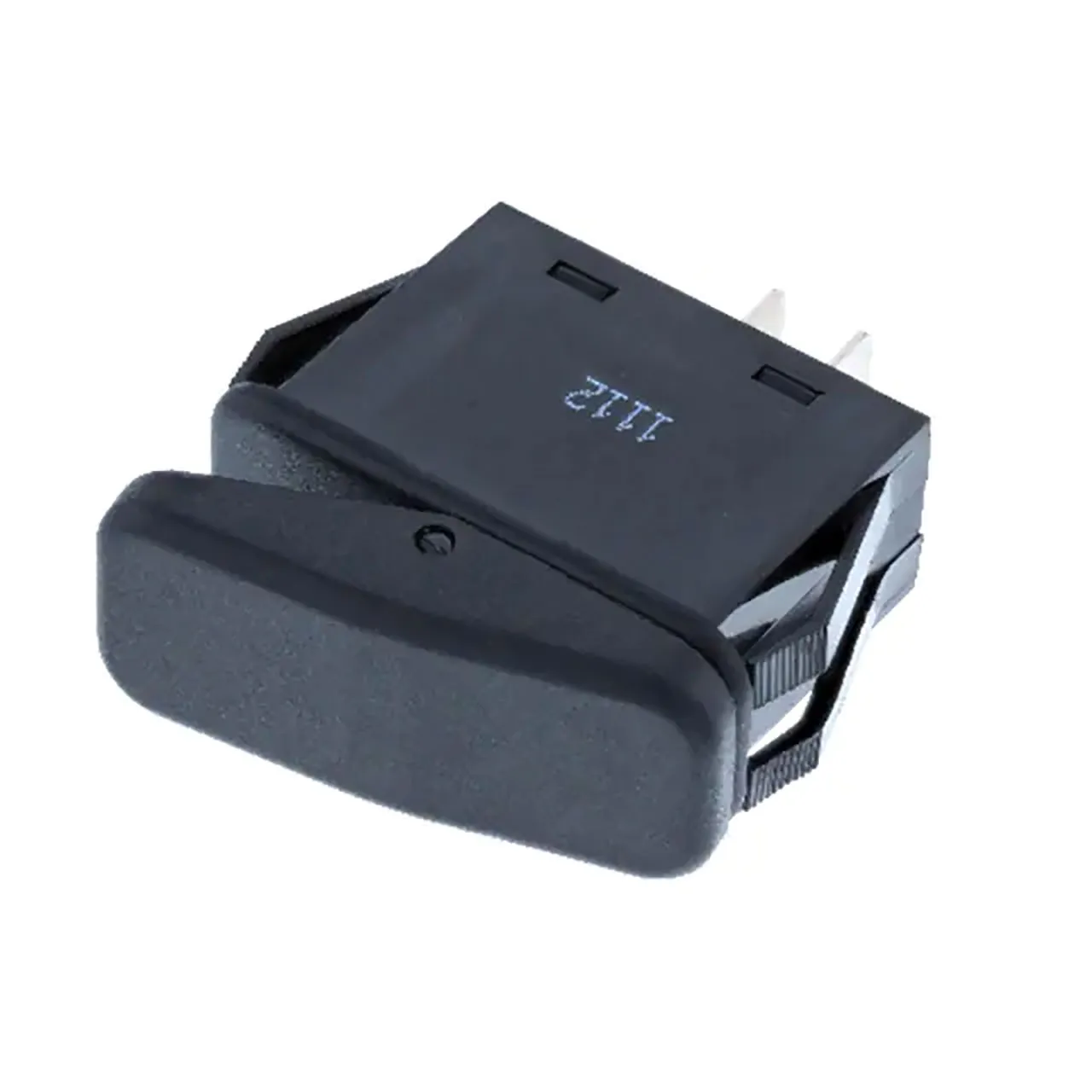

Rocker Switch SPST-NO OFF-(ON) 10A 28VDC Snap-In Panel Mount 0.25 Quick Connect IP56

Specifications

  • Series: SRC1
  • Mounting Type: Panel Mount, Snap-In
  • Circuit: SPST-NO
  • Switch Function: OFF-(ON) aka OFF-MOM
  • Current Rating: 10 A
  • Voltage Rating: 28 VDC
  • Actuator Type: Convex (Reverse V)
  • Color - Actuator/Cap: Black
  • Actuator Marking: No Marking
  • Termination Style: Quick Connect - 0.250" (6.3 mm)
  • Ingress Protection: IP56 - Dust Protected, Water Resistant
  • Panel Cutout Dimensions: Rectangular - 36.80mm x 15.30mm
  • Operating Temperature: -20°C to 85°C
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 6,000 Cycles

Product Identification

Product Type:Rocker Switch

Dimensions & Appearance

Mounting Style:Panel Mount, Snap-In
Height:0.47 in.
Depth:1.24 in.
Width:0.71 in.
Length:1.65 in.
Body Color:Black

Features

Pins:2
Switch Function:OFF-(ON)
Color - Actuator/Cap:Black (No Marking)
Termination Style:Quick Connect - 0.250" (6.3mm)
Lead Spacing A (inch):0.270
UL Flammability Code:N/A
Illumination Type:None
IP Rating:IP56 - Dust Protected, Water Resistant
Actuator Type:Convex (Reverse V)
Actuator Length:0.390 in.
Contact Form:SPST-NO
Current Rating:20A @ 14VDC, 10A @ 24VDC, 20A @ 125VAC
,
