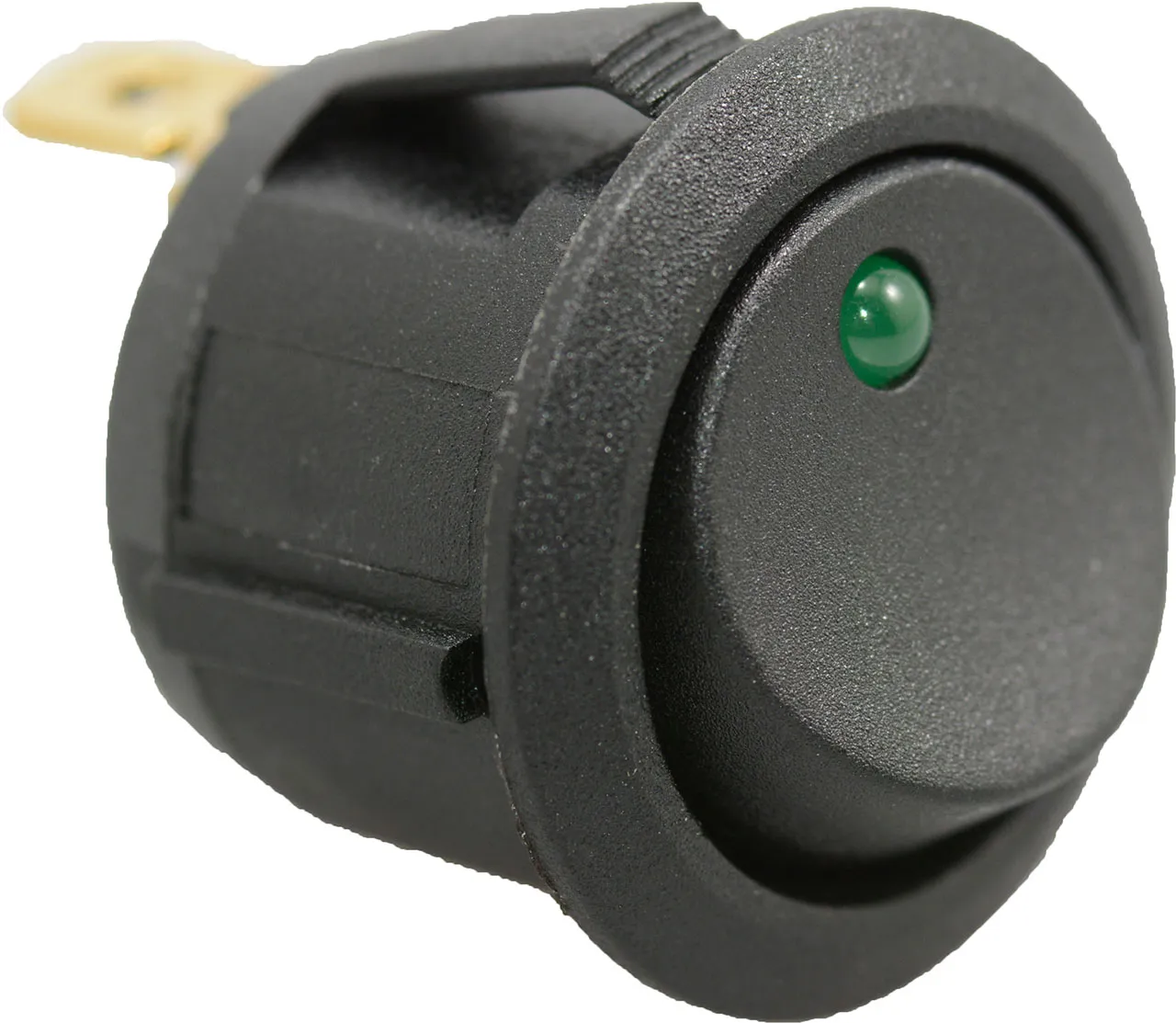

Rocker Switch SPST ON-OFF 20A 14VDC Green LED Dot Snap-In Panel Mount 0.187 Quick Connect

Specifications

  • Series: RA2
  • Mounting Type: Panel Mount, Snap-In
  • Circuit: SPST
  • Switch Function: ON-OFF
  • Current Rating: 20 A
  • Voltage Rating: 14 VDC
  • Actuator Type: Round - Illuminated
  • Color - Actuator/Cap: Black (with green dot LED)
  • Actuator Marking: No Marking
  • Illumination Type, Color: LED, Green
  • Illumination Voltage (Nominal): 14 VDC
  • Termination Style: Quick Connect - 0.187" (4.7 mm)
  • Panel Cutout Dimensions: Circular - 20.2 mm Diameter
  • Operating Temperature: -25°C to 85°C
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 6,000 Cycles

Product Identification

Product Type:Rocker Switch

Dimensions & Appearance

Mounting Style:Panel Mount, Snap-In
Height:0.25 in.
Depth:0.90 in.
Width:0.91 in.
Length:0.91 in.
Body Color:Black

Features

Pins:2
Termination Style:0.187" Quick Connect
Illumination Type:LED
UL Flammability Code:94V-2
Lead Spacing A (inch):0.280
Color - Actuator/Cap:Black with Green LED
Switch Function:ON-OFF
Actuator Length:0.150 in.
Actuator Type:Illuminated Rocker, Round +LED
IP Rating:none
Contact Form:SPST
Current Rating:20A @ 14VDC
,
