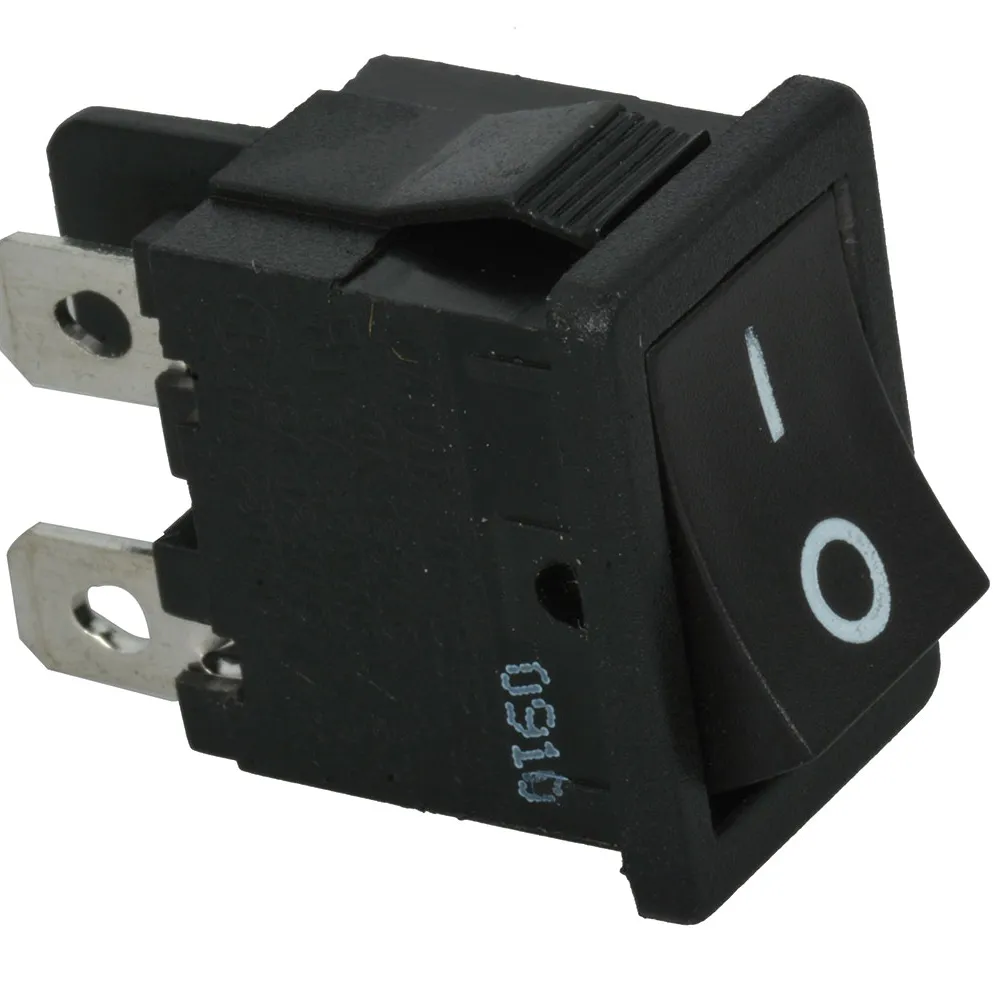

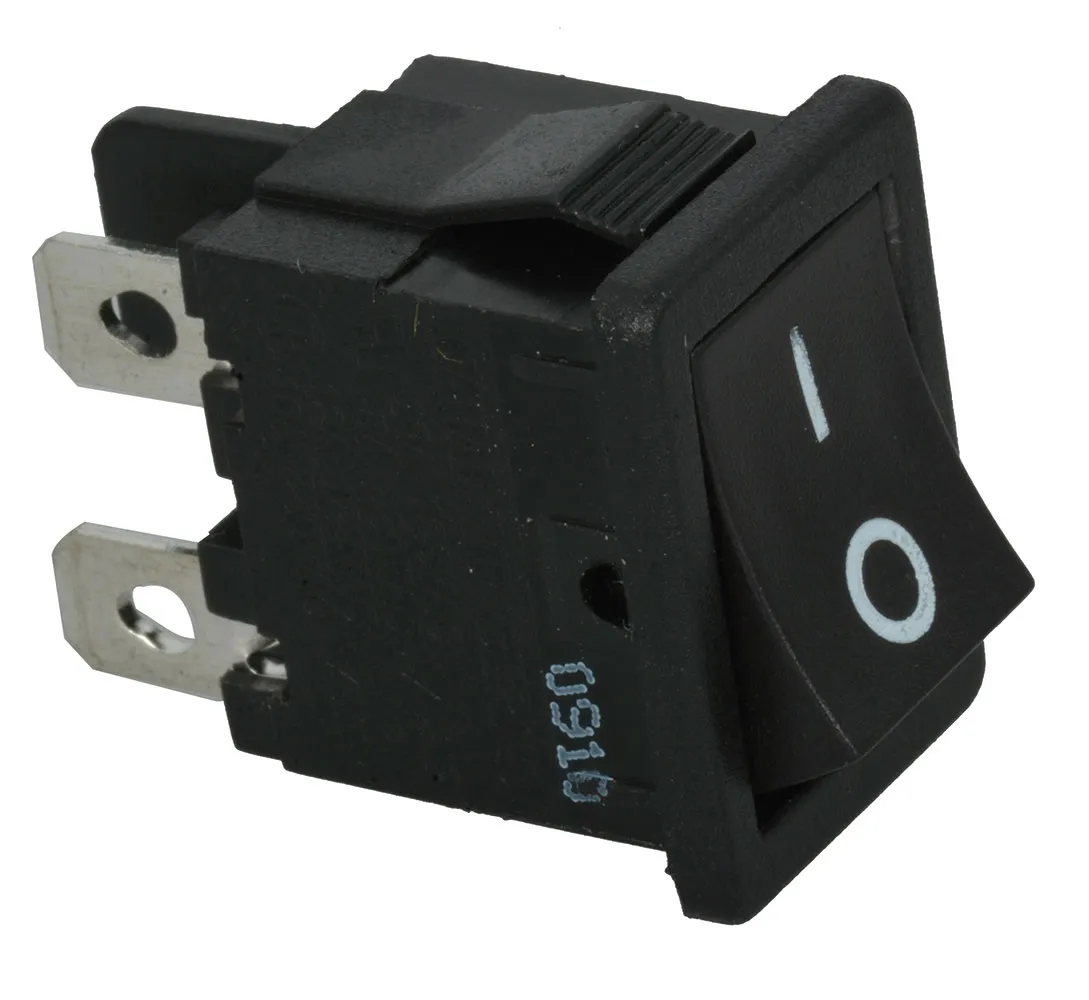

Rocker Switch SPST ON-OFF 12A 125VAC Panel Mount Snap-In

Specifications

  • Series: MR
  • Circuit: SPST
  • Switch Function: ON-OFF
  • Current Rating: 12A (AC)
  • Voltage Rating - AC: 125V
  • Actuator Type: Concave (Curved)
  • Color - Actuator/Cap: Black
  • Actuator Marking: O - I
  • Illumination Type, Color: N/A
  • Illumination Voltage (Nominal): N/A
  • Mounting Type: Panel Mount, Snap-In
  • Termination Style: Quick Connect - 0.187" (4.7mm)
  • Ingress Protection: N/A
  • Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm
  • Operating Temperature: -20°C to 80°C
  • Mechanical Life: N/A
  • Electrical Life: 10,000 Cycles

Product Identification

Product Type:Rocker Switch

Dimensions & Appearance

Mounting Style:Panel Mount
Depth:0.56 in.
Width:0.59 in.
Length:0.83 in.
Height:x0.4 in.
Body Color:Black

Features

Pins:2
Lead Spacing B (inch):0.24
Termination Style:0.187" Quick Connect
Lead Spacing A (inch):0.36
UL Flammability Code:94V-2
Color - Actuator/Cap:Black (with Marking)
Illumination Type:None
Switch Function:ON-OFF
IP Rating:none
Actuator Length:0.32 in.
Contact Form:SPST
Actuator Type:Rocker
Current Rating:10A @ 125VAC, 8A @ 250VAC
,
