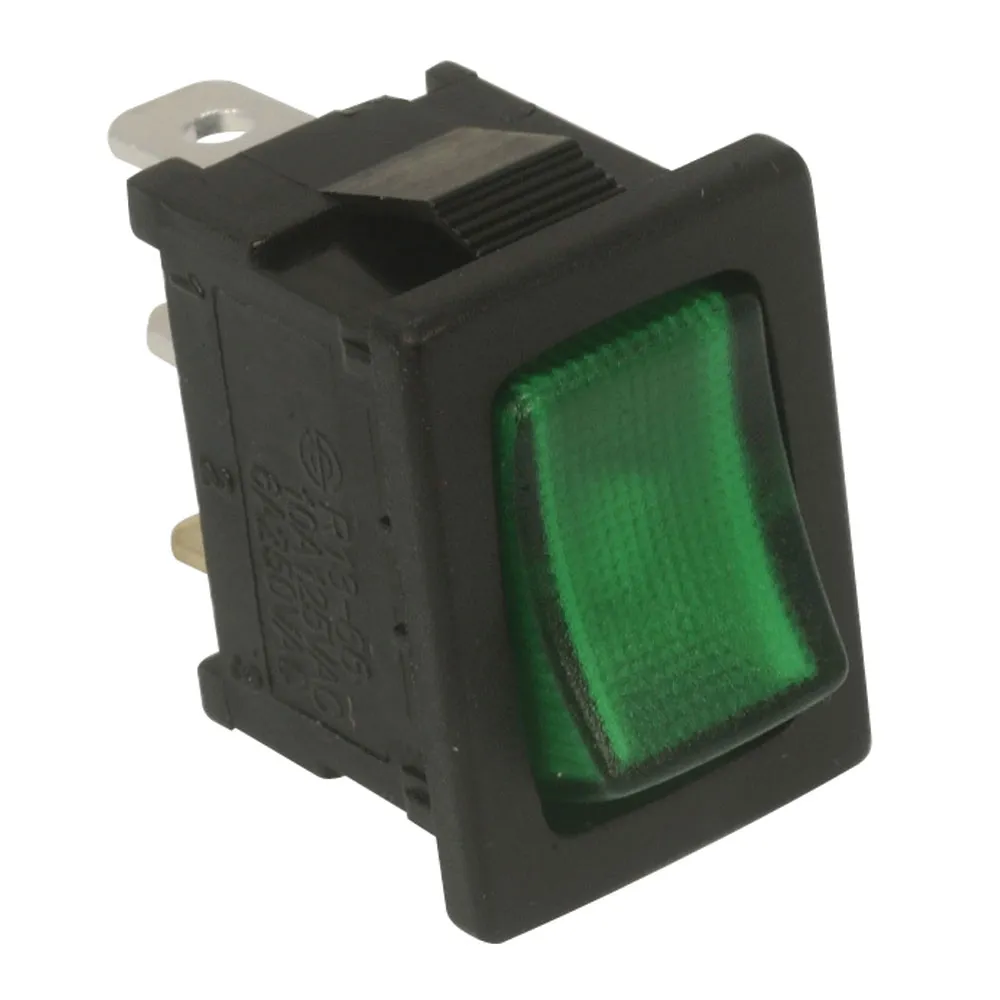

Panel Mount Rocker Switch

Features

  • Contact form: SPST ON-OFF
  • Contact rating: 9A @ 125VAC
  • Dimensions: 0.83"L x 0.59"W x 0.47"D
  • Number of pins: 3
  • 0.187" quick connect terminals
  • Rocker color: Illuminated Green

    Connection

  • Pin 1A: AC Line
  • Pin 1: Load
  • Pin 2: AC Neutral (illumination)

    • Product Identification

    Product Type:Rocker Switch

    Dimensions & Appearance

    Mounting Style:Panel Mount
    Depth:0.594 in.
    Height:0.778 in.
    Width:0.512 in.
    Length:1.093 in.
    Body Color:Black

    Features

    Lead Spacing B (inch):0.315
    Pins:2
    Lead Spacing A (inch):0.354
    Termination Style:0.187" Quick Connect
    UL Flammability Code:94V-2
    Illumination Type:Neon Lamp
    Switch Function:ON-OFF
    Actuator Length:0.146 in.
    Actuator Type:Illuminated Rocker
    IP Rating:none
    Color - Actuator/Cap:Green (I O Marking)
    Contact Form:SPST
    Current Rating:9A @ 125VAC, 8A @ 250VAC
    ,
