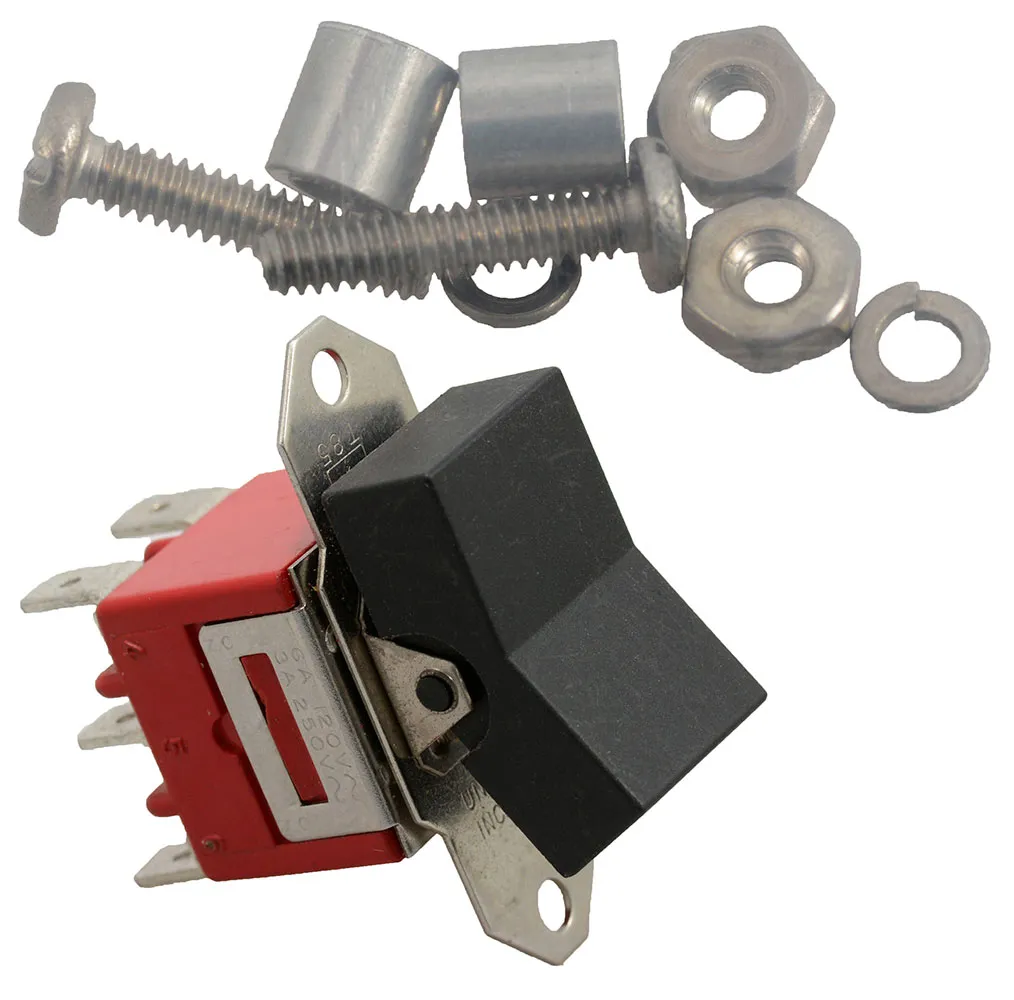

Rocker Switch DPDT ON-ON 6A 125VAC 30VDC Panel Mount Flange QC

Specifications

  • Circuit: DPDT
  • Switch Function: ON-ON
  • Voltage Rating - AC: 125 V
  • Voltage Rating - DC: 30 V
  • Current Rating (Amps): 6 A (AC/DC)
  • Actuator Type: Concave (Standard V)
  • Color - Actuator/Cap: Black
  • Actuator Marking: No Marking
  • Mounting Type: Panel Mount, Flange
  • Termination Style: Quick Connect
  • Features: Epoxy Sealed Terminals
  • Ingress Protection: n/a
  • Panel Cutout Dimensions: Rectangular - 34.93 mm x 16.46 mm
  • Operating Temperature: -30°C to 85°C
  • Mechanical Life: n/a
  • Electrical Life: 25,000 Cycles

Product Identification

Product Type:Rocker Switch

Dimensions & Appearance

Mounting Style:Panel Mount, Flange
Depth:0.65 in.
Height:1 in.
Length:0.75 in.
Width:0.75 in.
Body Color:Red

Features

UL Flammability Code:94V-0
Pins:6
Termination Style:0.187" Quick Connect
Color - Actuator/Cap:Black
Lead Spacing A (inch):0.360
Illumination Type:None
Switch Function:ON-ON
IP Rating:none
Contact Form:DPDT
Actuator Length:0.351 in.
Actuator Type:Rocker
Current Rating:6A @ 125VAC, 3A @ 250VAC
,
