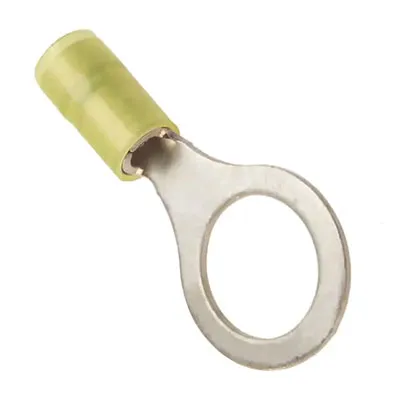

Ring Terminal Connector 1/2 Stud Circular 12-10 AWG Yellow Crimp

Specifications

  • Series: AviKrimp
  • Terminal Type: Circular
  • Stud/Tab Size: 1/2 Stud
  • Thickness: 0.040" (1.02 mm)
  • Width - Outer Edges: 0.760" (19.30 mm)
  • Length - Overall: 1.580" (40.13 mm)
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Wire Gauge: 12-10 AWG
  • Insulation: Insulated
  • Features: Serrated Termination
  • Color: Yellow
  • Contact Material: Copper
  • Contact Finish: Tin
  • Insulation Diameter: 0.225" (5.72 mm)
  • Material - Insulation: Polyamide (PA), Nylon
  • Base Part Number: 019073

Product Identification

Manufacturer Series:ValuePro
Product Type:Ring Tongue

Dimensions & Appearance

Body Material:Copper
Color:Yellow
Width:0.760 in.
Length:1.580 in.

Features

Stud Size:1/2
Insulation:Nylon
Wire Gauge (AWG):12-10
Gender:N/A
Plating:Tin
,
