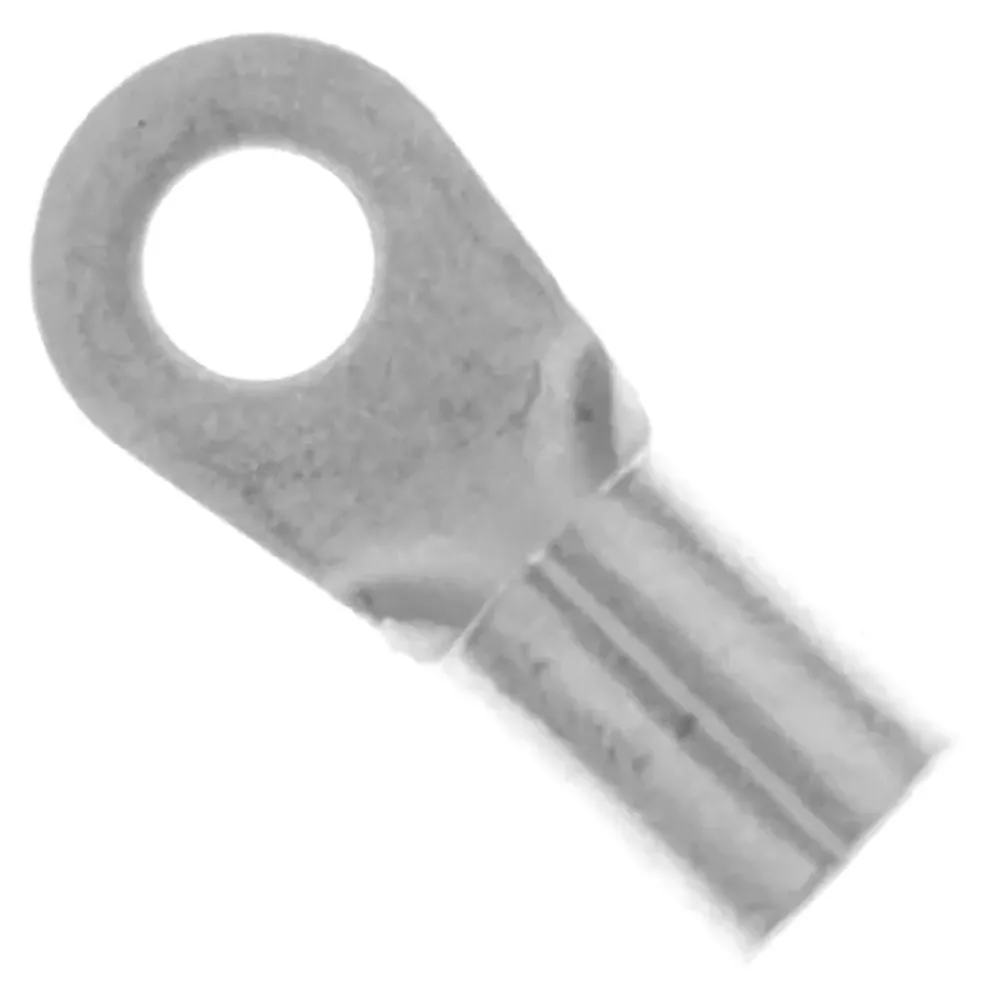

Ring Terminal 10 Stud Circular 8 AWG Crimp Non-Insulated

Specifications

  • Series: Solistrand
  • Terminal Type: Circular
  • Stud/Tab Size: 10 Stud
  • Thickness: 0.048" (1.22 mm)
  • Width - Outer Edges: 0.406" (10.31 mm)
  • Length - Overall: 0.949" (24.1 mm)
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Wire Gauge: 8 AWG
  • Insulation: Non-Insulated
  • Features: Brazed Seam, Serrated Termination
  • Color: n/a
  • Contact Material: Copper
  • Contact Finish: Tin
  • Base Number: 3180

Product Identification

Product Type:Ring Tongue

Dimensions & Appearance

Width:0.406 in.
Color:Zinc-Chromate
Length:0.949 in.
Body Material:Copper

Features

Insulation:Non-Insulated
Wire Gauge (AWG):8
Stud Size:10
Gender:N/A
Plating:Tin
,
