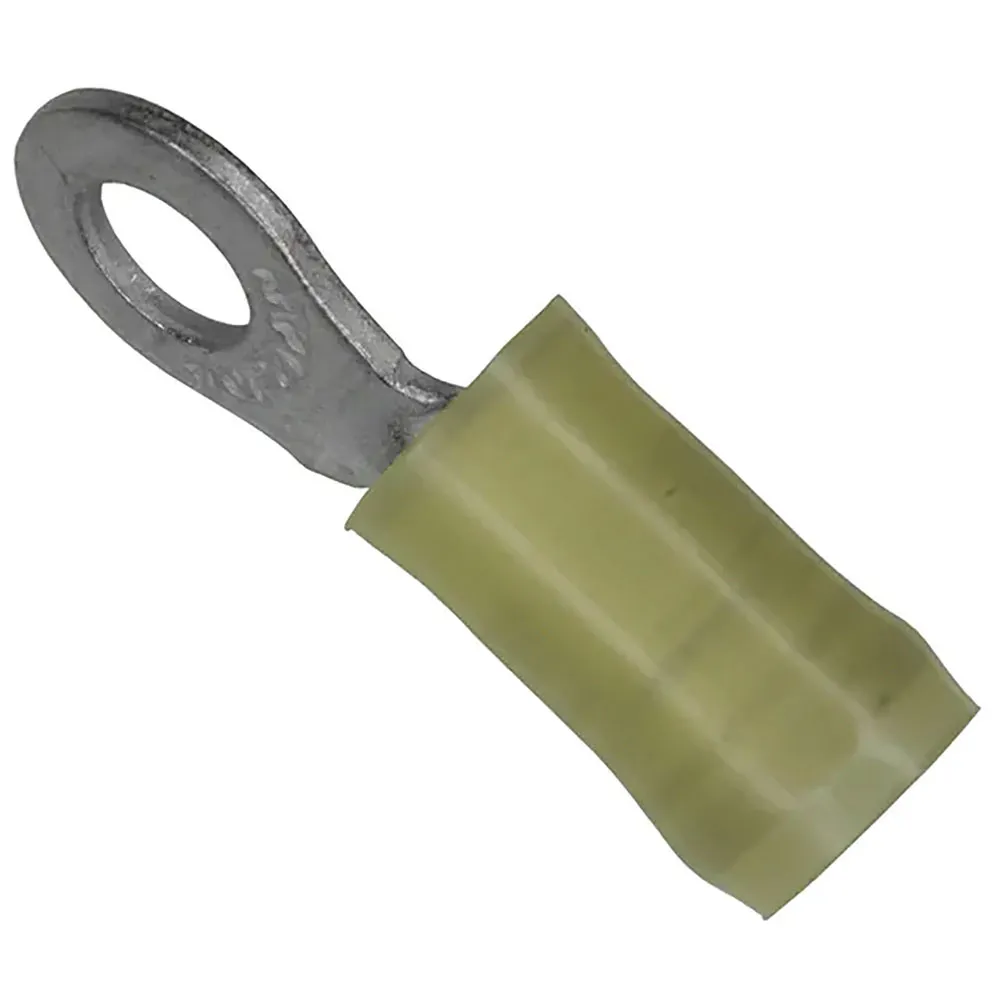

Ring Terminal 10 Stud Circular 10-12 AWG Crimp Insulated Yellow

Specifications

  • Series: PIDG
  • Terminal Type: Circular
  • Stud/Tab Size: 10 Stud
  • Thickness: 0.039" (0.99 mm)
  • Width - Outer Edges: 0.375" (9.53 mm)
  • Length - Overall: 1.083" (27.51 mm)
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Wire Gauge: 10-12 AWG
  • Insulation: Insulated
  • Features: Serrated Termination
  • Color: Yellow
  • Contact Material: Copper
  • Contact Finish: Tin
  • Insulation Diameter: 0.105" to 0.23" (2.67 mm to 5.84 mm)
  • Material - Insulation: Polyamide (PA), Nylon

,
