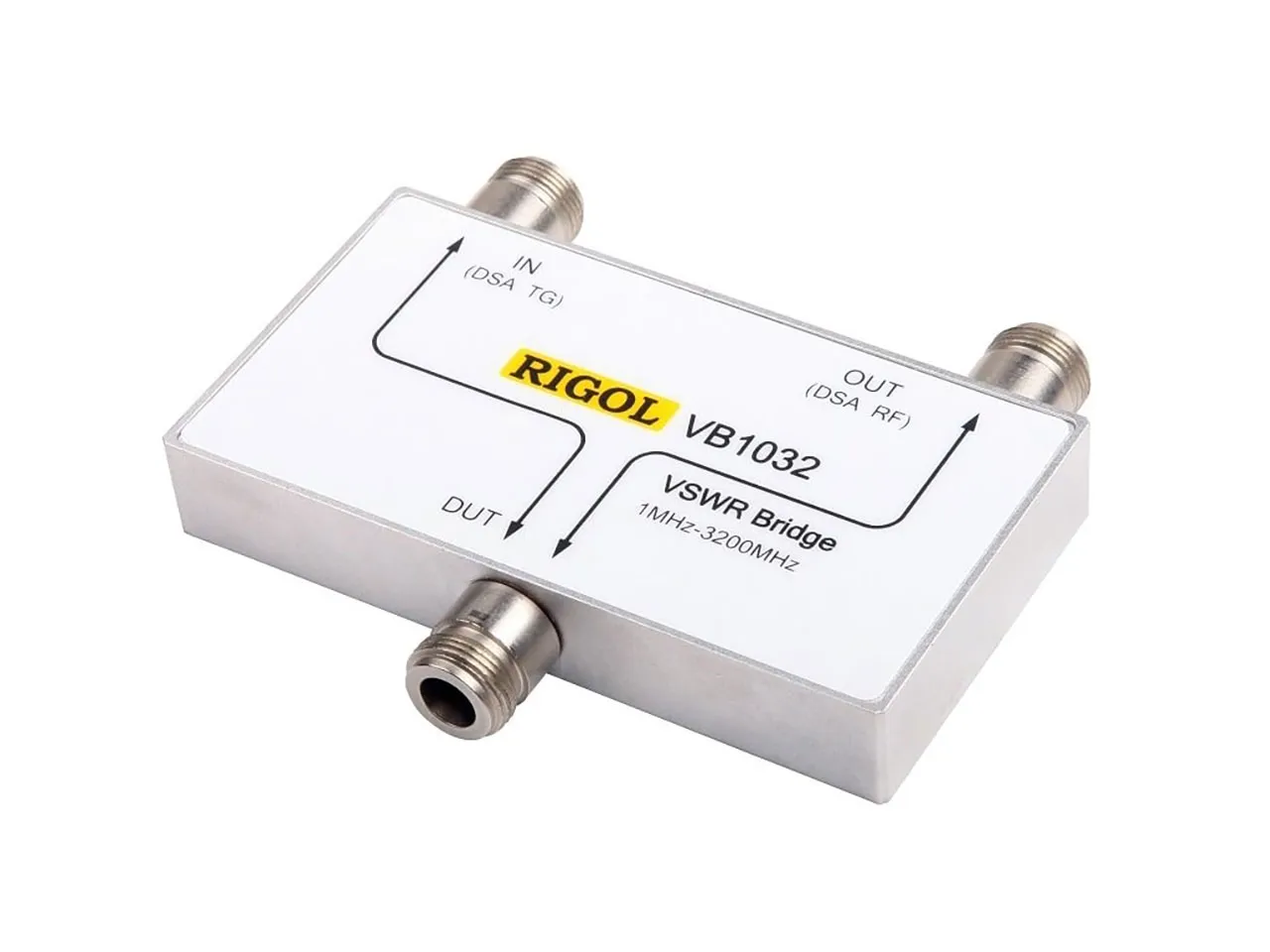

1MHz-3.2GHz Rigol VSWR Bridge with Software (VB1032)

Features

• Frequency range: 1 MHz - 3.2 GHz
• Connector Type: N (Female) Type
• Adaptor: Dual N (Male) Type
• Typical Directivity: 30 dB
• For DSA815-TG, DSA815, DSA832E-TG, DSA832E, DSA832-TG and DSA832
• Used together with Rigol DSA series spectrum analyzers with tracking generators to make S11 measurements

Overview

For S11 measurements, the Rigol VSWR bridge is utilized in conjunction with the Rigol DSA series spectrum analyzers with tracking generators (return loss, reflection coefficient, VSWR). To increase test accuracy and do away with cords, the VSWR bridge attaches directly to the front of Rigol DSA series spectrum analyzers with tracking generators.
