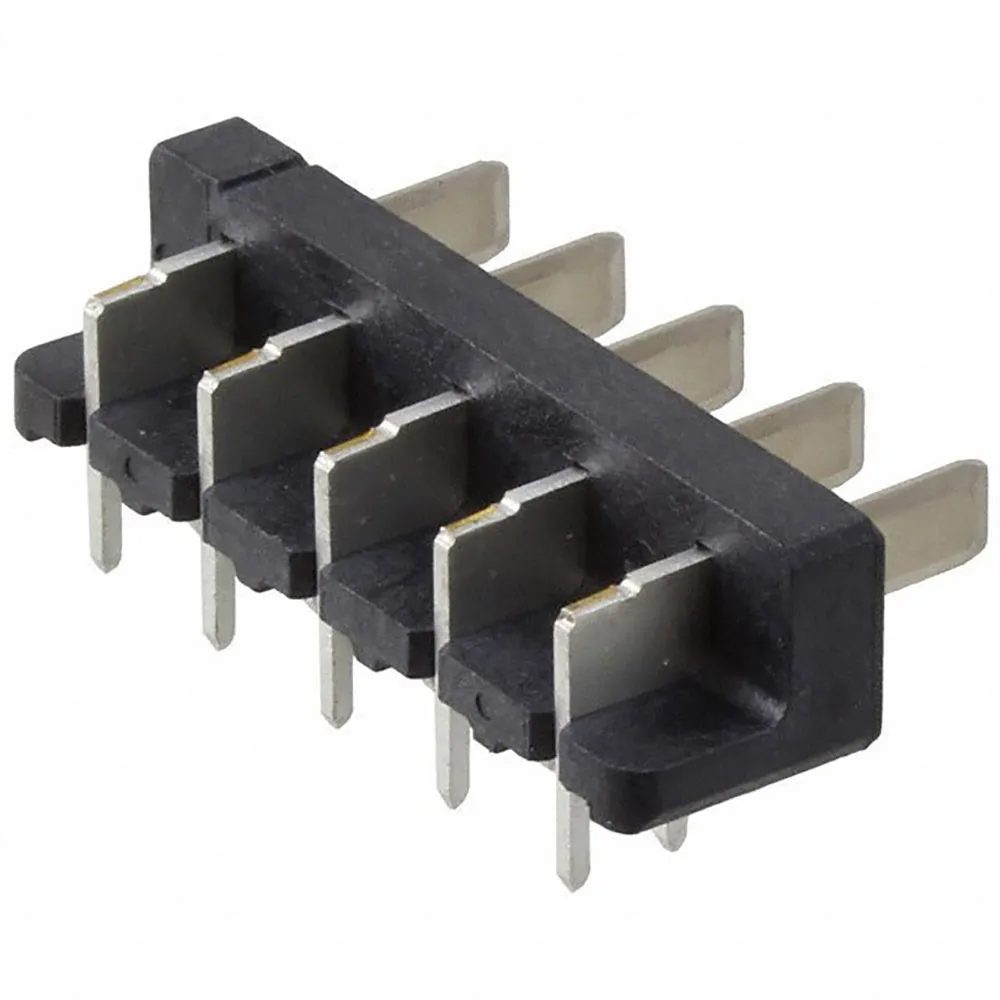

Right Angle Header Connector 5.00mm Male Blades

Specifications:

  • Number of Positions: 5
  • Pitch: 0.197" (5.00mm)
  • Rated Current: 7A
  • Rated Voltage: 50V
  • Color: Black
  • Contact Material: Brass
  • Contact Finish: Nickel
  • Bottom Termination: PC Pins, Solder
  • Insulation Material: Liquid Crystal Polymer (LCP)

Product Identification

Manufacturer Series:ValuePro

Dimensions & Appearance

Depth:13.85 mm
Height:6.8 mm
Length:27.02 mm
Mounting:Through Hole
Body Orientation:Right Angle

Features

Number of Rows:1
Housing Color:Black
Contact Material:Brass
Number of Positions:5
Top Termination:Press-Fit
Bottom Termination:PC Pins
Pitch:0.197 in., 5 mm
Housing Material:LCP
Contact Plating:Tin
Gender:Male
Description:Plug
Voltage Rating:50 VAC
Current Rating:7 A
,
