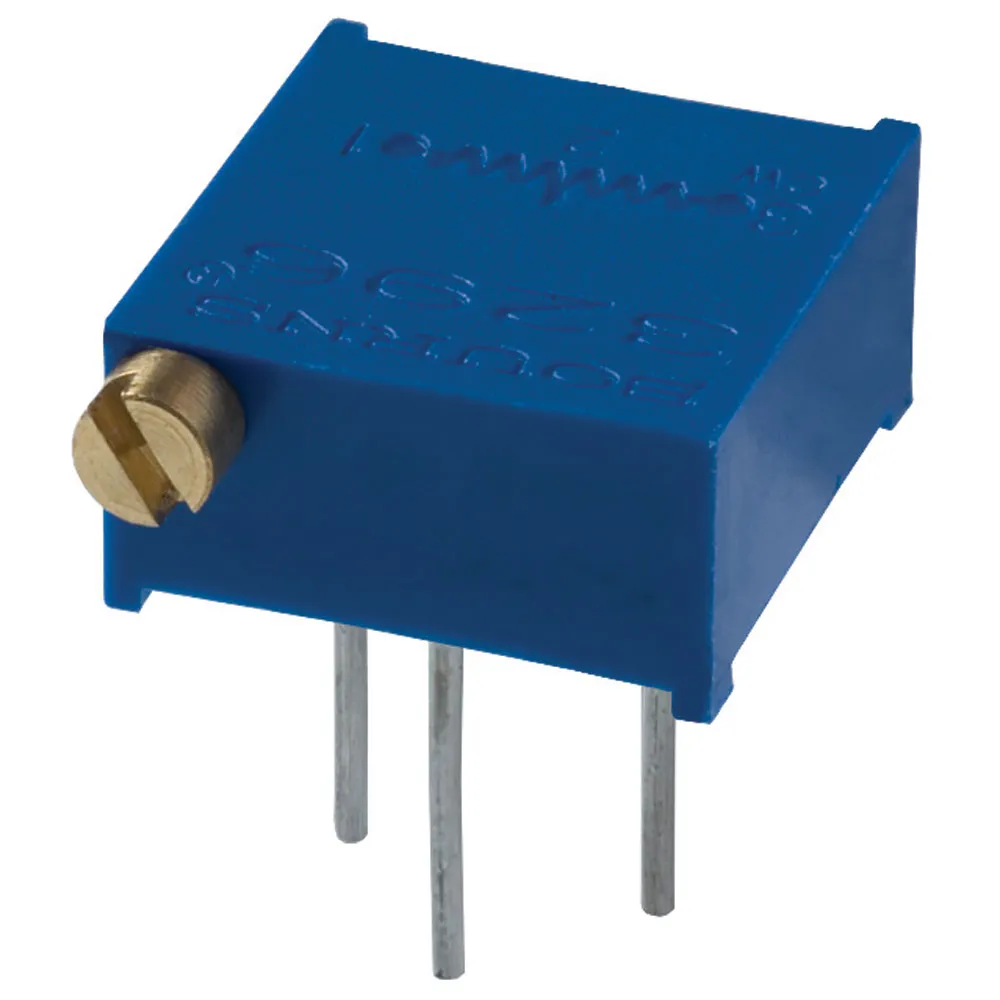

3/8 Inch Square 25 Turn 3296P Series Cermet Trimmer Potentiometer
Specifications
- Series: 3296P
- Ohms: 5000
- Shape : Square
- Size (inch): 3/8
- Watts: 1/2
- Number of Turns: 25
- Resistance Tolerance (±): 10%
- Temperature Range (C): -55 to 125
- Insulation Resistance: 1000M (Ω) min. (500VDC)
- Absolute Minimum Resistance: 2(Ω)
- Side Adjust
Product Identification
Family:P
Product Type:Trimmer
Manufacturer Series:3296
Dimensions & Appearance
Mounting:Through Hole
Width:11.55 mm
Height:4.83 mm
Length:9.53 mm
Shaft Diameter:2.19 mm
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-55°C
Features
Taper:Linear
Resistive Element Material:Cermet
Actuator Orientation:Side
Resistance (Ohm):5000
Number of Turns:25
Tolerance:10%
Temperature Coefficient:100 ppm/°C
Technology:Sealed
Power Rating:0.50 W
Resistance:5 KOhm
Termination Style:Pins
Actuator Type:Side Slot
