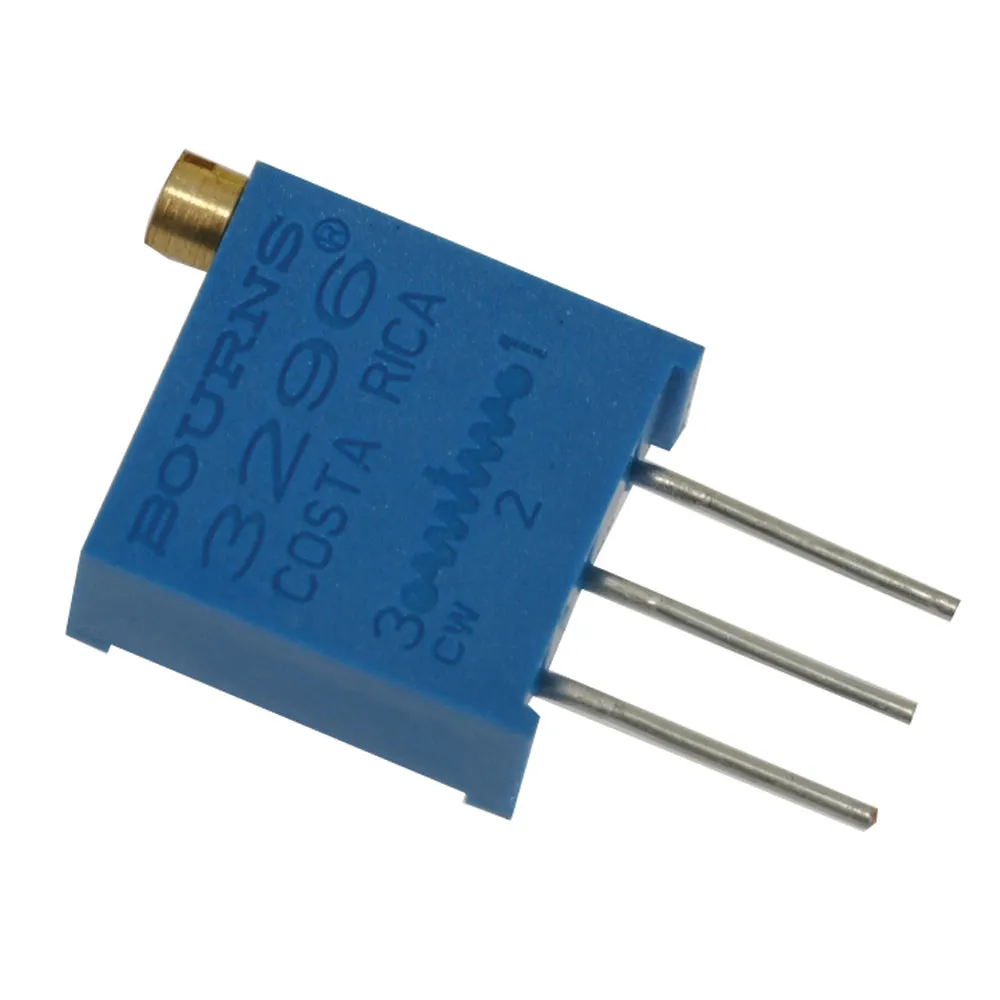

1MΩ 25-Turn Sealed Cermet Trimmer Potentiometer


Features:

  • Value: 1MΩ
  • 1/2 watt
  • 3/8" rectangular
  • 25-turn top adjustment
  • 3 pins

    • Product Identification

    Product Type:Trimmer
    Manufacturer Series:3296
    Family:W

    Dimensions & Appearance

    Height:11.55 mm
    Width:4.83 mm
    Length:9.53 mm
    Shaft Diameter:2.19 mm
    Mounting:Through Hole

    Operating conditions

    Maximum Operating Temperature:150°C
    Minimum Operating Temperature:-55°C

    Features

    Taper:Linear
    Resistive Element Material:Cermet
    Resistance (Ohm):1000000
    Actuator Orientation:Top
    Resistance:1 MOhm
    Number of Turns:20
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Technology:Sealed
    Power Rating:0.50 W
    Termination Style:Pins
    Actuator Type:Top Slot
    ,
