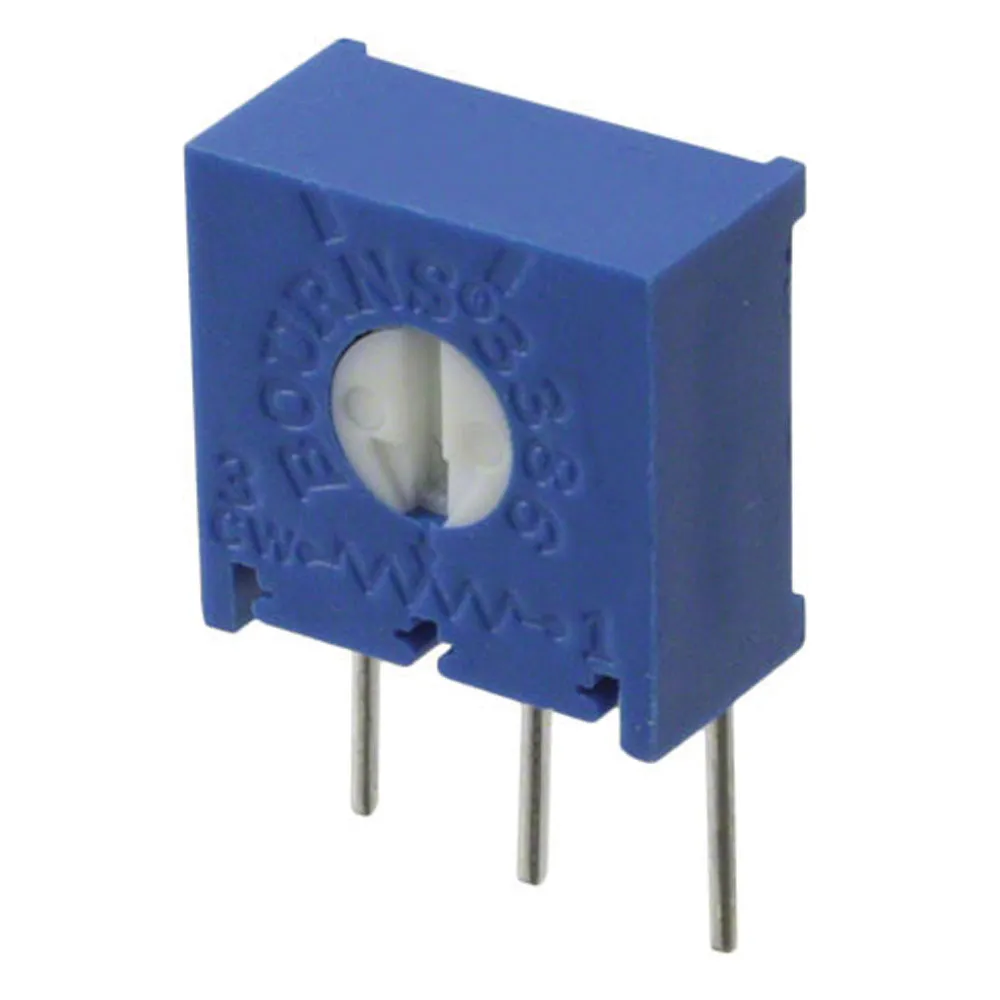

1/2-Watt, 3/8" Square, Trimming Potentiometer (±10%)
3386B - Side adjust, in-line solder pins

  • Resistance tolerance: ±10%
  • Insulation resistance (500VDC): 1,000MΩ min.
  • Absolute min. resistance: 2Ω max.
  • Adjustment angle: 280° nominal
  • Power rating: 0.5W @ 85°C (300V max.)
  • Temperature range: -55°C to 125°C
  • 200Ω

    • Product Identification

    Family:B
    Product Type:Trimmer
    Manufacturer Series:3386

    Dimensions & Appearance

    Mounting:Through Hole
    Width:4.83 mm
    Height:9.53 mm
    Length:9.53 mm
    Shaft Diameter:3.15 mm

    Operating conditions

    Maximum Operating Temperature:125°C
    Minimum Operating Temperature:-55°C

    Features

    Number of Turns:1
    Taper:Linear
    Resistive Element Material:Cermet
    Actuator Orientation:Side
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Technology:Sealed
    Resistance:2.5 KOhm
    Power Rating:0.50 W
    Resistance (Ohm):2500
    Termination Style:Pins
    Actuator Type:Side Slot
    ,
