Resistor Trimmer 1k Ohm 10% 1/2 Watt 25 Turn 2.19mm Pin Through Hole Tube

Jameco Part #:

Manufacturer #:

Product Price:

$1.250

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$1.250	-	-
10+	$1.090	0.16	12.8%
100+	$0.890	0.36	28.8%
500+	$0.790	0.46	36.8%

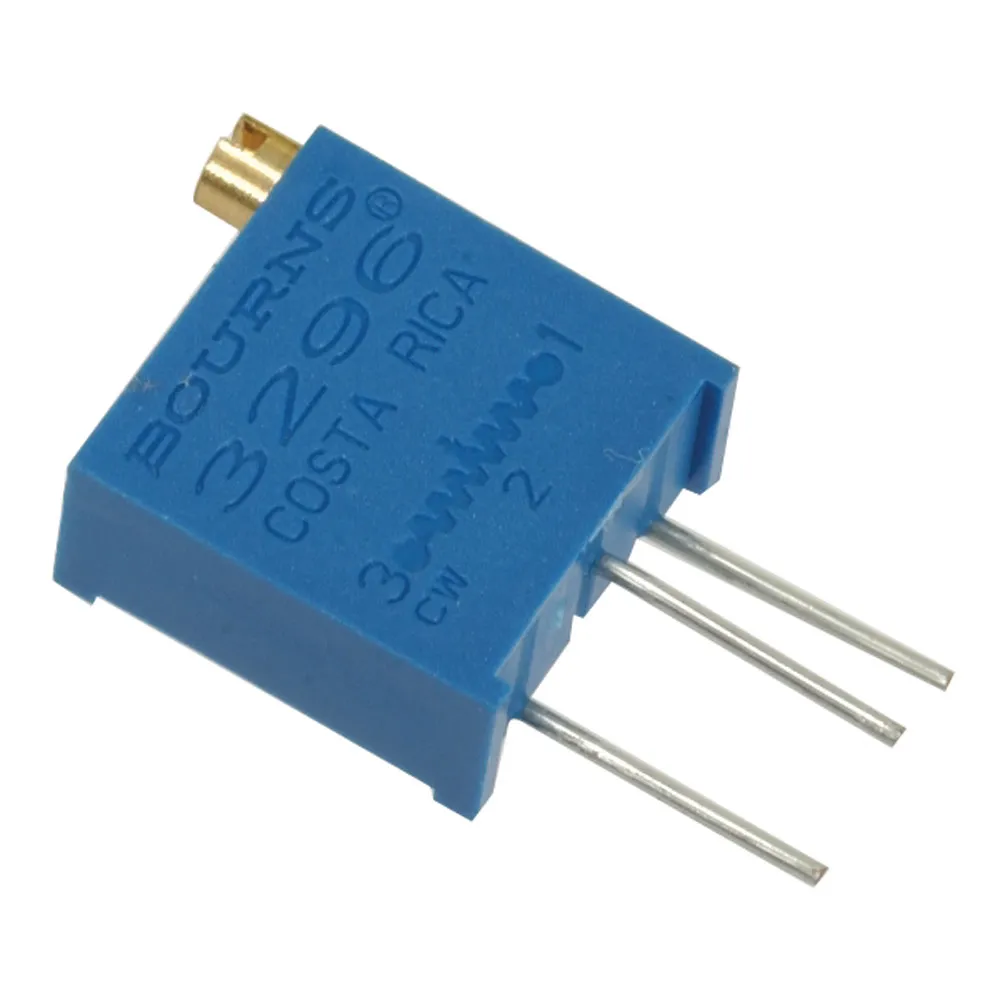

1KΩ Cermet Potentiometer

Resistance: 1KΩ

Tolerance:±10%

Power: 0.5W

Turns: 25

Product Type:Trimmer

Manufacturer Series:3296

Family:Y

Height:11.55 mm

Width:4.83 mm

Length:9.53 mm

Shaft Diameter:2.19 mm

Mounting:Through Hole

Maximum Operating Temperature:150°C

Minimum Operating Temperature:-55°C

Taper:Linear

Resistive Element Material:Cermet

Resistance:1 KOhm

Actuator Orientation:Top

Number of Turns:25

Resistance (Ohm):1000

Tolerance:10%

Temperature Coefficient:100 ppm/°C

Technology:Sealed

Power Rating:0.50 W

Termination Style:Pins

Actuator Type:Top Slot
