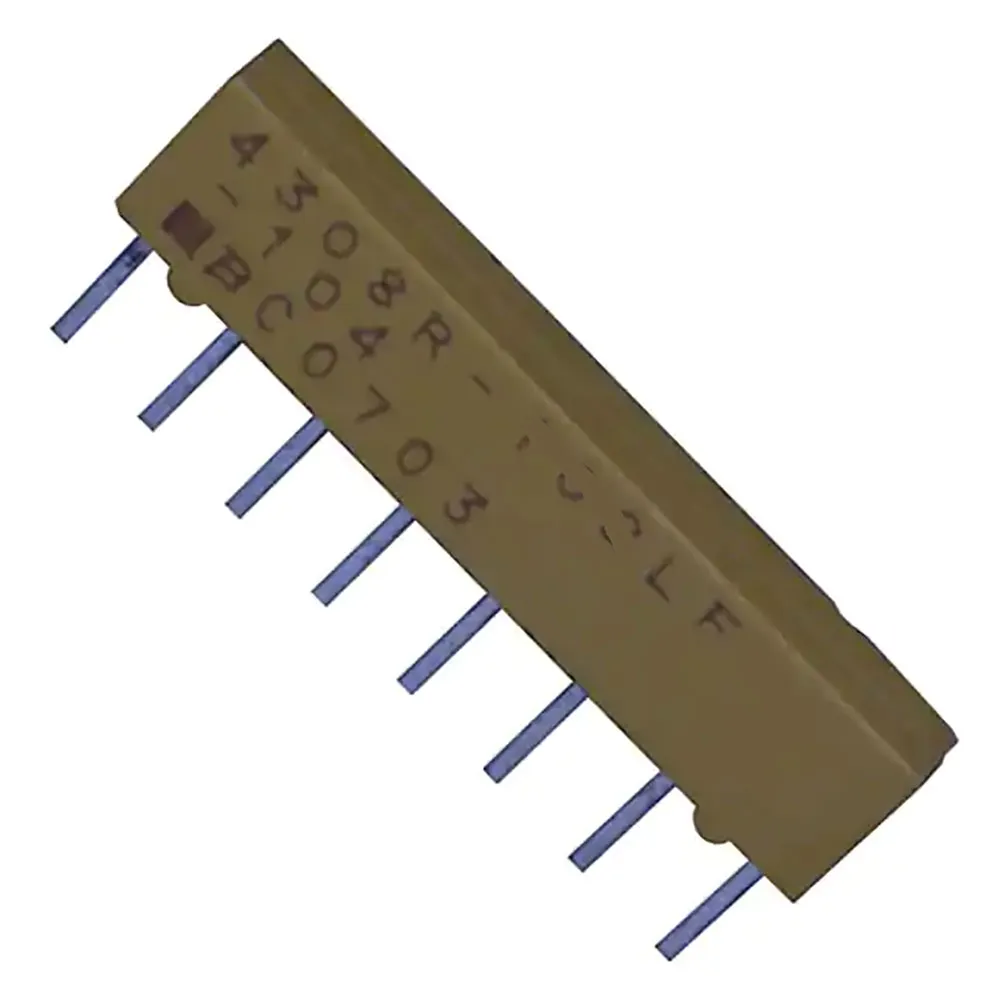

Resistor Network Array Isolated 470K Ohm 2% 300mW per Element SIP-8

Specifications

  • Series: 4300R
  • Circuit Type: Isolated
  • Resistance (Ohms): 470K (470,000)
  • Tolerance: ±2%
  • Number of Resistors: 4
  • Resistor-Ratio-Drift: 50 ppm/°C
  • Number of Pins: 8
  • Power Per Element: 300 mW
  • Temperature Coefficient: ±100 ppm/°C
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Package: 8-SIP
  • Size: 0.784" L x 0.085" W (19.91 mm x 2.16 mm)
  • Height - Seated (Max): 0.195" (4.95 mm)
  • Base Number: 4308R

Product Identification

Family:4300R

Features

Circuit Designator:Isolated
Number of Resistors:4
Power Rating per Resistor:0.300 W
Tolerance:2%
Number of Terminals:8
Technology:Thick Film
Power Rating:1 W
Resistance (Ohm):470000
Resistance:470 KOhm
,
