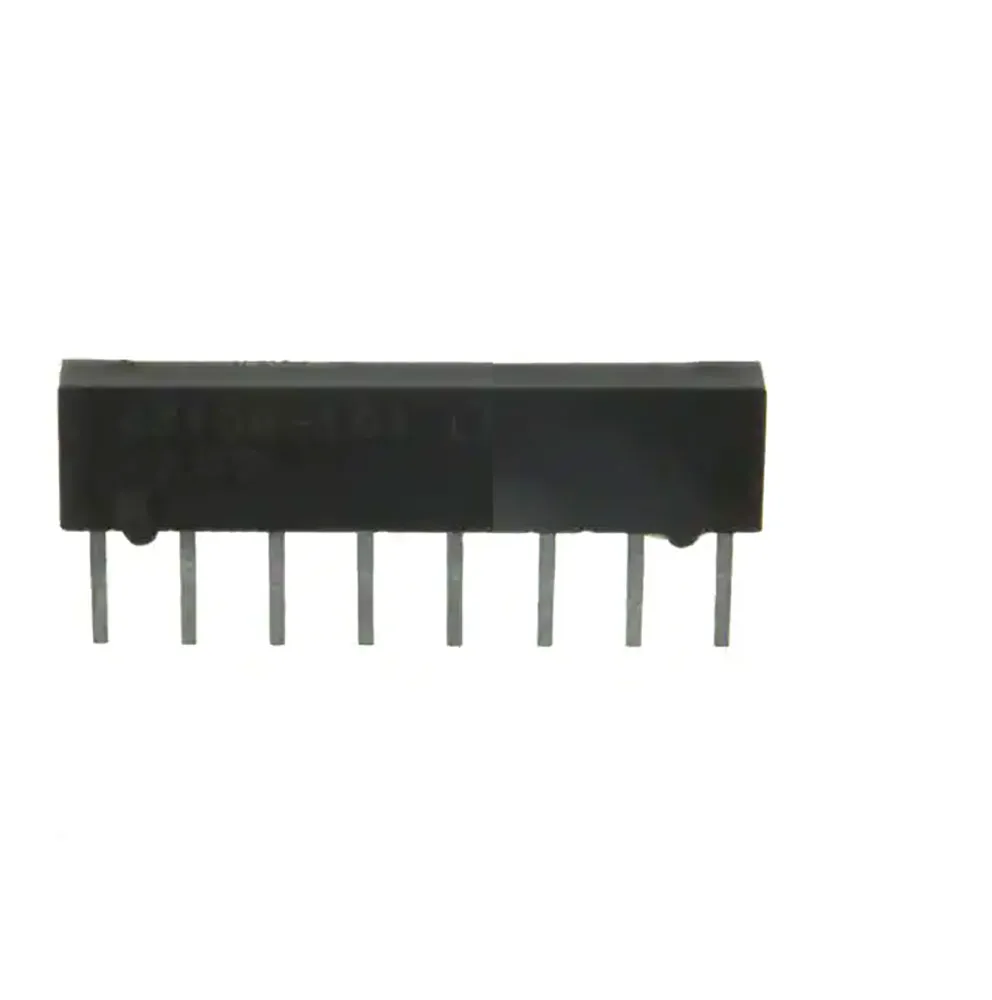

Resistor Network Array Bussed 1K Ohm 2% 250mW per Element 7 Resistor SIP-8

Specifications

• Series: 4300M
• Circuit Type: Bussed
• Resistance (Ohms): 1K (1,000)
• Tolerance: ±2%
• Number of Resistors: 7
• Resistor-Ratio-Drift: 50 ppm/°C
• Number of Pins: 8
• Power Per Element: 250 mW
• Temperature Coefficient: ±100 ppm/°C
• Operating Temperature: -55°C to 125°C
• Mounting Type: Through Hole
• Package: 8-SIP
• Size: 0.784" L x 0.085" W (19.91 mm x 2.16 mm)
• Height - Seated (Max): 0.250" (6.35 mm)
• Base Number: 4308M
