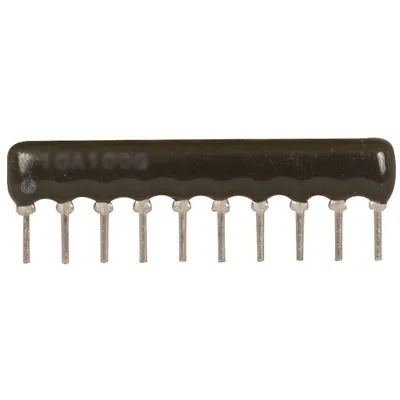

Resistor Network 390 Ohm 2% 125mW per Element Pull-Up/Pull-Down 4 Resistor SIP-10

Specifications

  • Series: 4300R
  • Circuit Type: Pull-Up, Pull-Down and Interface
  • Resistance (Ohms): 390
  • Tolerance: ±2%
  • Resistor-Ratio-Drift: 50 ppm/°C
  • Number of Pins: 10
  • Power Per Element: 125 mW
  • Temperature Coefficient: ±100 ppm/°C
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Package: 10-SIP
  • Dimension: 0.784" L x 0.09" W (19.91 mm x 2.29 mm)
  • Height - Seated (Max): 0.200" (5.08 mm)
  • Base Part Number: 420C

,
