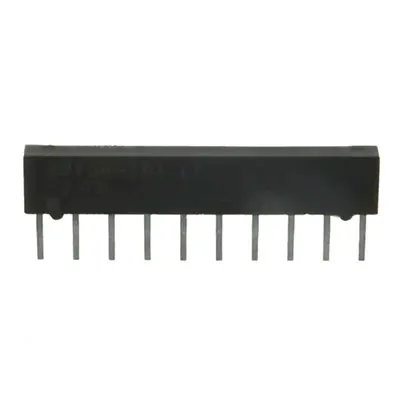

Resistor Network 33 Ohm 2% Isolated 300mW per Element Thick Film Molded SIP-10

Features

  • Series: 4300R
  • Circuit Type: Isolated
  • Resistance (Ohms): 33
  • Tolerance: ±2%
  • Number of Resistors: 5
  • Resistor-Ratio-Drift: 50ppm/°C
  • Number of Pins: 10
  • Power Per Element: 300mW
  • Temperature Coefficient: ±100 ppm/°C
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Supplier Package: 10-SIP
  • Size: 0.984" L x 0.085" W (24.99 mm x 2.16 mm)
  • Height - Seated (Max): 0.195" (4.95 mm)
  • Base Number: 4310R

Product Identification

Family:4300R

Features

Circuit Designator:Isolated
Number of Resistors:5
Power Rating per Resistor:0.300 W
Tolerance:2%
Number of Terminals:10
Technology:Thick Film
Power Rating:1.25 W
Resistance (Ohm):33
Resistance:33 Ohm
,
