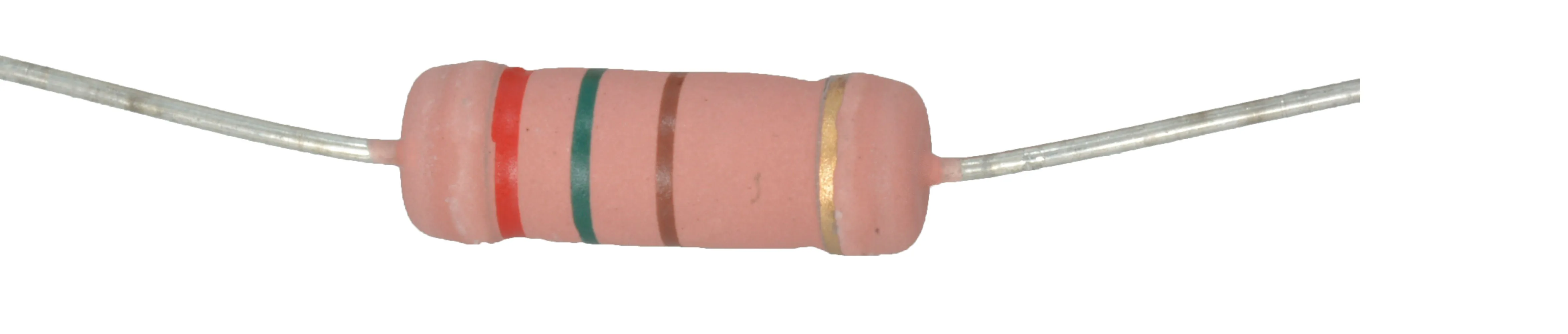

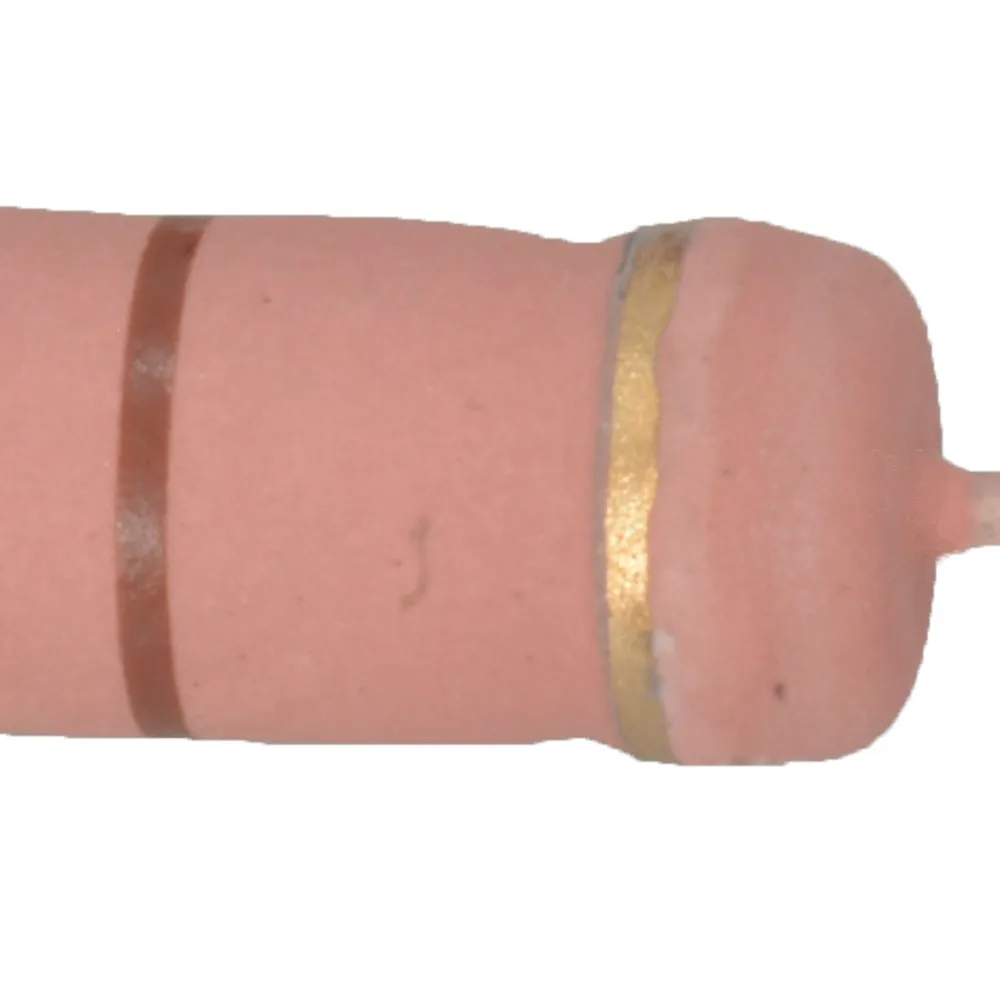

Resistor Metal Oxide 250 Ohm 5 Watt 5%
Specifications
- Resistance value: 250 ohms
- Power rating: 5 Watt
- Tolerance: 5%
- Package: Axial
Product Identification
Family:RSF
Additional Feature:Flame-proof UL-1412
Product Type:Fixed Resistor, Single
Dimensions & Appearance
Mounting:Through Hole
Diameter:6 mm
Length:17.5 mm
Operating conditions
Maximum Operating Temperature:235°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bulk
Features
Composition:Metal Oxide
Tolerance:5%
Temperature Coefficient:200 ppm/°C
Termination Style:Axial
Resistance (Ohm):250
Resistance:250 Ohm
Power Rating:5 W
Voltage Rating:1000 V
