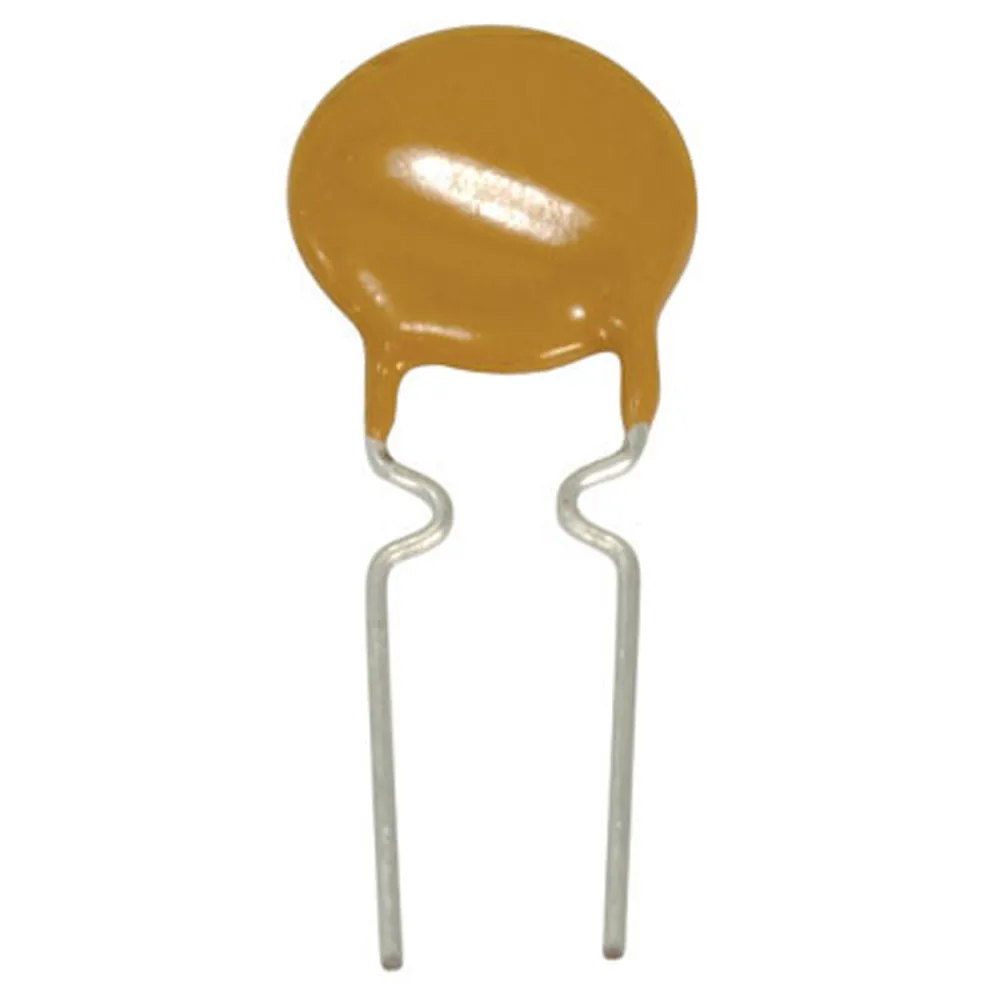

Resettable Fuse 1.60A-H 3.20A-T 40A-M 60VDC

Specifications

  • Radial Leaded, lower hold current, solid state
  • Operation current 100mA to 3.75A
  • Maximum voltage 60V
  • Temperature range -40°C to 85°C
  • Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirement

    Applications

  • Ideal for low voltage power supply with a load to be protected
  • Computers and peripherals
  • Security and fire alarm system
  • General electronics
  • Loud speakers
  • Automotive applications
  • Power transformers

    • Dimensions & Appearance

    Mounting Feature:Through Hole

    Features

    Terminal Placement:Radial
    Initial Resistance Ohms @ 23°C MIN:0.09
    Initial Resistance Ohms @ 23°C MAX:0.22
    Number of Terminals:2
    IHOLD (A):1.60
    ITRIP (A):3.20
    Voltage Rating:60 VDC
    Current Rating:40 A
    ,
