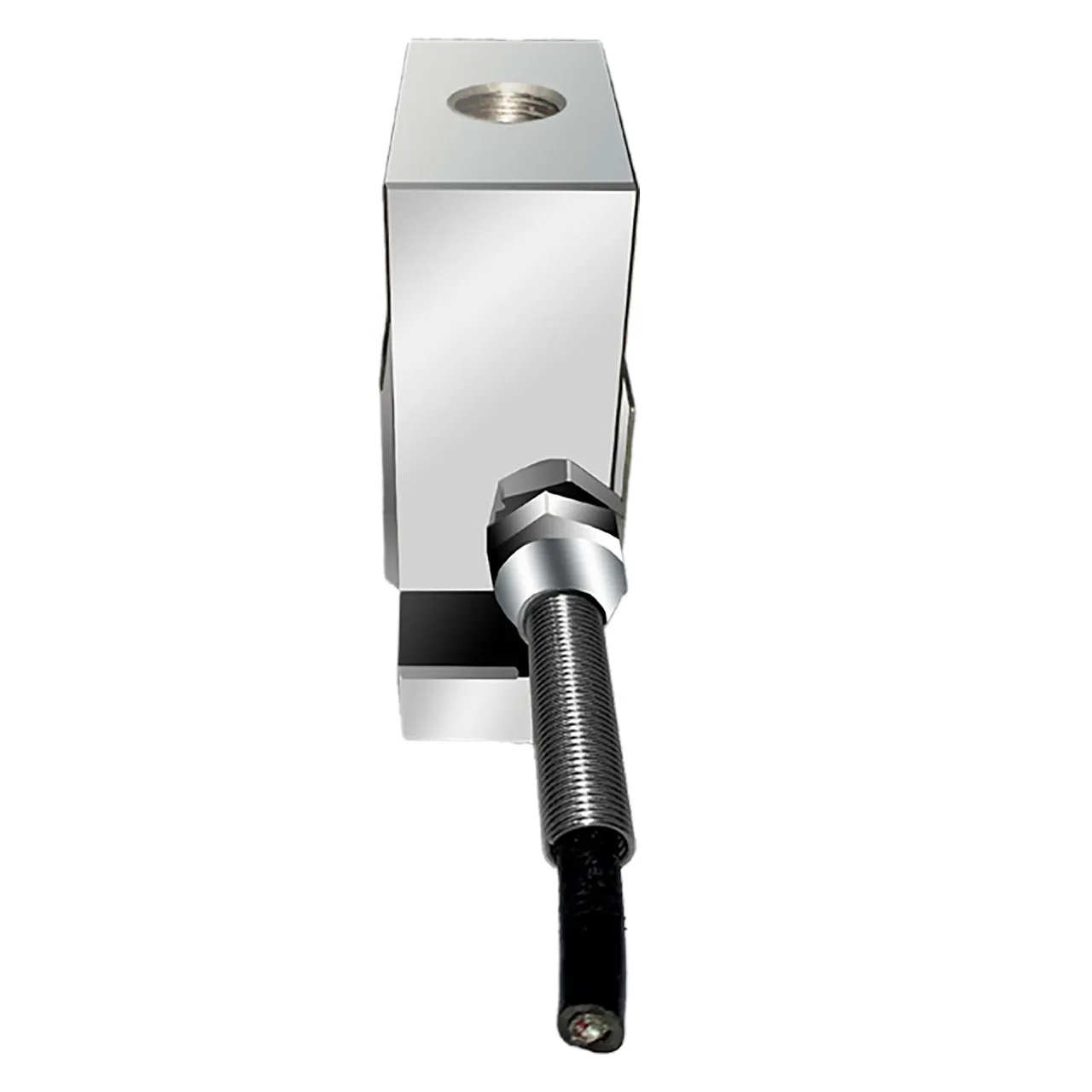

RES2 S-Beam Jr. Miniature Load Cell, Sensor Only, 1 KG Capacity, Calibrated in mV/V in Compression
Features
- Usable for Compression measurements or Tension measurements or Both (Universal)
- Rugged uni-body construction. Ideal for inline force measurement applications
- Threaded Mounting Holes on Each End of Load Cell. No need for additional adapters for most applications
- Capacity: 1 KG
- Includes: Sensor, mV/V Calibration & Certificate
Overview

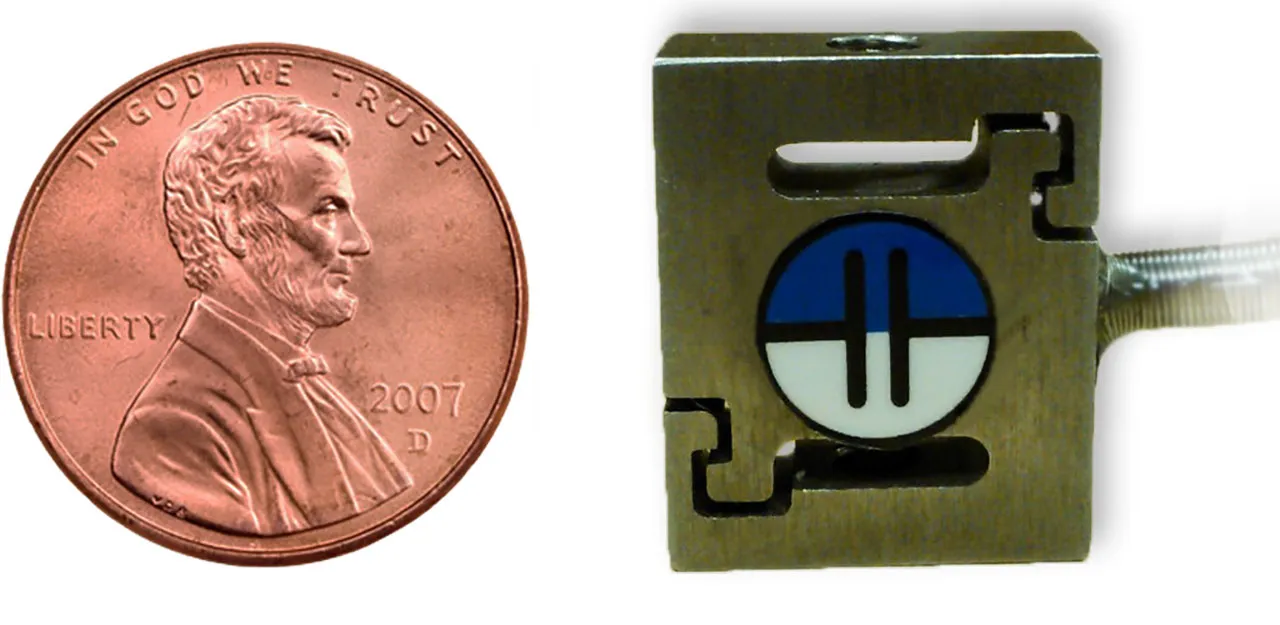

S-Beam Jr. load cell is a miniature S-Beam load cell that is ideal for compression, tension, and universal load measurement applications where space is limited. They are less than an inch wide, less than an inch high and only a quarter of an inch thick and have threaded holes on each end where you can fasten rod-ends or eye-bolts easily. Visit Loadstar Sensors for additional information.
Resources & Downloads
Product Identification
Product Type:S-Beam Jr. Load Cell
Additional Feature:Load Cell Only, Calibrated in mV/V in Compression
Dimensions & Appearance
Dimensions:19.1x17.5 mm
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Voltage:5V to 10V
Output
Output:mV/V
Features
Capacity:1 KG
Option:Compression, Tension, Universal
Number of Wires:4
Accuracy:0.5%
Sensor Type:Force
Technology:Resistive
Thread Size:M4
Connector Type:Pigtail
Material:Alloy Steel
