RES2 S-Beam Jr. Miniature Load Cell PLC Kit, 5 KG Capacity, AI-1000 Analog 0.5V to 4.5V DC Interface, Calibrated in Universal

Features

• Usable for Compression measurements or Tension measurements or Both (Universal)
• Rugged uni-body construction. Ideal for inline force measurement applications
• Threaded Mounting Holes on Each End of Load Cell. No need for additional adapters for most applications
• Capacity: 5 KG
• Output Type: 0.5 to 4.5 VDC

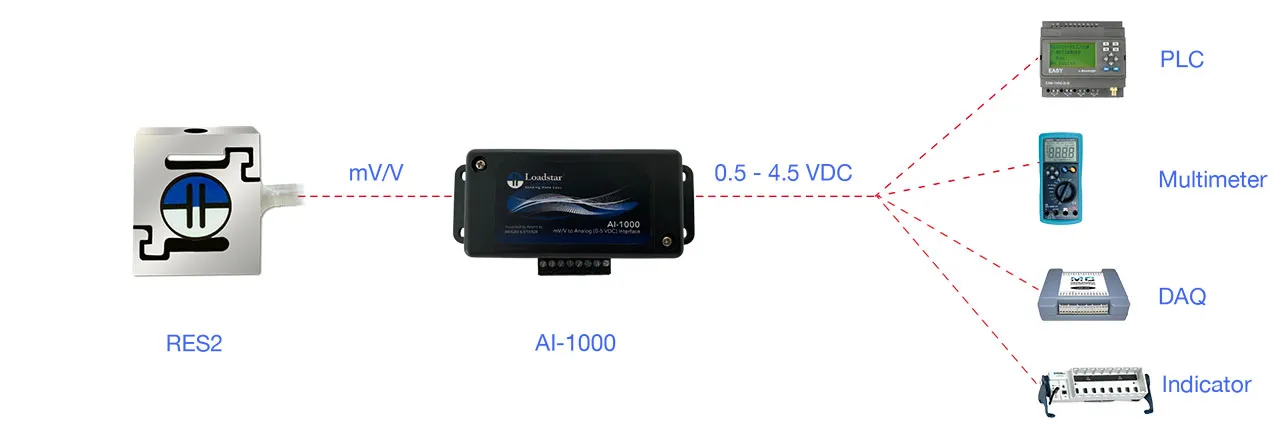

• PLC Kit Includes: Sensor, Interface, Power Supply, Calibration Certificate

Overview

S-Beam Jr. load cell is a miniature S-Beam load cell that is ideal for compression, tension, and universal load measurement applications where space is limited. They are less than an inch wide, less than an inch high and only a quarter of an inch thick and have threaded holes on each end where you can fasten rod-ends or eye-bolts easily. Visit Loadstar Sensors for additional information.

Click to Enlarge

Resources & Downloads

• Specsheet (PDF)
• PLC Kit Interface Specsheet (PDF)
• CAD (offsite)
