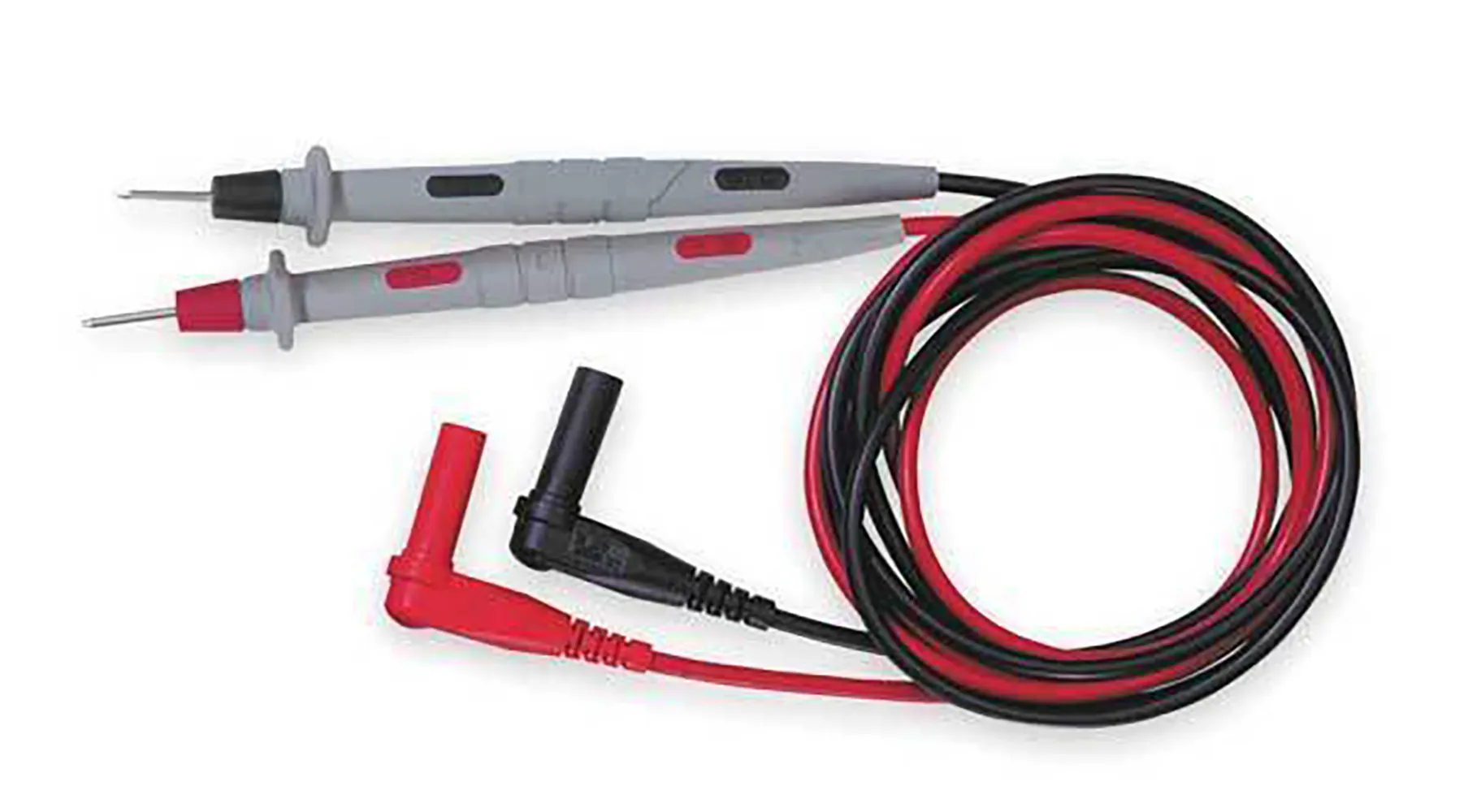

Replacement Test Lead Pair

Features

• Designed for Fluke, Amprobe, H-P, Tektronix and Wavetek DMM’s with 4mm sheathed banana plugs.
• Probe body incorporates a two-step mold process. First step is Polypropylene for probe rigidity. Second step is Santoprene® rubber for handling comfort, added insulation protection and wire strain relief.
• Probe body and banana plug are molded directly to the wire for robust pull strength.
• Wire is a high strand count silicone wire for extreme flexibility and high temperature resistance.
• Wear indication with dual extruded silicone leads shows white inner layer for increased safety.
• Stainless Steel tip features high conductivity for precision measurements.
• Banana plug spring is nickel-plated beryllium copper for long insertion life.

Specifications

• Stacking Method: Non Stackable
• Configuration: Banana to Test Probe
• 1st Connector: Banana Plug, Single, Sheathed, Right Angle
• 2nd Connector: Test Probe
• Cable Length: 48.0" (1219.20mm)
• Type: DMM Test Leads
• Contents: 2 Leads, Black and Red
• Material - Insulation: Silicone
• Wire Gauge: 18 AWG
• Voltage - Rated: 1000V (1kV)
• Ratings: CAT III 1000V
• Current Rating (Amps): 10A
