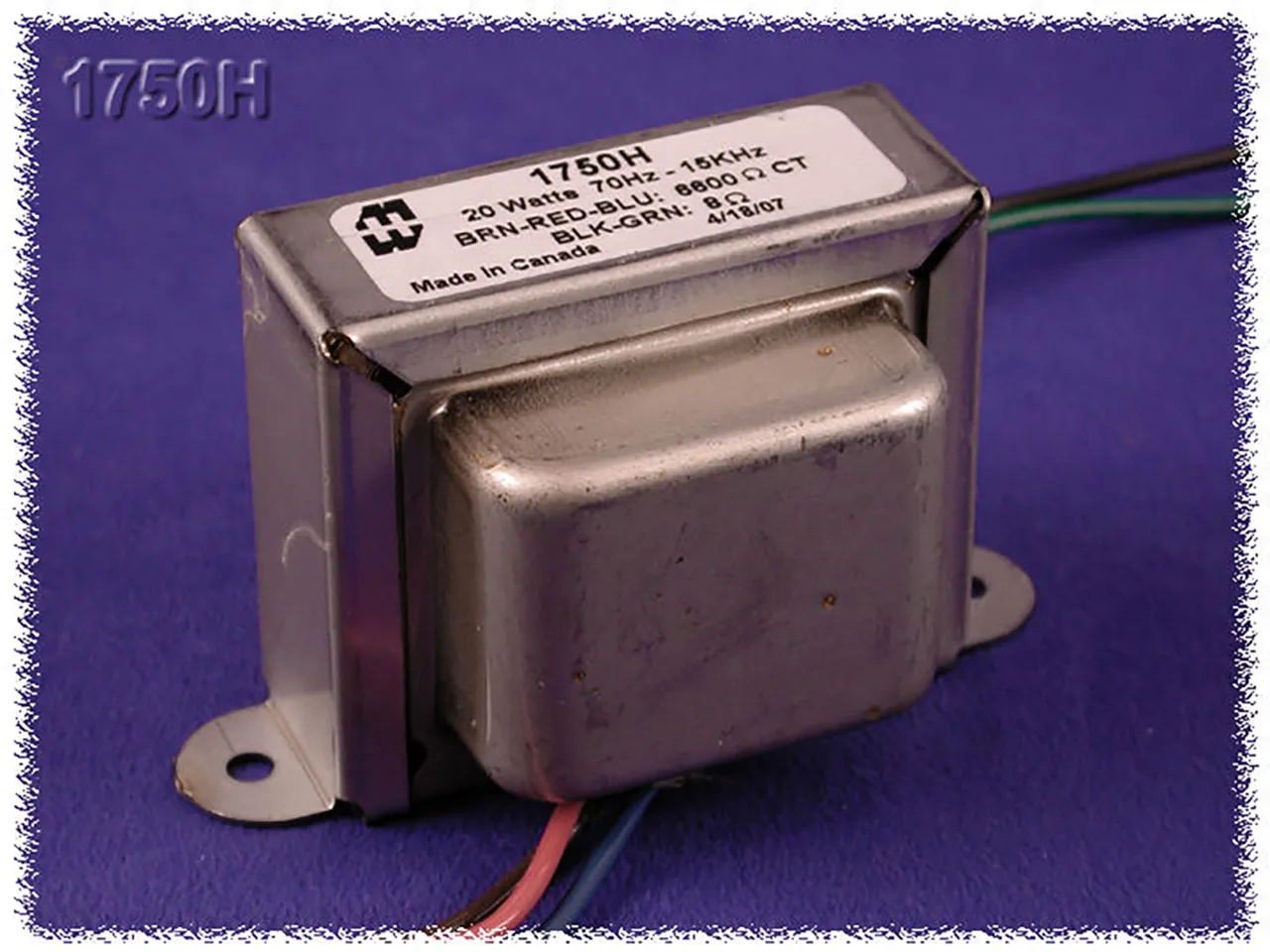

Replacement Output Audio Transformer for Fender Guitar Tube Amplifier Deluxe 68 Custom Reverb Deluxe Reverb 65 Reissue

Hammond Manufacturing

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$50.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$57.950	7.10	13.96%
10+	$53.950	3.10	6.1%
50+	$50.250	0.60	1.18%

Features

Primary Impedance (Ohms): 6,600 C.T.
Secondary Impedance (Ohms): 8
Amplifier Type: Push-Pull
Watts: 20
Winding Type: Paper
Original Amp Mfr: Fender
Amp Model Name(s) (Ref. Only): Deluxe*, Deluxe 68 Custom Reverb*, Deluxe Reverb 65 Reissue*
Similar to OEM Part Number (Ref. Only): 125A1A, 022640, 041318
OEM Chassis Number (Ref. Only): N/A
Material: N/A

Overview

*DISCLAIMER: Hammond Mfg. is not affiliated with Fender Musical Instruments Corp., Marshall Amplification, Yorkville/Traynor, AMPEG or VOX Amplification companies. Amplifier model names are trademarks of the Amplifier companies and are just listed here for reference purpose only.

Product Identification

Manufacturer Series:1750

Dimensions & Appearance

Mounting:Chassis

Height:2.308 in.

Width:2.4 in.

Length:3.71 in.

Features

Transformer Type:Audio Coupling Transformer

Secondary Impedance:8 Ohm

Turns Ratio:N/A

Primary Impedance:6,600 CT Ohm

Power Rating:20 W

Inductance:94.74 H
