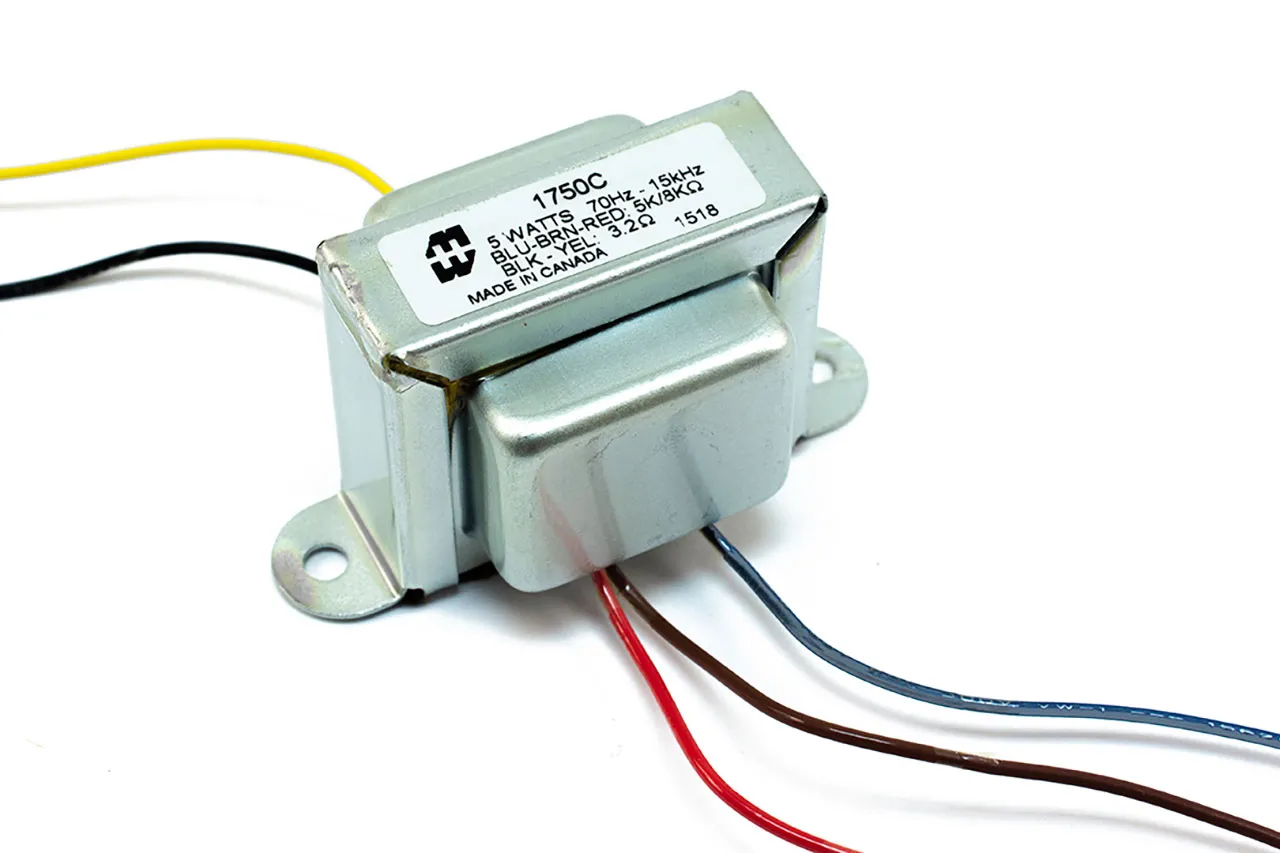

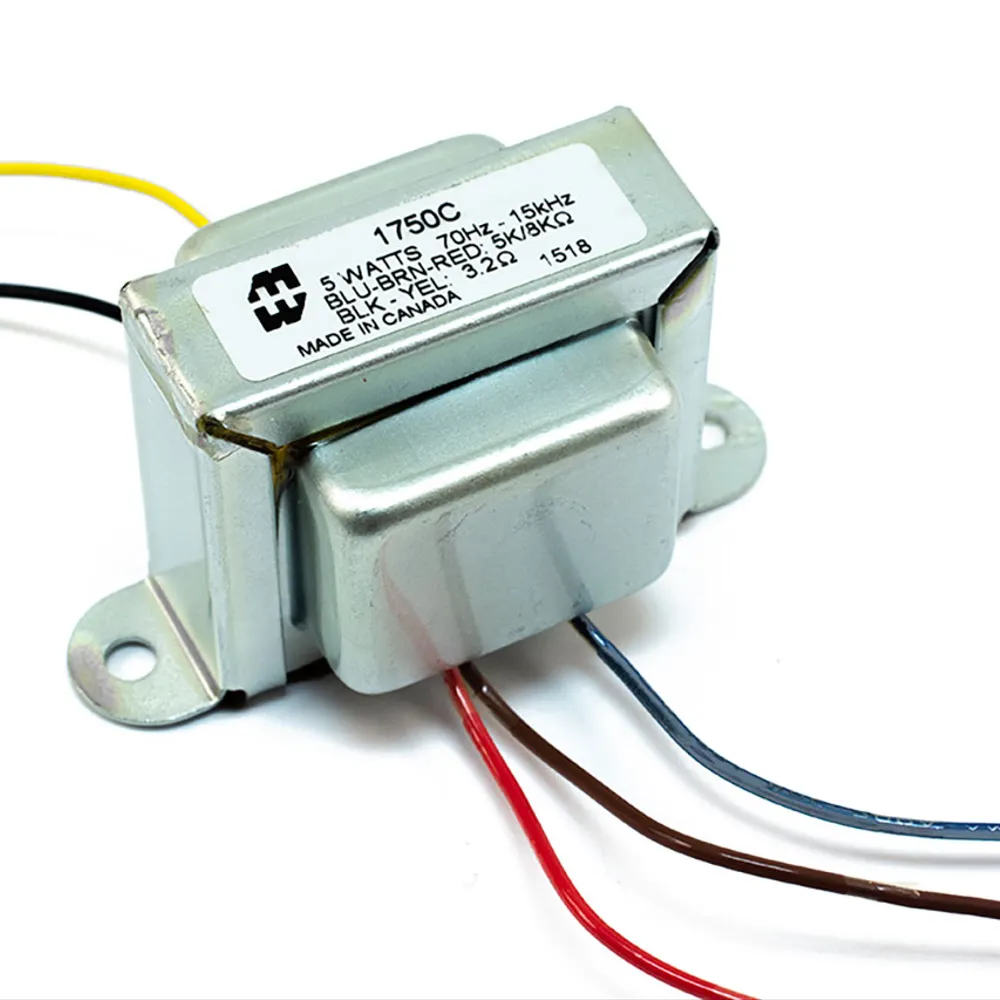

Replacement Output Audio Transformer for Fender Guitar Tube Amplifier 5K/8K Ohm Pri 3.2 Ohm Sec 5W

Hammond Manufacturing

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$38.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$44.450	5.60	14.41%
10+	$41.250	2.40	6.18%
50+	$38.450	0.40	1.03%

Features

Primary Impedance (Ohms): 5,000/8,000
Secondary Impedance (Ohms): 3.2
Amplifier Type: Single Ended
Watts: 5
Winding Type: Bobbin
Original Amp Mfr: Fender
Amp Model Name(s) (Ref. Only): Bronco* Champ* Princeton* Vibro Champ* Harvard*
Similar to OEM Part Number (Ref. Only): 125A35A, 022905, 125A3A
OEM Chassis Number (Ref. Only): Blackface*, Silverface*, AA764, AB764 Tweed*, 5C1, 5E1, 5F1, Vibro Blackface*
Material: N/A

Overview

*DISCLAIMER: Hammond Mfg. is not affiliated with Fender Musical Instruments Corp., Marshall Amplification, Yorkville/Traynor, AMPEG or VOX Amplification companies. Amplifier model names are trademarks of the Amplifier companies and are just listed here for reference purpose only.

Product Identification

Manufacturer Series:1750

Dimensions & Appearance

Width:1.56 in.

Height:1.683 in.

Length:2.813 in.

Mounting:Chassis

Features

Secondary Impedance:3.2 Ohm

Transformer Type:Audio Coupling Transformer

Primary Impedance:5,000/8,000 Ohm

Turns Ratio:N/A

Power Rating:5 W

Inductance:88.62 H
