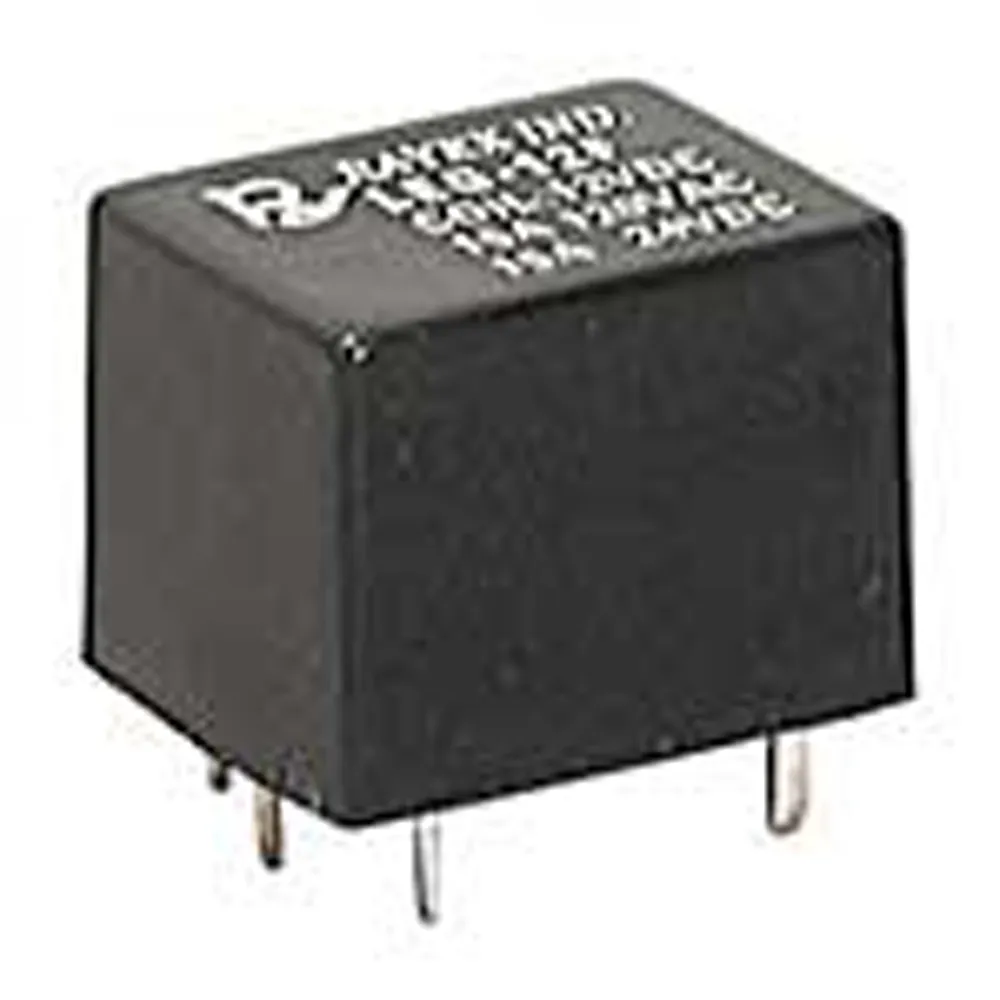

Small PC Mount Relay
Designed for the appliance and temperature control markets, these relays are also well suited for automotive load management.Features:
- Contact form: SPDT
- Coil voltage: 12VDC
- Coil resistance: 400Ω
- Contact voltage: 120VAC/24VDC
- Contact current: 15A
- Size: 0.76"L x 0.62"W x 0.60"H
- 5-pin package
- Mechanical life: 10 million operations
- Electrical life: 100,000 operations
- Dielectric strength: 1500Vrms (between contact and coil)
- Potter and Brumfield Cross Reference: T7CS5D12
Product Identification
Family:LEG-F
Dimensions & Appearance
Height:15 mm
Width:15.8 mm
Length:19.5 mm
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:85°C
Features
Pins:5
Minimum Dropout Voltage:1.2 VDC
Coil Voltage:12 VDC
Relay Construction:Non-Latching
Maximum Pick-Up Voltage:8.4 VDC
Operate Time:< 8 ms
Contact Voltage:120 VAC, 24 VDC
Contact Current:15 A
Contact Form:SPDT
Coil Resistance:400 Ohm
