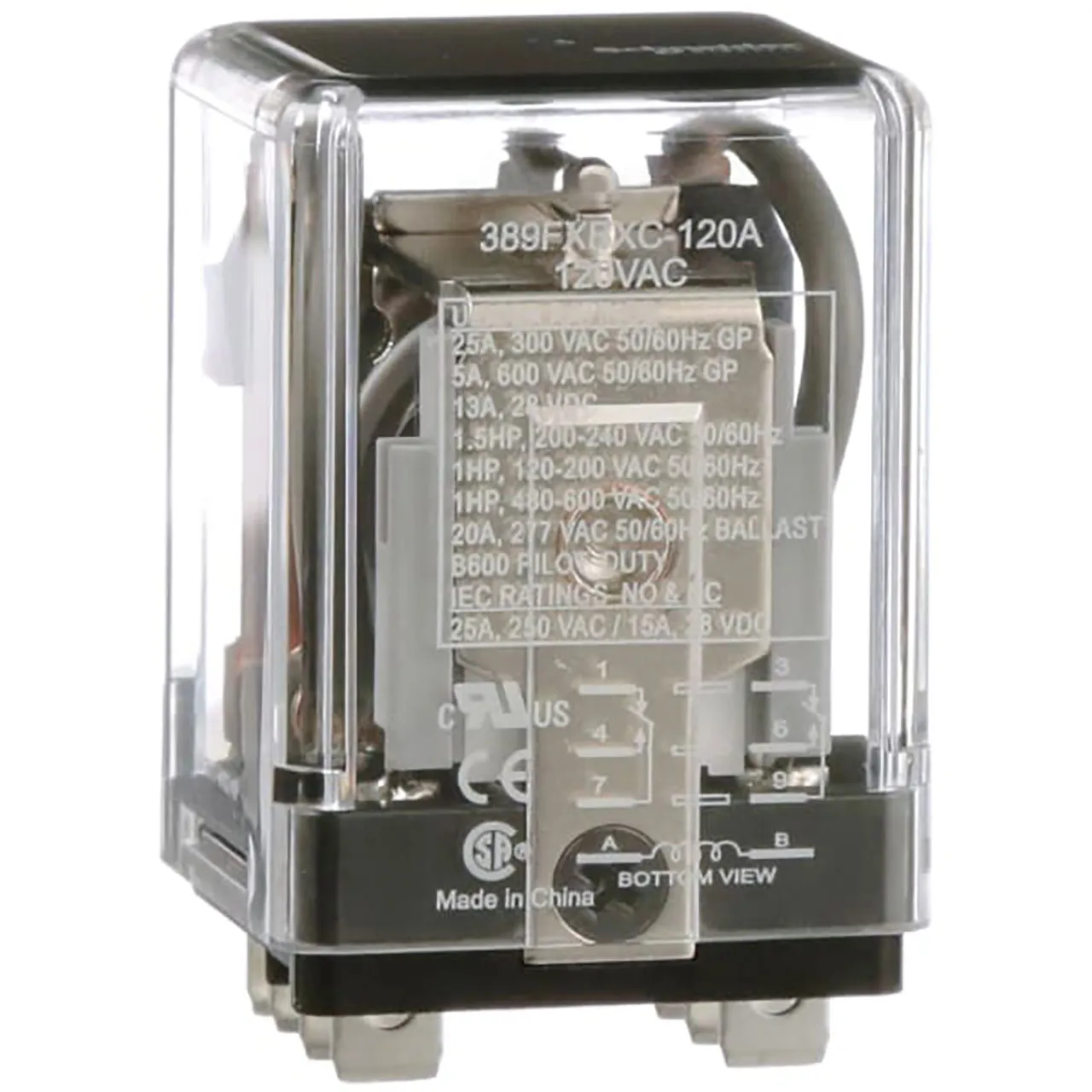

Relay General Purpose DPDT 25A Current Rating 120VAC Control Voltage 300VAC Voltage Rating Socket Mount

Features

  • Product Type: Power Relays
  • Harmonized Code: 8538.90.9000
  • ECCN: EAR99
  • Series: SE
  • Mounting Type: Socketable
  • Coil Voltage: 120 VAC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 25 A
  • Switching Voltage: 600VAC - Max
  • Load - Max Switching: 15000VA
  • Coil Current: 70.6 mA
  • Coil Type: Non Latching
  • Features: N/A
  • Termination Style: Plug In, Quick Connect - 0.250" (6.3mm)
  • Seal Rating: N/A
  • Coil Insulation: N/A
  • Must Operate Voltage: 102 VAC
  • Must Release Voltage: 12 VAC
  • Operate Time: N/A
  • Release Time: N/A
  • Operating Temperature: -30°C ~ 55°C
  • Contact Material: Silver Alloy
  • Approval Agency: CE, CSA, cURus
  • Relay Type: General Purpose
  • Grade: N/A
  • Qualification: N/A

Overview

Relay, General Purpose, DPDT, 25A Current Rating, 120VAC Control Voltage, 300VAC Voltage Rating, Socket Mount.

Product Identification

Additional Feature:N/A
Product Type:General Purpose
Manufacturer Series:SE

Dimensions & Appearance

Mounting Type:Socketable

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:55°C

Features

Coil Type:Non Latching
Contact Form:DPDT (2 Form C)
Termination:Plug In, Quick Connect - 0.250" (6.3mm)
Coil Voltage:120 VAC
Configuration:Socket Mount
Contact Rating:25 A
,
