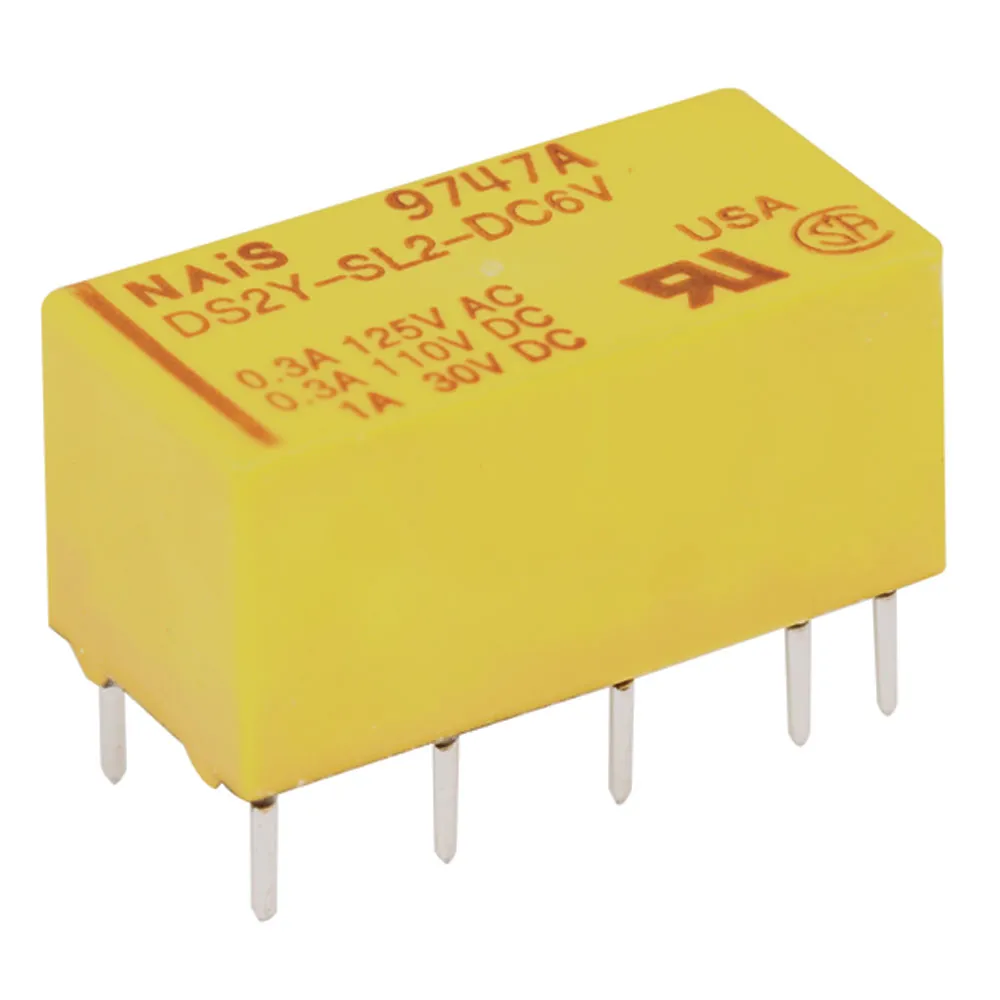

Miniature Latching Relay
Use this switch to electrically turn on and off any section of your circuit. Its small design allows it to be placed in the most compact boards, while consuming low power in order to operate
Features:
- 2 Form C contact
- High sensitivity-200 mW nominal operating power
- High breakdown voltage
- DIP-2C type matching 16 pin IC socket
- Latching
- Sealed construction
- 20mm L x 9.9mm W x 9.3mm H
Product Identification
Family:DS2Y
Compliance
RoHS Status:Undefined
Dimensions & Appearance
Length:20 mm
Height:9.3 mm
Width:9.9 mm
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Features
Relay Construction:Latching, Double Coil
Minimum Dropout Voltage:0.6 VDC
Coil Voltage:6 VDC
Maximum Pick-Up Voltage:4.2 VDC
Pins:10
Operate Time:4 ms
Contact Current:2 A
Contact Voltage:250 VAC, 220 VDC
Coil Resistance:200 Ohm
Contact Form:DPDT
