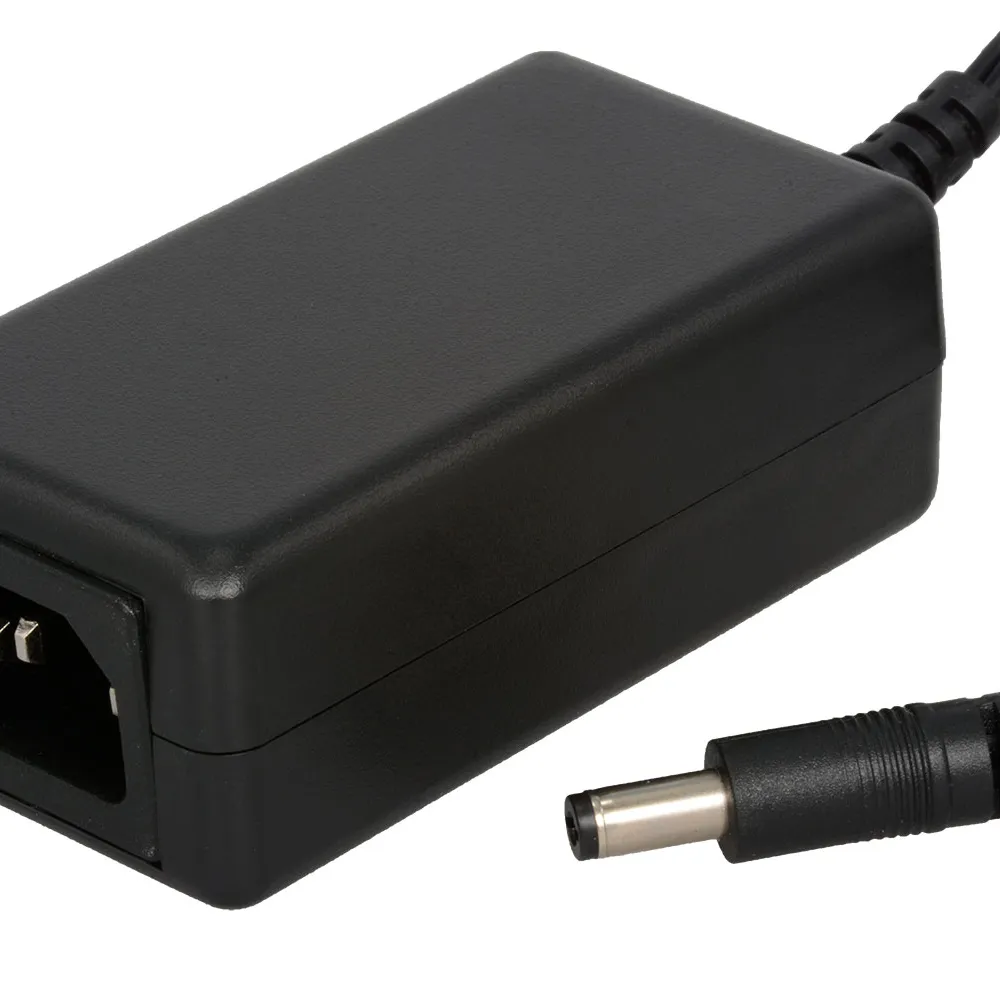

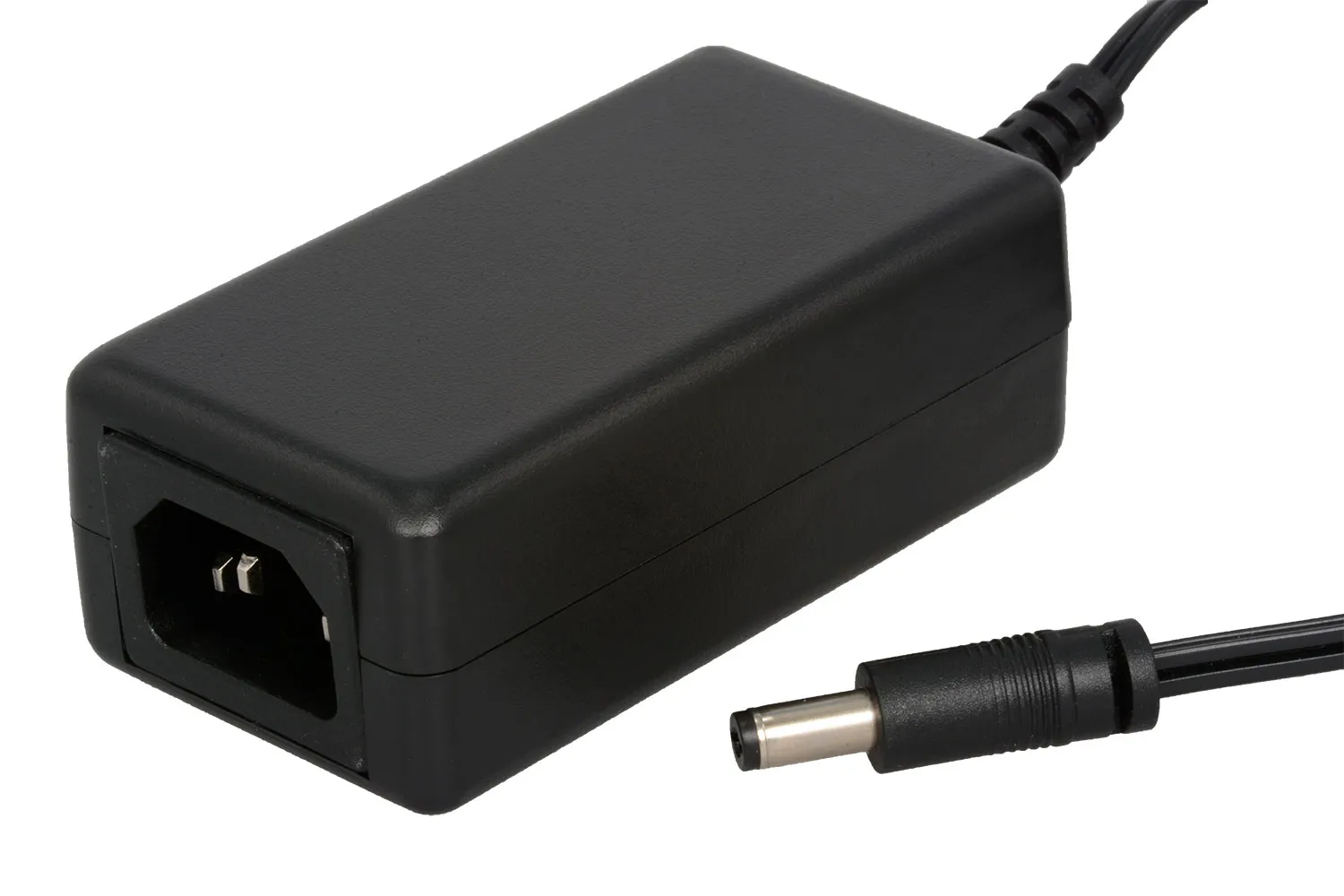

3-Wire Regulated AC-to-DC Switching Table-Top Power Supply
5 Volts @ 2 AmpsFeatures:
- Output connector: 2.1mm x 5.5mm straight female center positive
- Input: 90-264VAC @ 47-63Hz
- Size: 3.4"L x 1.9"W x 1.3"H
- Weight: 0.4 lbs.
- Case color: Black
- DC output cord length: 6 feet
- AC input cord not included (Recommended: 3-conductor AC power cord, p/n: 2271575)
- Agency approvals: UL/CUL/TUV/CE
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:TR9C
Compliance
Agency Approvals: CE, CUL, TUV, UL
Dimensions & Appearance
Style:Desktop
Height:1.3 in.
Width:1.9 in.
Length:3.4 in.
Operating conditions
Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.5 A
Output
Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:5 VDC
Output Connector Type:Cylindrical Female
Additional Output Voltages (VDC):N/A
Output Current:2 A
Features
Polarity:Center Positive
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:75%
IP Rating:N/A
Power Rating:10 W
