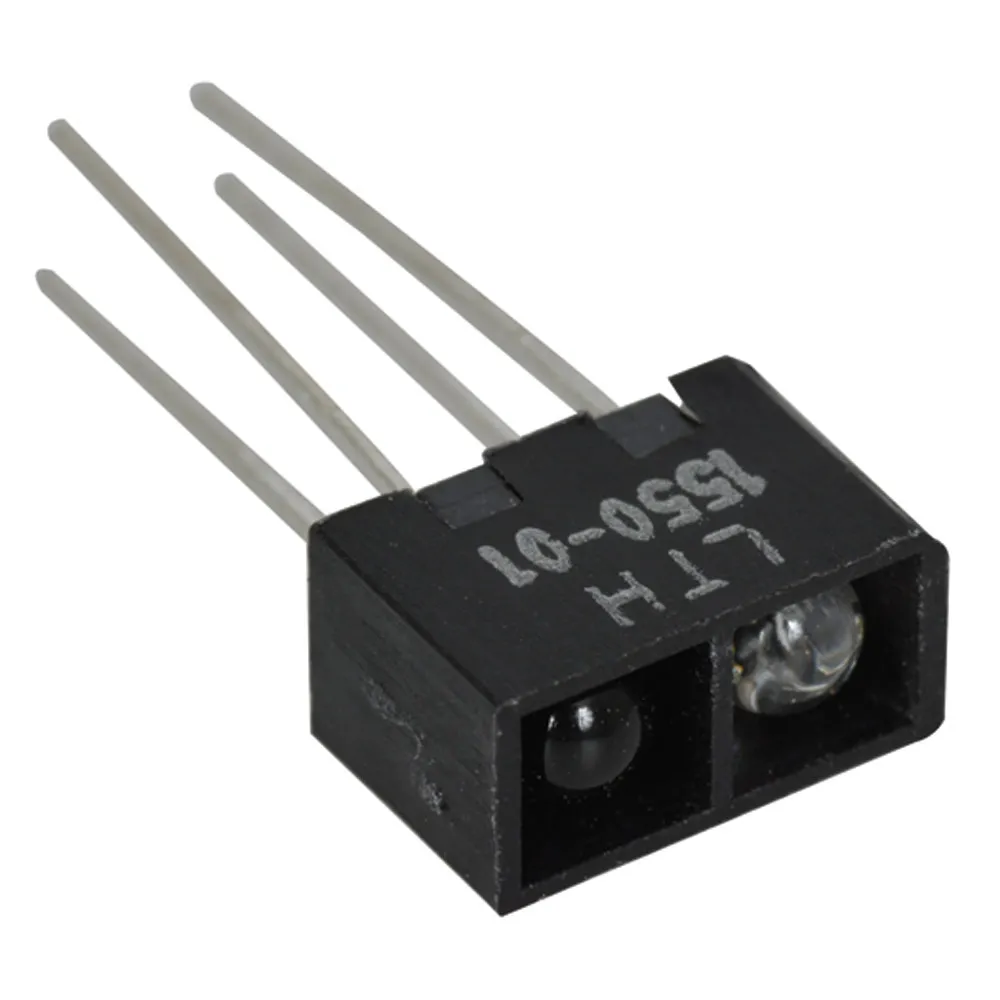

Reflective Phototransistor

Features

  • Non-contact switching
  • Fast switching speed
  • For direct PC board or dual-in-line socket mounting
  • 4-pin

    Specifications

  • Maximum Reverse Voltage: 5V
  • Operating Temperature: -25 ° C to +85 ° C
  • Dimensions: 8.7mm (L) x 4.5mm (W) x 5.6mm (H)
  • Maximum power dissipation for input diode: 90mW
  • Maximum power dissipation for output phototransistor: 100mW
  • Maximum forward current: 1A
  • Maximum collector current: 20mA
  • Maximum collector-emitter voltage: 30V
  • Maximum emitter-collector voltage: 5V

    • ,
