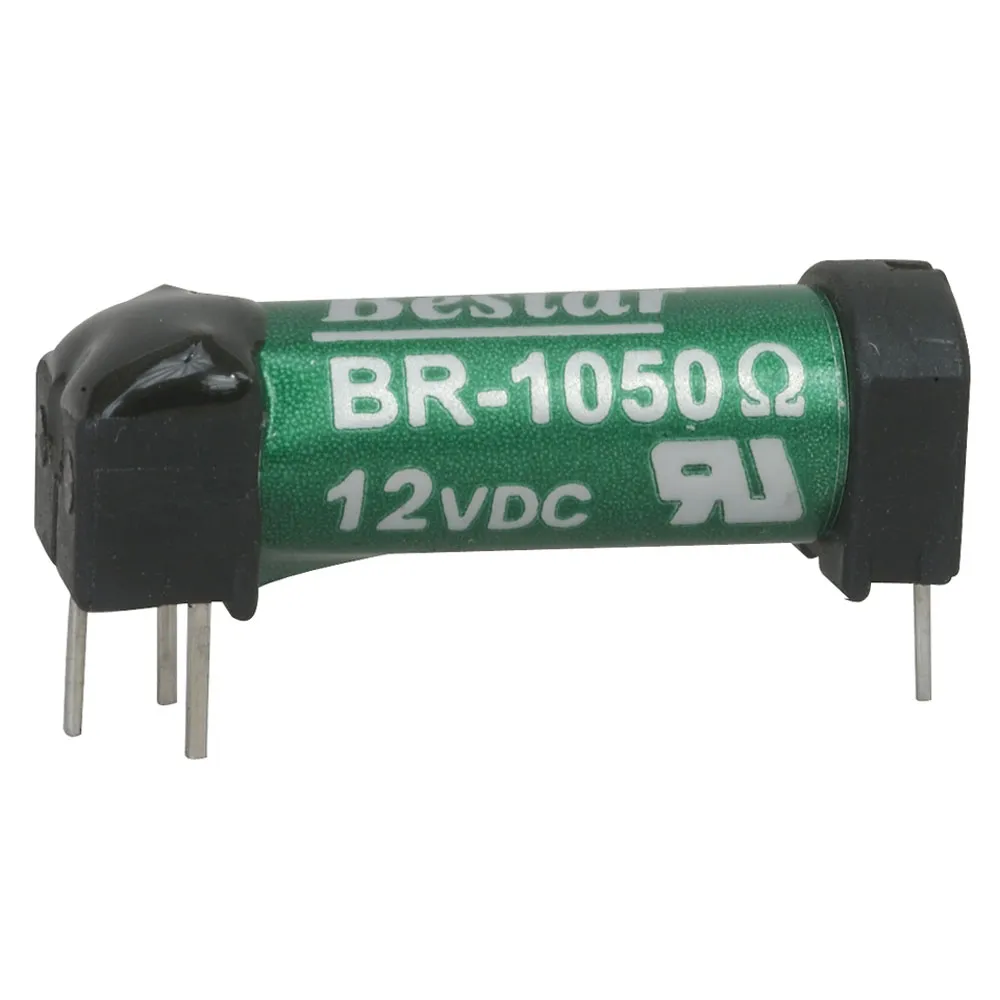

Reed Type Relays

  • Dielectric strength: 1500 VDC (between contact and coil)
  • Operating temperature: -30°C to +60°C
  • Normally open (NO)
  • Coil voltage: 12VDC
  • Contact Form: SPST
  • Coil: 1050Ω
  • Contact Voltage: 250VAC/150VDC
  • Contact Current: 0.1A
  • Pins: 4
  • Terminal Type: PCB solder
  • Size: 1.0" L x .37"W x .38"H

    • Dimensions & Appearance

    Height:0.38 in.
    Width:0.37 in.
    Length:1 in.

    Features

    Pins:4
    Coil Voltage:12 VDC
    Relay Construction:Non-Latching
    Current Rating:0.1 A
    Contact Form:SPST-NO
    Coil Resistance:1050 Ohm
    Voltage Rating:60 VDC
    ,
