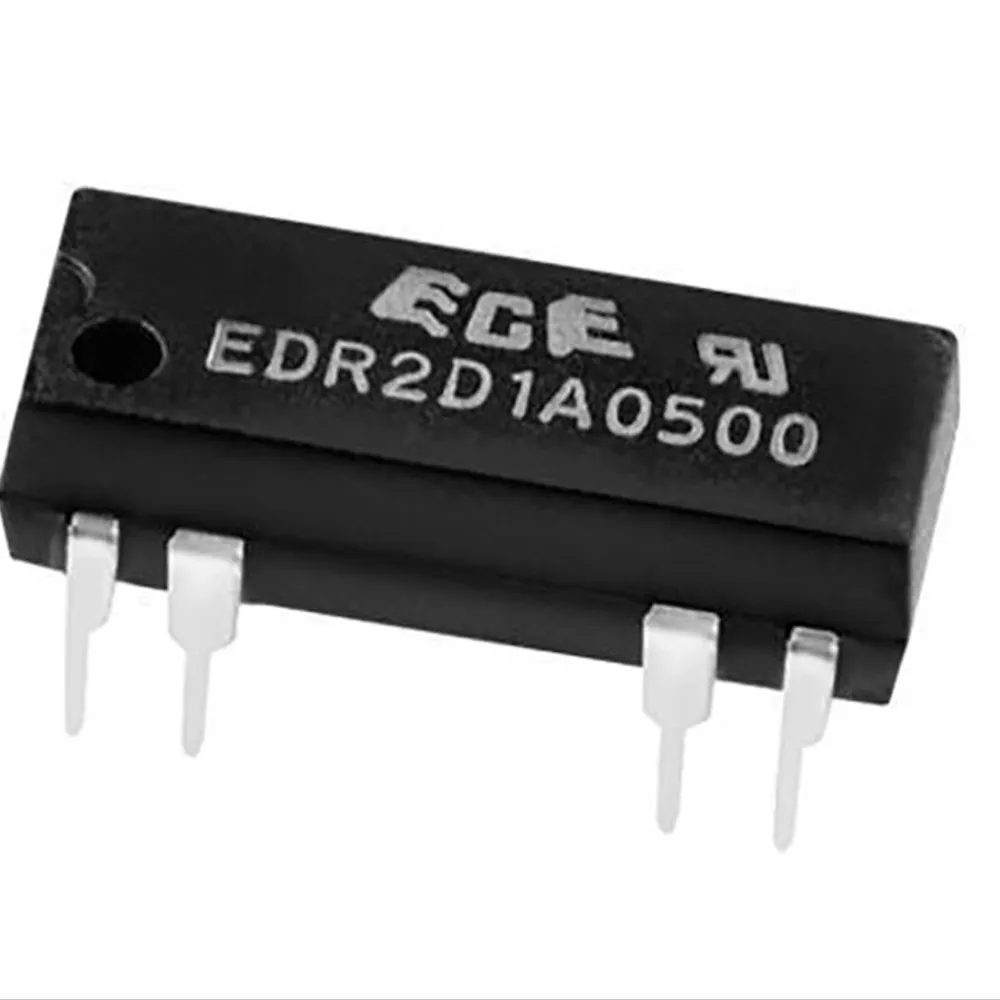

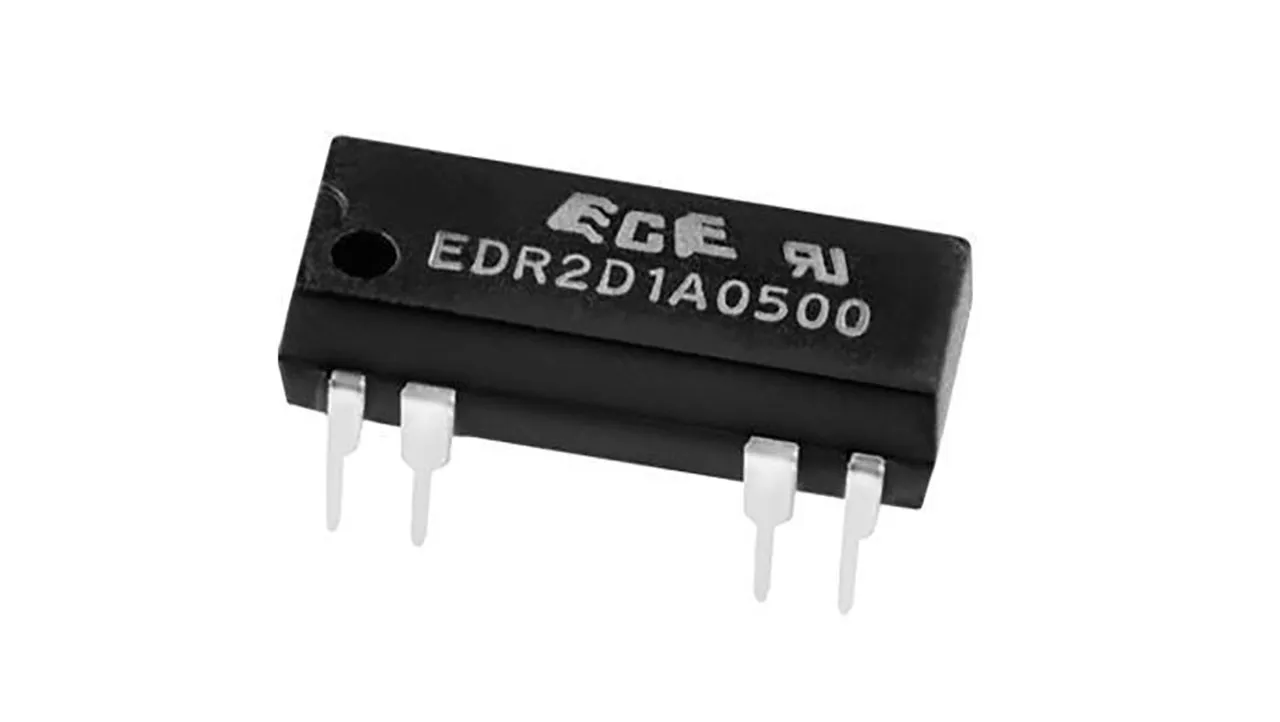

Reed Relay SPST-NO 1 Form A 12VDC 1A DIP-8
Features
- Miniature, cost-effective switching solution
- Molded construction for compatibility with automatic board processing
- Completely washable
- Dip type construction with the same terminal pitch as ICs or TTLs
- The high sensitivity allows direct driving by TTL, etc.
Dimensions & Appearance
Height:0.22 in.
Width:0.3 in.
Length:0.78 in.
Features
Contact Voltage:10 VA
Pins:8
Coil Voltage:12 VDC
Contact Current:1 A
Contact Form:SPST-NO
Coil Resistance:1000 Ohm
